NSN 3020-01-425-9557 3TDF147E, 3TDF-147-E, 01-425-9557
Product Details | CABLE CHAIN
3020-01-425-9557 A flexible mechanical device consisting of one or more rows of cast or stamped links without side plates or rollers. The links may be replacable by splicing. Excludes metallic chains and belts.
Part Alternates: 3TDF147E, 3TDF-147-E, 3020-01-425-9557, 01-425-9557, 3020014259557, 014259557
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 MAR 1996 | 01-425-9557 | 38128 ( CHAIN, CABLE ) |
Drawings & Photos | NSN 3020-01-425-9557
Cross Reference | NSN 3020-01-425-9557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3TDF-147-E | 29440 | W. M. BERG INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-425-9557
Related Products | NSN 3020-01-425-9557
Technical Data | NSN 3020-01-425-9557
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYURETHANE |

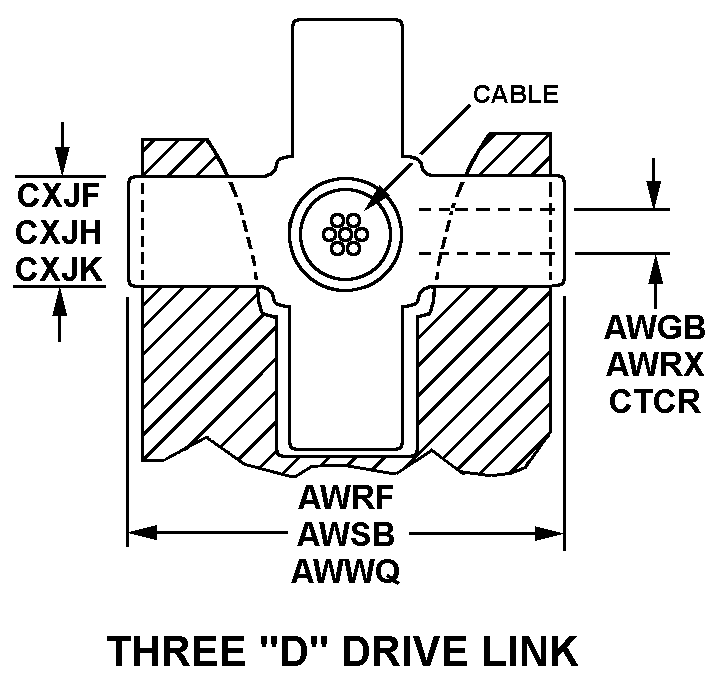

| FIRST CHAIN LINK STYLE | J4 THREE "D" DRIVE LINK |
| FIRST CHAIN LINK PIN NOMINAL DIAMETER | 0.0840 INCHES |
| FIRST CHAIN LINK NOMINAL WIDTH | 0.2030 INCHES |
| FIRST CHAIN LINK JACKET DIAMETER | 0.0840 INCHES |
| LINK ROW QUANTITY | 1 |
| BREAKING STRENGTH | 50.0 POUNDS NOMINAL |
| EFFECTIVE LENGTH | 23.0790 INCHES NOMINAL |
| SPECIAL FEATURES | CIRCULAR PITCH 0.1570 IN., HARDNESS 90A DURO, COLOR GREEN WITH 1/32 IN. DIA ST. STEEL CABLE CORE |
