NSN 3020-01-458-7528 7011554039, 701-1554039, 701-1554039 P/N 39
Product Details | BEVEL GEAR SECTOR
3020-01-458-7528 A gear sector with complements of bevel gear teeth.
Part Alternates: 7011554039, 701-1554039, 701-1554039 P/N 39, 7011554039PN39, 7031554055, 703-1554055, 703-1554055 P/N 16, 7031554055PN16, 3020-01-458-7528, 01-458-7528, 3020014587528, 014587528
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 SEP 1998 | 01-458-7528 | 28375 ( GEAR SECTOR, BEVEL ) |
Drawings & Photos | NSN 3020-01-458-7528
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-458-7528
Technical Data | NSN 3020-01-458-7528
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-16522 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 16 |
| TEETH TYPE | CONCAVE |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PITCH ANGLE | 7.0000 DEGREES |

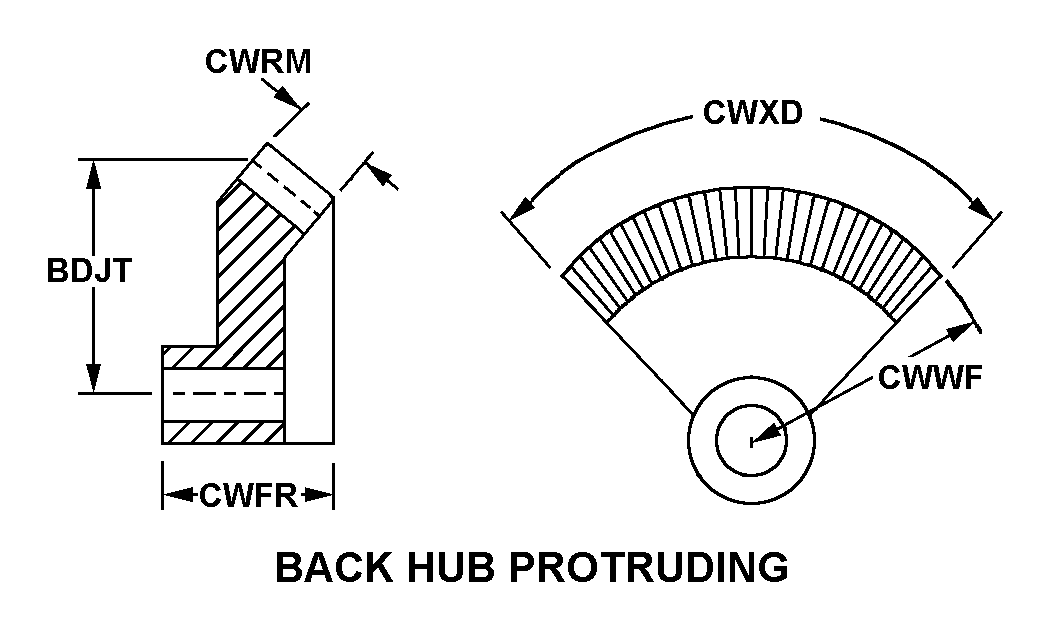

| STYLE DESIGNATOR | 69 BACK HUB PROTRUDING |
| PITCH DIAMETER | 14.0000 INCHES NOMINAL |
| PITCH RADIUS | 4.0000 INCHES NOMINAL |
| PITCH HEIGHT | 7.1410 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 2.250 INCHES |
| FACE NOMINAL WIDTH | 1.812 INCHES |
| NOMINAL OUTSIDE RADIUS | 6.000 INCHES |
| ARC NOMINAL LENGTH | 10.937 INCHES |
| III END ITEM IDENTIFICATION | ACFT CARRIER CVA(N)65 |
Restrictions/Controls & Freight Information | NSN 3020-01-458-7528
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3020-01-458-7528
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
