Product Details | SPUR GEAR SECTOR
3020-01-469-9747 A gear sector with complements of spur gear teeth.
Part Alternates: 124-4322651 PC 37 X 38, 1244322651PC37X38, 124-4322652 PC 37 X 38, 1244322652PC37X38, 124-5200227 PC 15 X 16, 1245200227PC15X16, 4322651, 4322652, 5200227, 3020-01-469-9747, 01-469-9747, 3020014699747, 014699747
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 02 DEC 1999 | 01-469-9747 | 28377 ( GEAR SECTOR, SPUR ) |
Drawings & Photos | NSN 3020-01-469-9747
Demand History | NSN 3020-01-469-9747
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-469-9747 | 2022-07-207 | 1 | DIBBS |
| 3020-01-469-9747 | 2017-04-100 | 2 | DIBBS |
| 3020-01-469-9747 | 2017-03-64 | 2 | DIBBS |
| 3020-01-469-9747 | 2017-02-48 | 2 | DIBBS |
| 3020-01-469-9747 | 2017-02-37 | 2 | DIBBS |
| 3020-01-469-9747 | 2016-09-269 | 2 | DIBBS |
| 3020-01-469-9747 | 2016-05-127 | 1 | DIBBS-RFPs |
| 3020-01-469-9747 | 2016-02-52 | 7 | DIBBS |
| 3020-01-469-9747 | 2015-09-252 | 4 | DIBBS |
| 3020-01-469-9747 | 2015-09-244 | 8 | DIBBS |
| 3020-01-469-9747 | 2015-08-238 | 4 | DIBBS |
| 3020-01-469-9747 | 2015-07-209 | 8 | DIBBS |
| 3020-01-469-9747 | 2014-11-328 | 26 | DIBBS |
| 3020-01-469-9747 | 2014-11-315 | 26 | DIBBS |
| 3020-01-469-9747 | 2014-11-308 | 5 | DIBBS |
| 3020-01-469-9747 | 2014-10-302 | 26 | DIBBS |
| 3020-01-469-9747 | 2014-08-230 | 5 | DIBBS |
| 3020-01-469-9747 | 2014-03-78 | 1 | DIBBS |
| 3020-01-469-9747 | 2014-03-78 | 4 | DIBBS |
| 3020-01-469-9747 | 2013-09-267 | 4 | DIBBS |
Cross Reference | NSN 3020-01-469-9747
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124-4322651 PC 37 X 38 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 124-4322652 PC 37 X 38 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 124-5200227 PC 15 X 16 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 4322651 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 4322652 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5200227 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-469-9747
Related Products | NSN 3020-01-469-9747
Technical Data | NSN 3020-01-469-9747
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-22698 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 115 |
| TOOTH FORM | STUB |
| PRESSURE ANGLE | 20.0000 DEGREES |

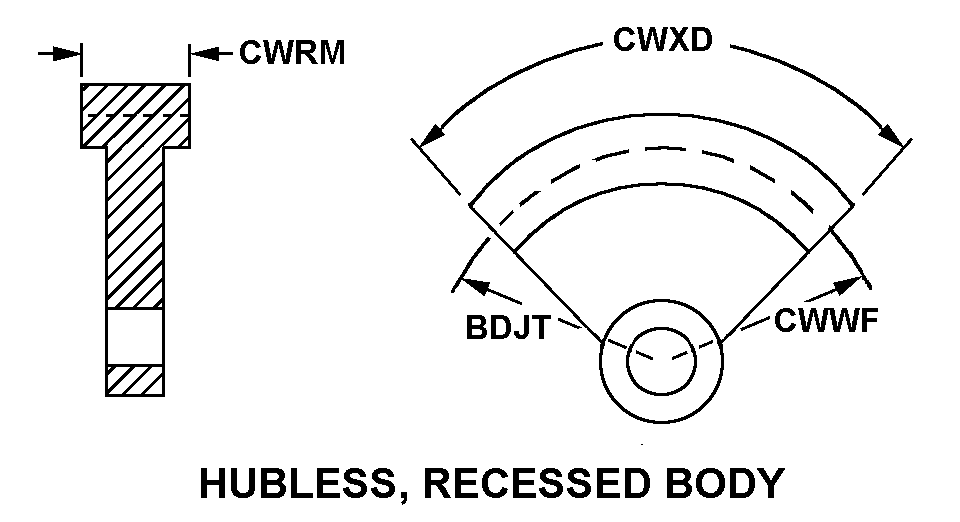

| STYLE DESIGNATOR | 63 HUBLESS, RECESSED BODY |
| PITCH RADIUS | 7.1875 INCHES NOMINAL |
| FACE NOMINAL WIDTH | 1.000 INCHES |
| NOMINAL OUTSIDE RADIUS | 7.2875 INCHES |
| ATTACHMENT METHOD | SETSCREWS |
| SPECIAL FEATURES | ITEM IS DOG WELDED TO DOG GEAR SECTOR; MATERIAL FOR DOG IS STEEL ALLOY IAW QQ-S-624 AISI GRADE 4320; DIAMETRAL PITCH IS 8; 14.375 IN. PITCH DIAMETER; 14.575 IN. OUTSIDE DIAMETER; 14.125 IN. ROOT DIAMETER; NHA SCUTTLE BALLISTIC |
| III END ITEM IDENTIFICATION | NIMITZ CLASS CVN |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DOG AND DOG GEAR ASSEMBLY |
