NSN 3020-01-543-3743 9N6611, 01-543-3743, 015433743
Product Details | CONE PULLEY
3020-01-543-3743 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 9N6611, 3020-01-543-3743, 01-543-3743, 3020015433743, 015433743
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 SEP 2006 | 01-543-3743 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-01-543-3743
Cross Reference | NSN 3020-01-543-3743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9N6611 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-543-3743
Technical Data | NSN 3020-01-543-3743
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 2 |
| LARGE END OUTSIDE DIAMETER | 414.8 MILLIMETERS NOMINAL |

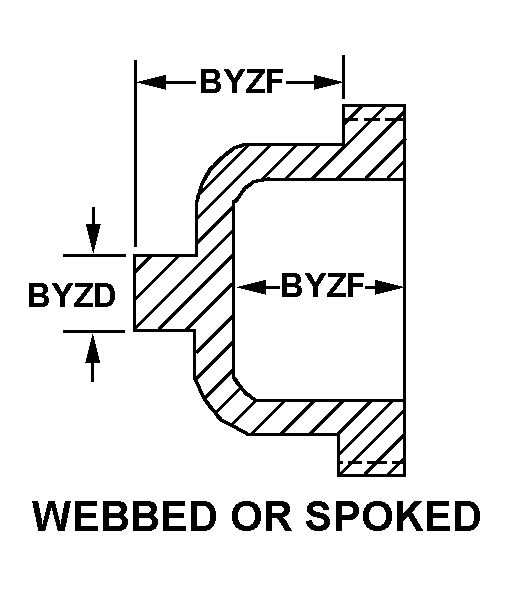

| STYLE DESIGNATOR | E19 WEBBED OR SPOKED |
| SPECIAL FEATURES | BOLT ON PULLEY |
Restrictions/Controls & Freight Information | NSN 3020-01-543-3743
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
