Product Details | V BELT

3030-01-242-6377 00001013030000000

Part Alternates: 12357209, 2/C63, 2C63, 81780016, 8178-0016, 81780021, 3030-01-242-6377, 01-242-6377, 3030012426377, 012426377

Mechanical Power Transmission Equipment | Belting, Drive Belts, Fan Belts, and Accessories

Supply Group (FSG) NSN Assign. NIIN
30 15 OCT 1986 01-242-6377

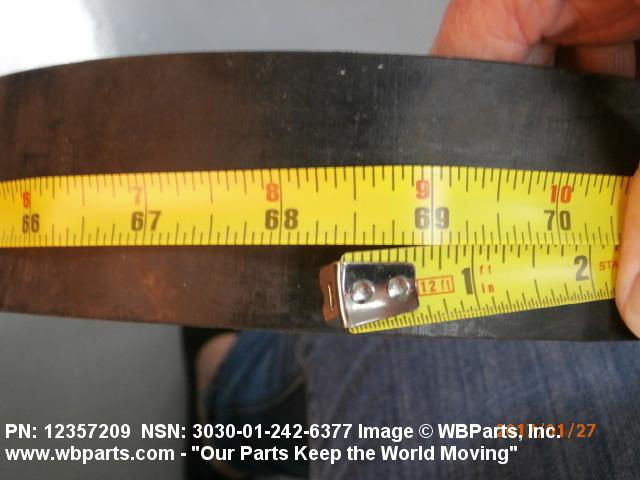

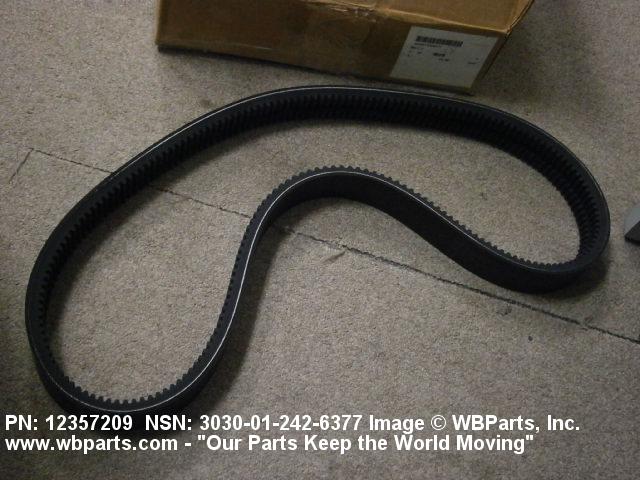

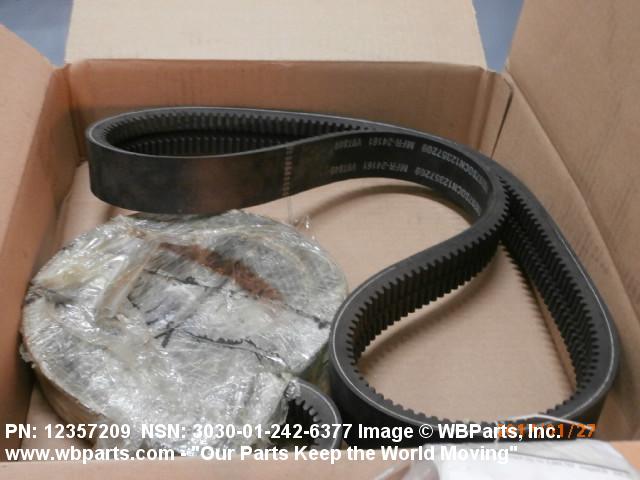

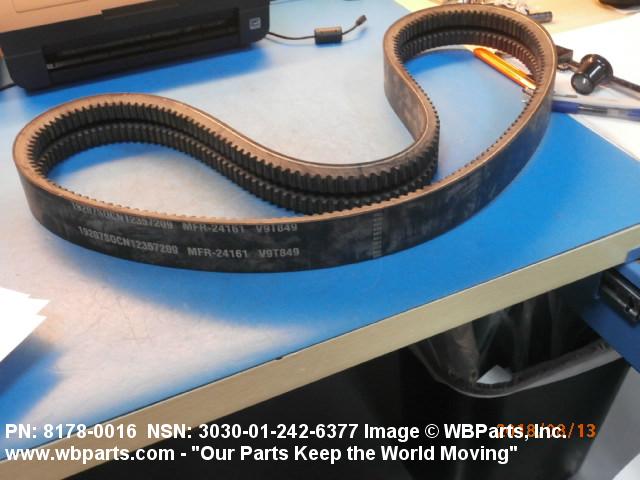

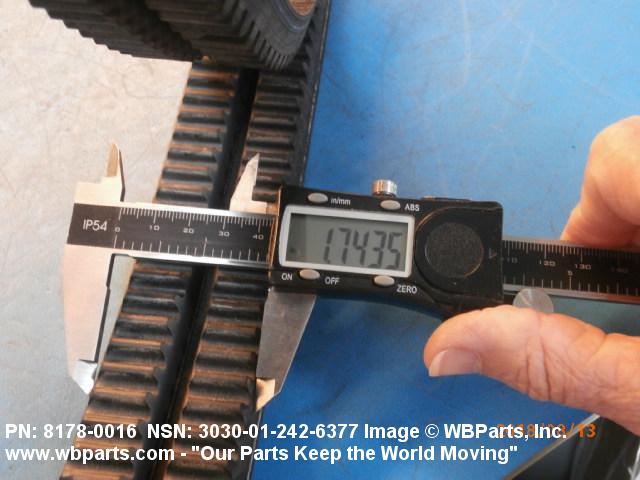

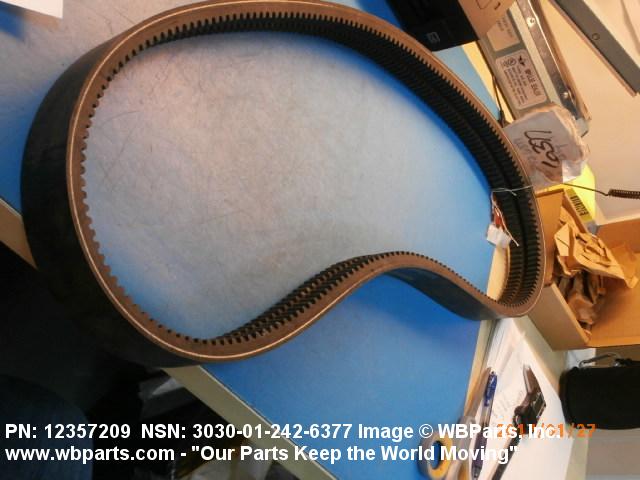

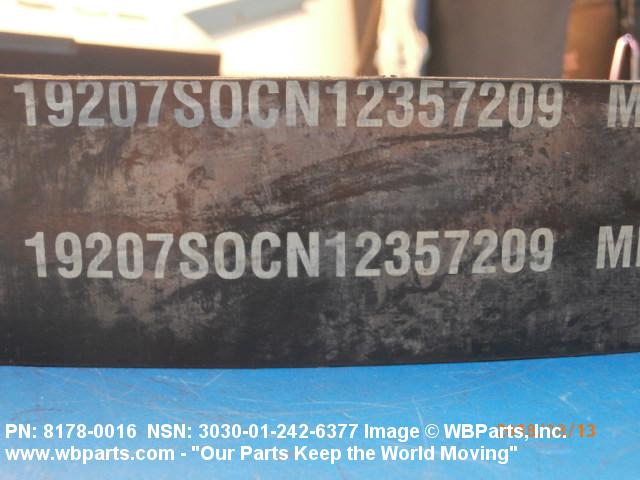

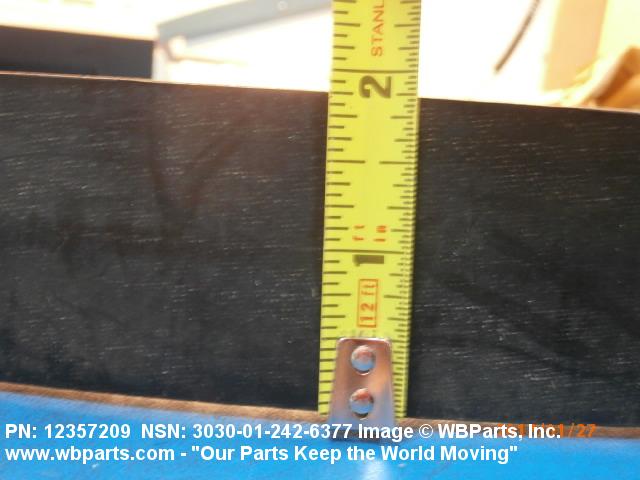

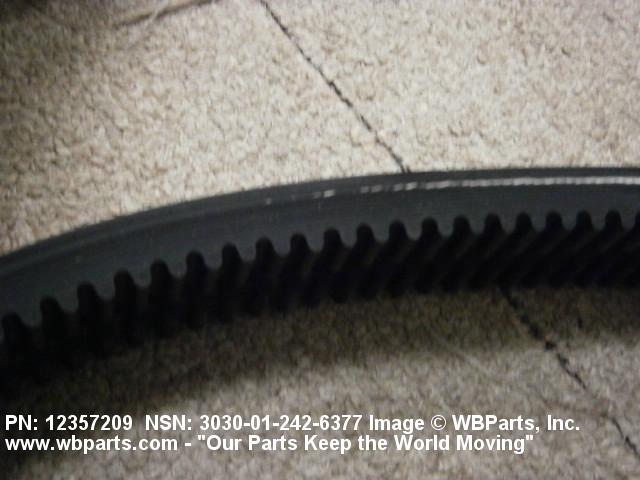

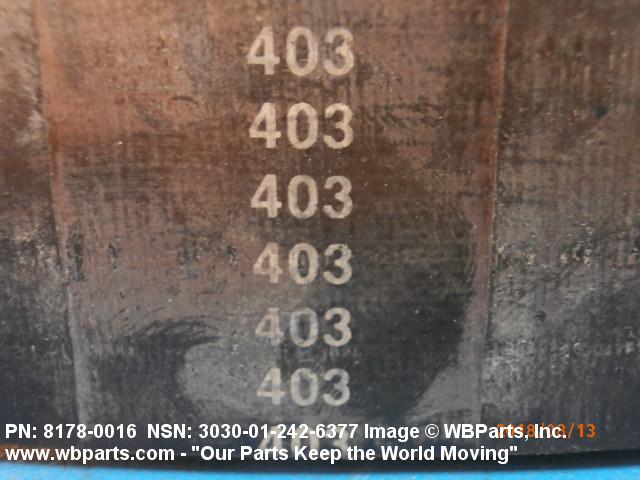

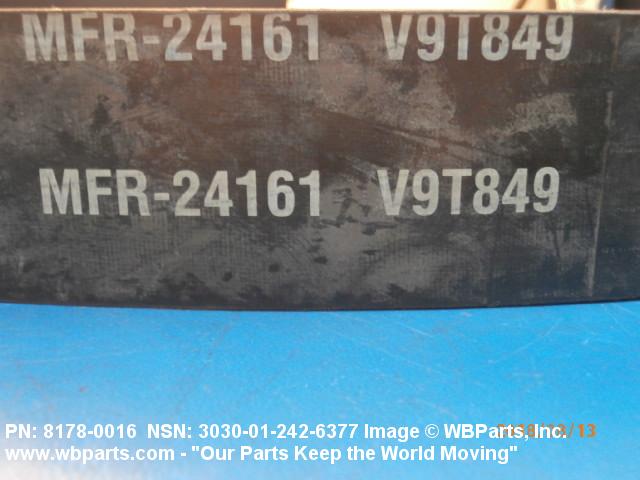

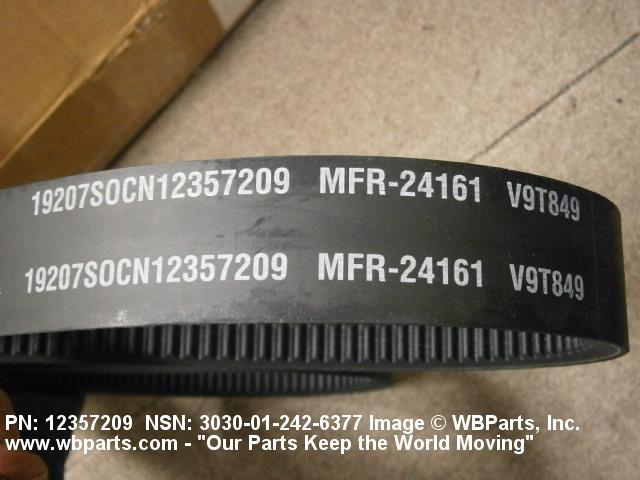

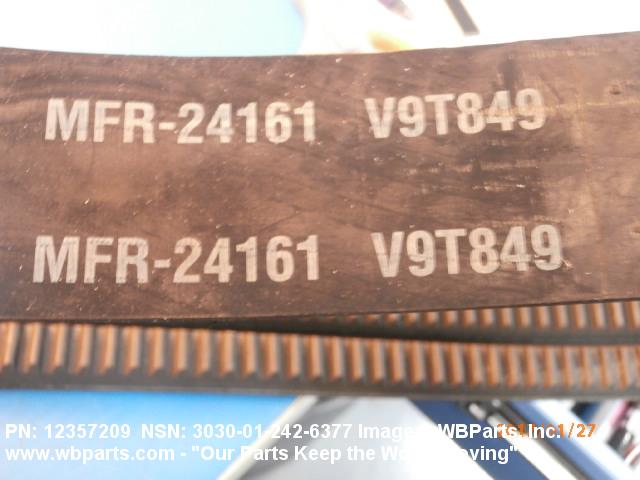

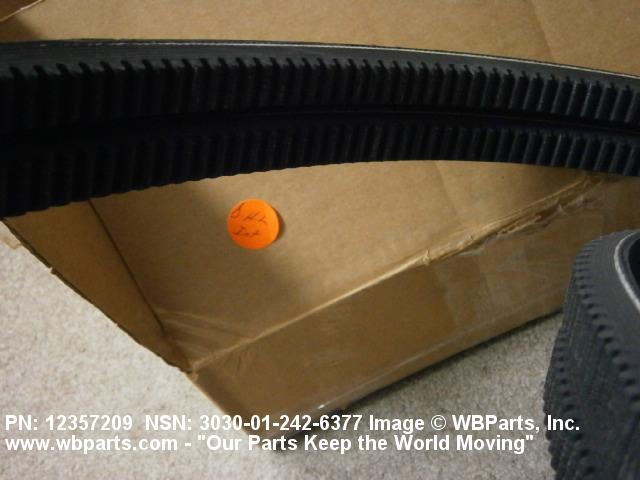

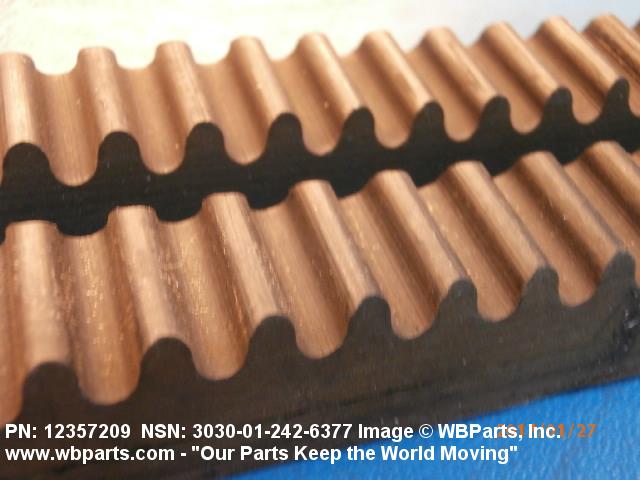

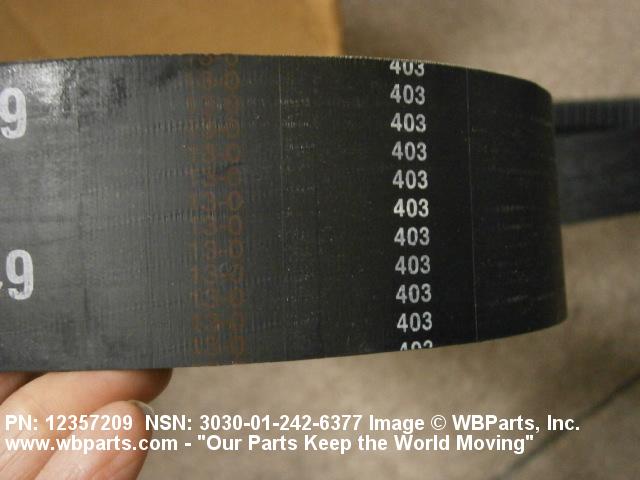

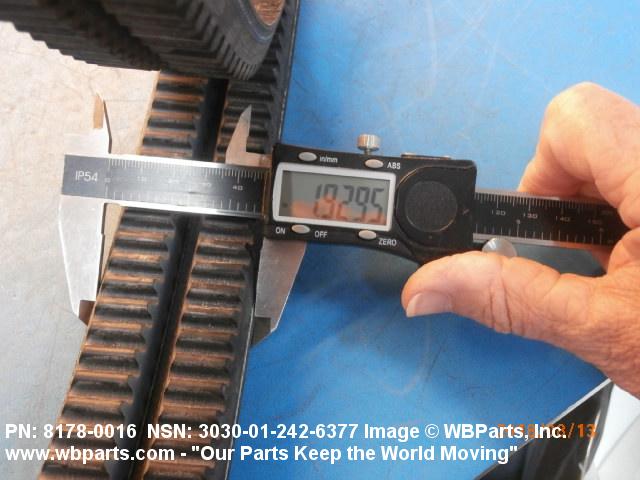

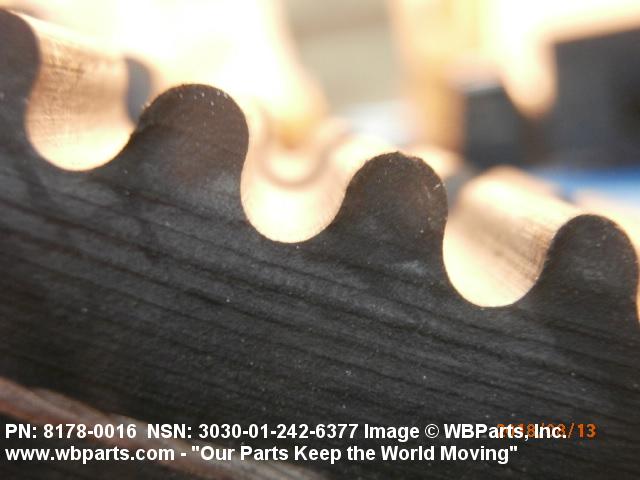

Drawings & Photos | NSN 3030-01-242-6377


Demand History | NSN 3030-01-242-6377

Part Number Request Date QTY Origin
8178-0016 2019-11-13 150 DIBBS
3030-01-242-6377 2018-07-30 1 us
3030-01-242-6377 2018-05-20 91 DIBBS
3030-01-242-6377 2016-12-26 2 Taiwan
3030-01-242-6377 2015-06-05 162 DIBBS
3030-01-242-6377 2015-05-25 162 DIBBS
3030-01-242-6377 2011-11-09 3 Taiwan
3030-01-242-6377 2008-04-14 101 DIBBS
3030-01-242-6377 2008-03-20 140 DIBBS
3030-01-242-6377 2006-06-08 98 DIBBS

Cross Reference | NSN 3030-01-242-6377

Part Number Cage Code Manufacturer
12357209 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12357209 24161 GATES CORP THE DBA GATES RUBBER CO THE
2/C63 24161 GATES CORP THE DBA GATES RUBBER CO THE
8178-0016 24161 GATES CORP THE DBA GATES RUBBER CO THE
81780021 24161 GATES CORP THE DBA GATES RUBBER CO THE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3030-01-242-6377

Technical Data | NSN 3030-01-242-6377

Characteristic Specifications
MATERIAL FIBER AND RUBBER AND FIBER SYNTHETIC AND RUBBER CHLOROPRENE CLASS CR AND RUBBER SYNTHETIC BODY
STRENGTHENING FEATURE SYNTHETIC CORD
STYLE DESIGNATOR A8 MULTI-V-BAND DRIVE
SECTION QUANTITY 2
CROSS-SECTIONAL SIZE C
NOMINAL WIDTH 1.745 INCHES
NOMINAL PITCH LENGTH 66.680 INCHES
PERFORMANCE TYPE STANDARD CAPACITY
MANUFACTURERS CODE 19207
MFR SOURCE CONTROLLING REFERENCE 12357209

Restrictions/Controls & Freight Information | NSN 3030-01-242-6377

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 023340 BELTS OR BELTING NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code AH Defense Supply Center Columbus
Columbus, OH 43215
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3030-01-242-6377

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic CodeI Construction Equipment
Weapons Systems/End Item or Homogeneous GroupINArmored Combat Earthmover (ACE), M9
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
