NSN 3040-00-012-5568 5479695002, 547-9695-002, 00-012-5568
Product Details | SHAFT COLLAR
3040-00-012-5568 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.202304000005340000000
Part Alternates: 5479695002, 547-9695-002, 3040-00-012-5568, 00-012-5568, 3040000125568, 000125568
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-012-5568 | 13743 ( COLLAR, SHAFT ) |
Drawings & Photos | NSN 3040-00-012-5568
Cross Reference | NSN 3040-00-012-5568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 547-9695-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-012-5568
Technical Data | NSN 3040-00-012-5568
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CHROMATE |

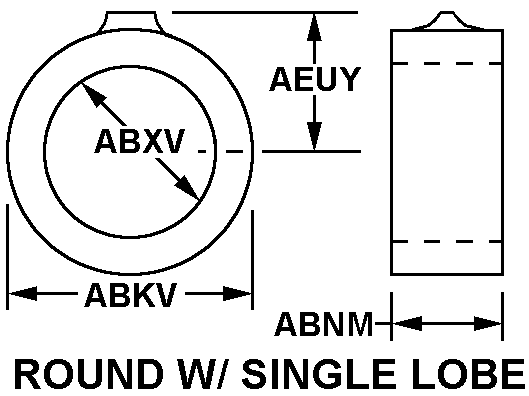

| STYLE DESIGNATOR | A7 ROUND W/SINGLE LOBE |
