NSN 3040-00-084-9117 LS2004218SA, 69C49631, 69C4963-1
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-00-084-9117 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: LS2004218SA, 69C49631, 69C4963-1, 000993-285, 1378AS2721, 1378AS272-1, 3040-00-084-9117, 00-084-9117, 3040000849117, 000993285, 000849117
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 24 NOV 1972 | 00-084-9117 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

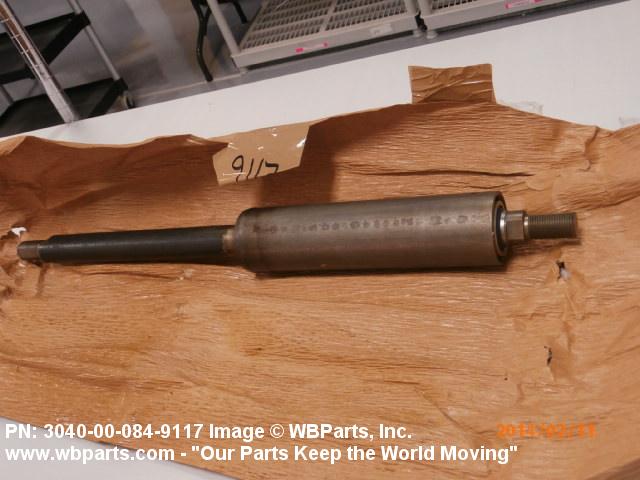

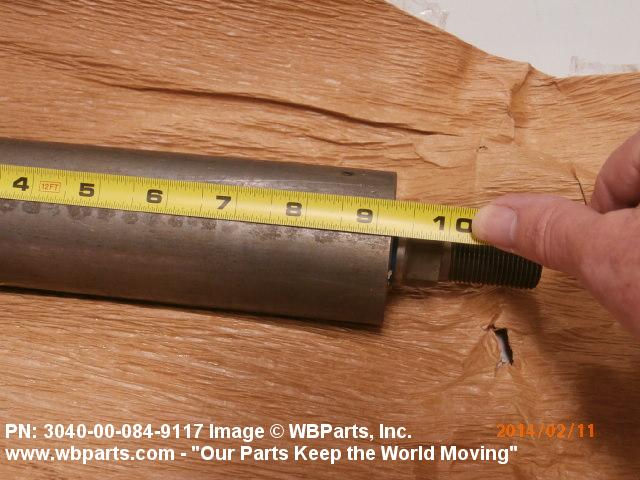

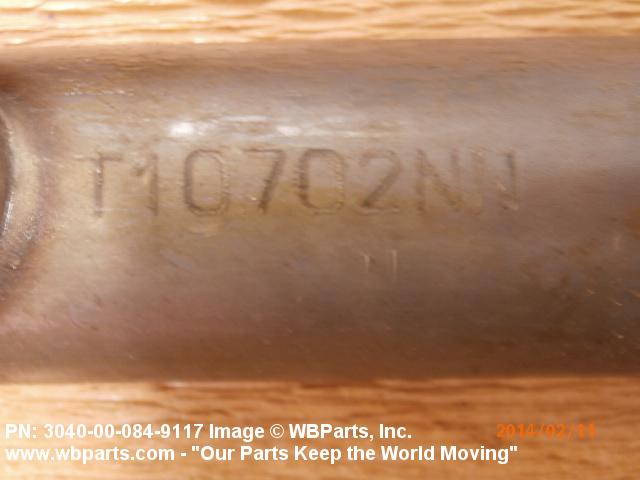

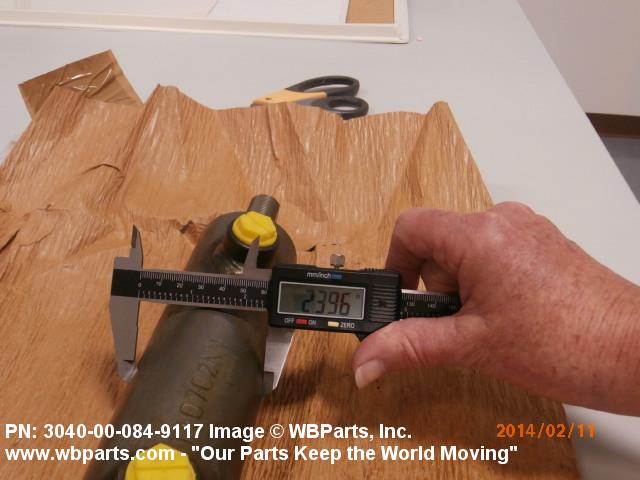

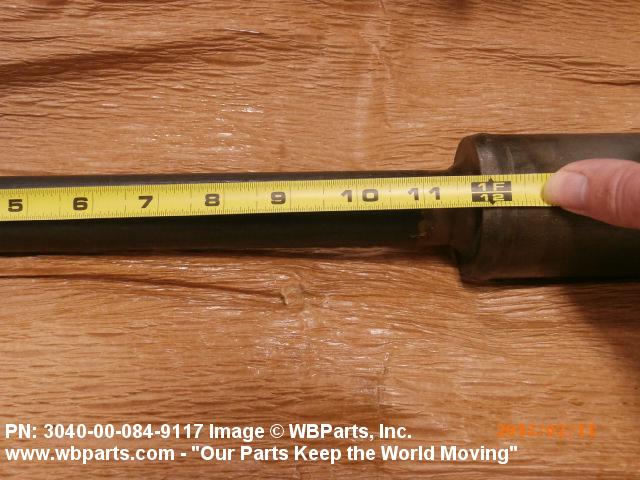

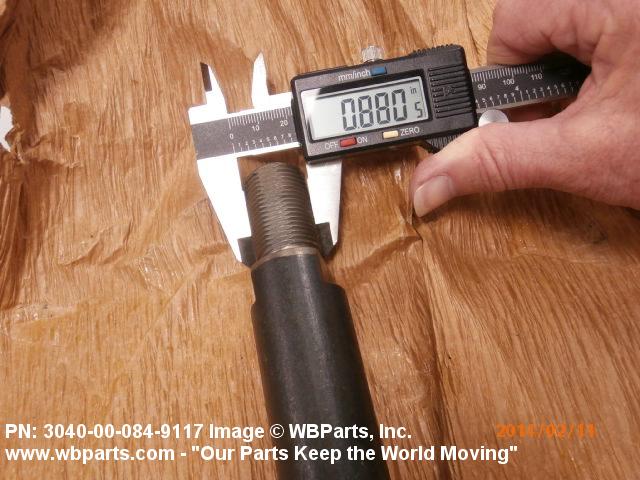

Drawings & Photos | NSN 3040-00-084-9117
Demand History | NSN 3040-00-084-9117
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS2004218SA | 2025-10-287 | 20 | DIBBS |
| LS2004218SA | 2025-06-156 | 30 | DIBBS |
| LS2004218SA | 2025-05-139 | 14 | DIBBS |
| LS2004218SA | 2025-05-128 | 14 | DIBBS |
| LS2004218SA | 2024-01-16 | 66 | DIBBS |
| LS2004218SA | 2024-01-04 | 66 | DIBBS |
| LS2004218SA | 2023-12-338 | 24 | DIBBS |
| LS2004218SA | 2023-11-327 | 24 | DIBBS |
| LS2004218SA | 2023-10-295 | 11 | DIBBS |
| LS2004218SA | 2023-08-240 | 15 | DIBBS |
| LS2004218SA | 2023-08-229 | 15 | DIBBS |
| LS2004218SA | 2023-06-164 | 86 | DIBBS |
| LS2004218SA | 2023-05-149 | 86 | DIBBS |
| LS2004218SA | 2022-07-182 | 22 | DIBBS |
| LS2004218SA | 2022-06-171 | 22 | DIBBS |
| LS2004218SA | 2022-05-132 | 18 | DIBBS |
| LS2004218SA | 2022-03-88 | 52 | DIBBS |
| LS2004218SA | 2022-03-73 | 52 | DIBBS |
| LS2004218SA | 2021-03-87 | 47 | DIBBS |
| 3040-00-084-9117 | 2020-06-176 | 8 | SA |
| LS2004218SA | 2020-03-90 | 37 | DIBBS |
| LS2004218SA | 2020-03-75 | 37 | DIBBS |
| LS2004218SA | 2019-06-169 | 16 | DIBBS |
| 3040-00-084-9117 | 2018-04-105 | 21 | DIBBS |
| 3040-00-084-9117 | 2017-03-89 | 22 | DIBBS |
| 3040-00-084-9117 | 2014-02-44 | 14 | DIBBS |
| 3040-00-084-9117 | 2014-01-22 | 1 | DIBBS-RFPs |
| 3040-00-084-9117 | 2014-01-16 | 1 | United States |
| 3040-00-084-9117 | 2013-12-339 | 13 | DIBBS |
| 3040-00-084-9117 | 2013-10-281 | 13 | DIBBS |
| 3040-00-084-9117 | 2013-05-141 | 0 | DIBBS |
| 3040-00-084-9117 | 2013-03-88 | 16 | DIBBS |
| 3040-00-084-9117 | 2013-02-44 | 14 | DIBBS |
| 3040-00-084-9117 | 2011-06-165 | 13 | DIBBS |
| 3040-00-084-9117 | 2011-03-74 | 76 | DIBBS |
| 3040-00-084-9117 | 2010-10-302 | 9 | DIBBS |
| 3040-00-084-9117 | 2010-06-167 | 17 | DIBBS |
| 3040-00-084-9117 | 2007-12-344 | 7 | DIBBS |
| 3040-00-084-9117 | 2007-05-136 | 18 | DIBBS |
| 3040-00-084-9117 | 2006-04-103 | 21 | DIBBS |
| 3040-00-084-9117 | 2006-02-35 | 21 | DIBBS |
Cross Reference | NSN 3040-00-084-9117
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-084-9117
Related Products | NSN 3040-00-084-9117
Technical Data | NSN 3040-00-084-9117
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | MECHANICAL |
| OVERALL DIAMETER | 2.375 INCHES NOMINAL |
| EXTENDED LENGTH | 27.625 INCHES NOMINAL |

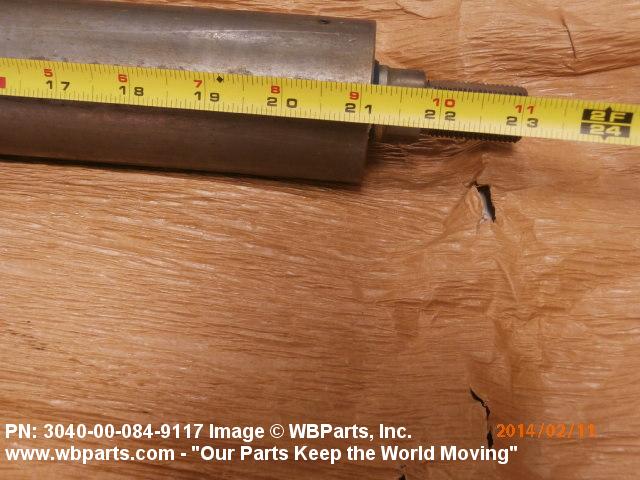

| COMPRESSED LENGTH | 23.375 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.375 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | ANY ACCEPTABLE |

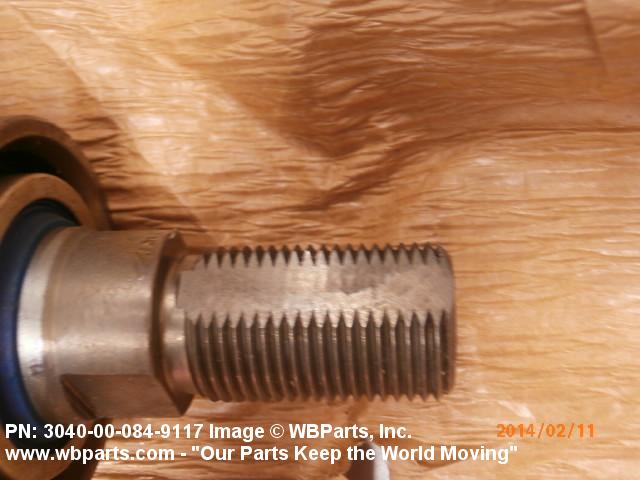

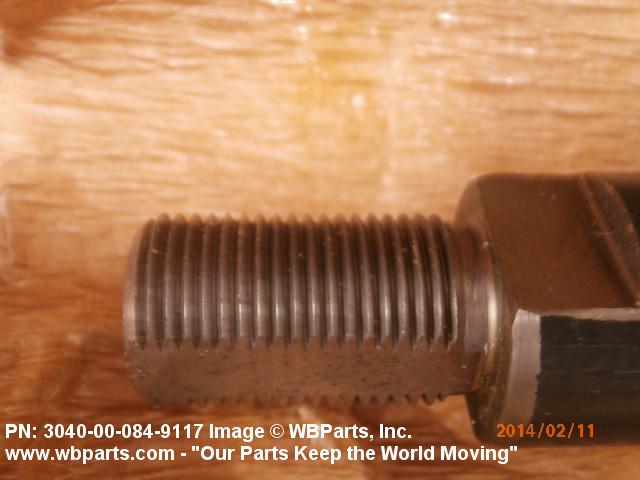

| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END OUTSIDE DIAMETER | ANY ACCEPTABLE |
| FIRST END EXTERNAL THREAD LENGTH | 2.500 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNF |

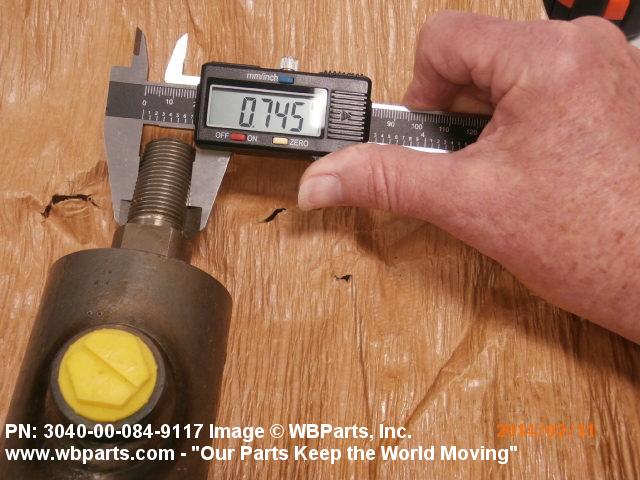

| FIRST PISTON ROD END THREAD DIAMETER | 0.875 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 14 |
| FIRST PISTON ROD END THREAD CLASS | 2A |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | LUG CYLINDER HEAD END LUG PISTON ROD END |
| MOUNTING PROVISION | THREADED MOUNTING STUDS |
| MOUNTING PROVISION ARRANGEMENT STYLE | 2 TWO STUD |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 23.375 INCHES MINIMUM 27.625 INCHES MAXIMUM |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY THREAD DIAMETER | 0.875 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 14 |
| MOUNTING FACILITY THREAD CLASS | 2A |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY THREAD LENGTH | 2.500 INCHES NOMINAL |
| MOUNTING FACILITY LENGTH | ANY ACCEPTABLE |

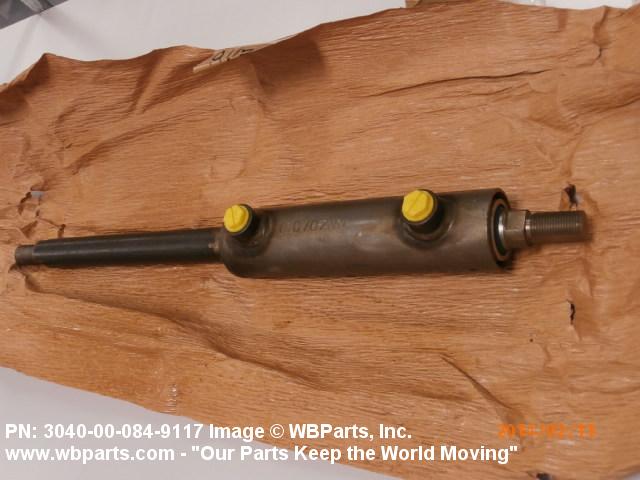

| PORT LOCATION AND QUANTITY | 2 CENTER SECTION |
| PORT STYLE | 6 FLARE |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.750 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 16 |
| PORT THREAD CLASS | 2A |
| SEAT ANGLE IN DEG | 35.0 |
| TEMP RATING | NOT RATED |
| PRESSURE RATING | 1000.0 POUNDS PER SQUARE INCH NOMINAL |
| III FSC APPLICATION DATA | CYLINDER ASSEMBLIES,STEERING,VEHICULAR |
| MANUFACTURERS CODE | 08481 |
| DESIGN CONTROL REFERENCE | LS2004218SA |
Restrictions/Controls & Freight Information | NSN 3040-00-084-9117
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-084-9117
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | QS | TG:AIRCRAFT GROUND SERVICES EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
