Product Details | BALL JOINT
3040-00-203-2001 An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application.
Part Alternates: AN316, 316, 3040-00-203-2001, 00-203-2001, 3040002032001, 002032001
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-203-2001 | 16619 ( BALL JOINT ) |
Drawings & Photos | NSN 3040-00-203-2001
Demand History | NSN 3040-00-203-2001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN316 | 2020-03-10 | 30 | Hong Kong |
| AN316 | 2018-11-09 | 2190 | United States |
| AN316 | 2018-10-30 | 1000 | United States |
| 316 | 2018-01-02 | 1 | US |
| AN316 | 2015-10-27 | 10 | United States |
| 316 | 2014-12-29 | 2 | MX |
| AN316 | 2014-12-10 | 2 | US |
| 316 | 2013-09-20 | 40 | US |
| 316 | 2012-10-11 | 160 | Italy |
| AN316 | 2009-09-02 | 4 | Netherlands |
| AN316 | 2008-06-12 | 6 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3040-00-203-2001
Related Products | NSN 3040-00-203-2001
3040-00-203-2398, 3040-00-203-4476, 3040-00-203-8471, 3040-00-204-0190, 3040-00-204-0398
Technical Data | NSN 3040-00-203-2001
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

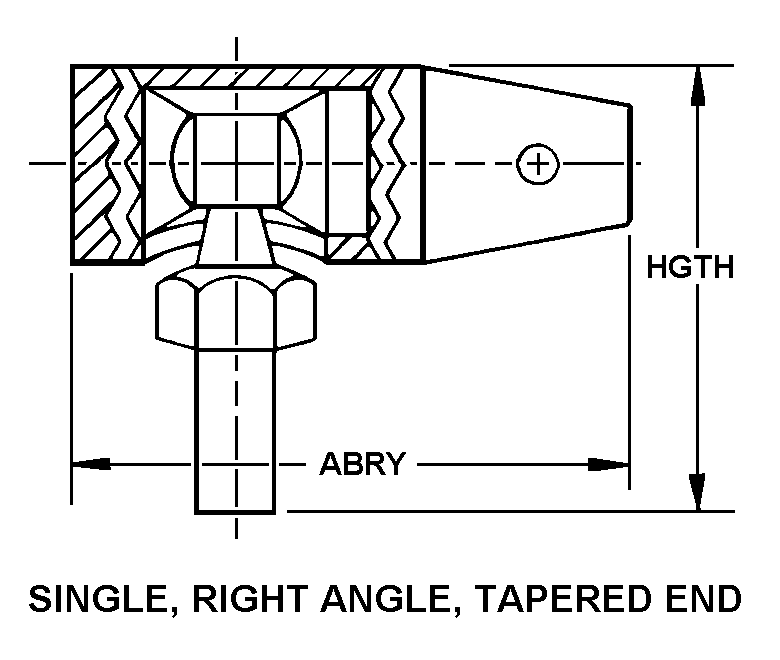

| STYLE DESIGNATOR | A8 SINGLE, RIGHT ANGLE, TAPERED END |
| LENGTH | 1.375 INCHES NOMINAL |
| HEIGHT | 1.188 INCHES NOMINAL |
| BALL END CONNECTION THREAD PROVISION | THREADED |
| BALL END THREAD LOCATION | EXTERNAL |
| BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 10-32 UNF |
| BALL END THREAD DIRECTION | RIGHT |
| SOCKET END CONNECTION THREAD PROVISION | THREADED |
| SOCKET END THREAD LOCATION | INTERNAL |
| SOCKET END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 10-32 UNF |
| SOCKET END THREAD DIRECTION | RIGHT |
| SPECIAL FEATURES | ADJUSTABLE;SPRING-NOT INCL.;LGTH TO JOINT 0.914 IN.;BALL END THD LGTH 0.500 IN.;SURFACE TREAT.-CADMIUM PLATED |
Restrictions/Controls & Freight Information | NSN 3040-00-203-2001
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-203-2001
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
