NSN 3040-00-350-0913 G7572, 00-350-0913, 003500913
Product Details | STRAIGHT SHAFT
3040-00-350-0913 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: G7572, 3040-00-350-0913, 00-350-0913, 3040003500913, 003500913
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-350-0913 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-00-350-0913
Cross Reference | NSN 3040-00-350-0913
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G7572 | 77260 | PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-350-0913
Technical Data | NSN 3040-00-350-0913
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1515 ASSN STD SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 5 CIRCULAR GROOVED |
| FIRST END GROOVE WIDTH | 0.0650 INCHES NOMINAL |
| FIRST END GROOVE DIAMETER | 0.3594 INCHES NOMINAL |
| FIRST END DISTANCE FROM END TO GROOVE | 1.062 INCHES NOMINAL |
| FIRST END DIAMETER | 0.4370 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

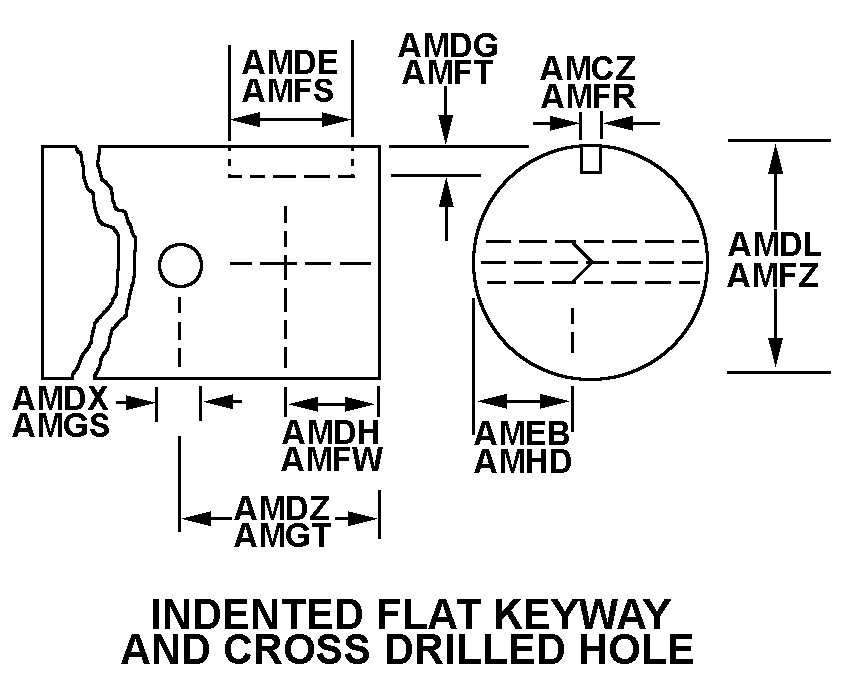

| SECOND END STYLE | 56 INDENTED FLAT KEYWAY AND CROSS DRILLED HOLE |
| SECOND END KEYWAY WIDTH | 0.1570 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 0.940 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.157 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 1.345 INCHES NOMINAL |
| SECOND END DIAMETER | 0.4370 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.1570 INCHES NOMINAL |
| SECOND END HOLE DEPTH | 0.062 INCHES NOMINAL |
| OVERALL LENGTH | 3.406 INCHES NOMINAL |
| SPECIAL FEATURES | SECOND END WITH KEYWAY,GROOVE WIDTH 0.0650 IN. NOMINAL,GROOVE DIAMETER 0.3594 IN. NOMINAL,DISTANCE FROM END TO GROOVE 0.344 IN. NOMINAL |
Restrictions/Controls & Freight Information | NSN 3040-00-350-0913
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
