NSN 3040-00-479-2744 P01122, P011-22, 13216E6330
Product Details | LINEAR ACTUATING CYLINDER
3040-00-479-2744 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components1710000030400042Miscellaneous Power Transmission Equipment
Part Alternates: P01122, P011-22, 13216E6330, 3040-00-479-2744, 00-479-2744, 3040004792744, 004792744
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 04 FEB 1970 | 00-479-2744 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |

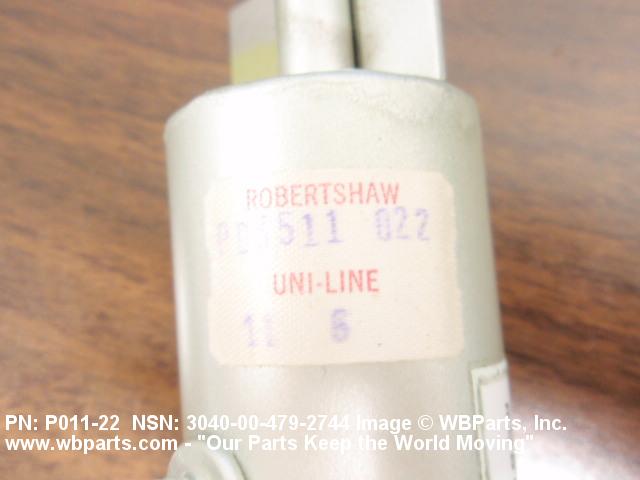

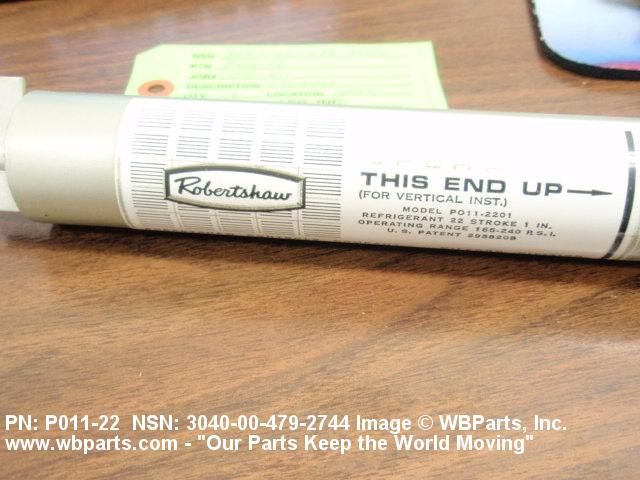

Drawings & Photos | NSN 3040-00-479-2744
