NSN 3040-00-673-9301 12911372, 1291137-2, 00-673-9301
Product Details | HUB CLAMP
3040-00-673-9301 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 12911372, 1291137-2, 3040-00-673-9301, 00-673-9301, 3040006739301, 006739301
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-673-9301 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-00-673-9301
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-673-9301
Technical Data | NSN 3040-00-673-9301
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763 |

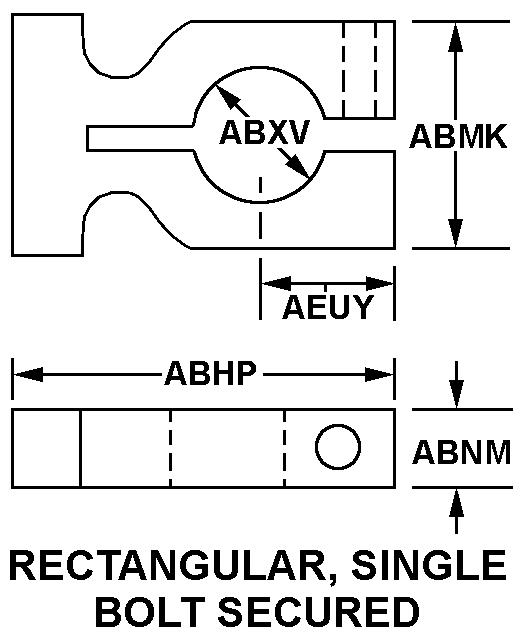

| STYLE DESIGNATOR | B13 RECTANGULAR, SINGLE BOLT SECURED |
| THICKNESS | 0.135 INCHES NOMINAL |
| OVERALL WIDTH | 0.281 INCHES NOMINAL |
| BORE DIAMETER | 0.1562 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | 2 THREADED |
| PLAIN HOLE DIAMETER | 0.0935 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| III FSC APPLICATION DATA | COMPUTER AIR SPEED |
| MANUFACTURERS CODE | 55973 |
| DESIGN CONTROL REFERENCE | 1291137-2 |
Restrictions/Controls & Freight Information | NSN 3040-00-673-9301
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
