Product Details | STRAIGHT SHAFT
3040-00-752-1026 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: A0285, A8445, GPW3165, A855, 7521026, 17210, 3040-00-752-1026, 00-752-1026, 3040007521026, 007521026
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-752-1026 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-00-752-1026
Cross Reference | NSN 3040-00-752-1026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17210 | 72447 | DANA COMMERCIAL VEHICLE MANUFACTURING, LLC |
| 17210 | 95019 | DANA CORP SPICER TRANSMISSION DIV |
| 7521026 | 01227 | NAPCO INTL INC |
| 7521026 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7521026 | 32783 | LASMER INDUSTRIES INC |
| 7521026 | 95201 | NAPCO INTERNATIONAL LLC |
| A0285 | 87653 | OAK PARK SCREW PRODUCTS CO |
| A8445 | 34623 | AM GENERAL, LLC |
| A855 | 34623 | AM GENERAL, LLC |
| A855 | 80680 | AUTOMOTIVE MFG CO |
| GPW3165 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-752-1026
3040-00-752-1037, 3040-00-752-1047, 3040-00-752-1097, 3040-00-752-1099, 3040-00-752-1141
Technical Data | NSN 3040-00-752-1026
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 14 FLAT GROOVED |
| FIRST END DISTANCE FROM END TO FLAT | 0.812 INCHES NOMINAL |
| FIRST END DIAMETER | 0.7500 INCHES NOMINAL |
| FIRST END GROOVED FLAT LENGTH | 0.3750 INCHES NOMINAL |
| FIRST END GROOVED FLAT DEPTH | 0.080 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

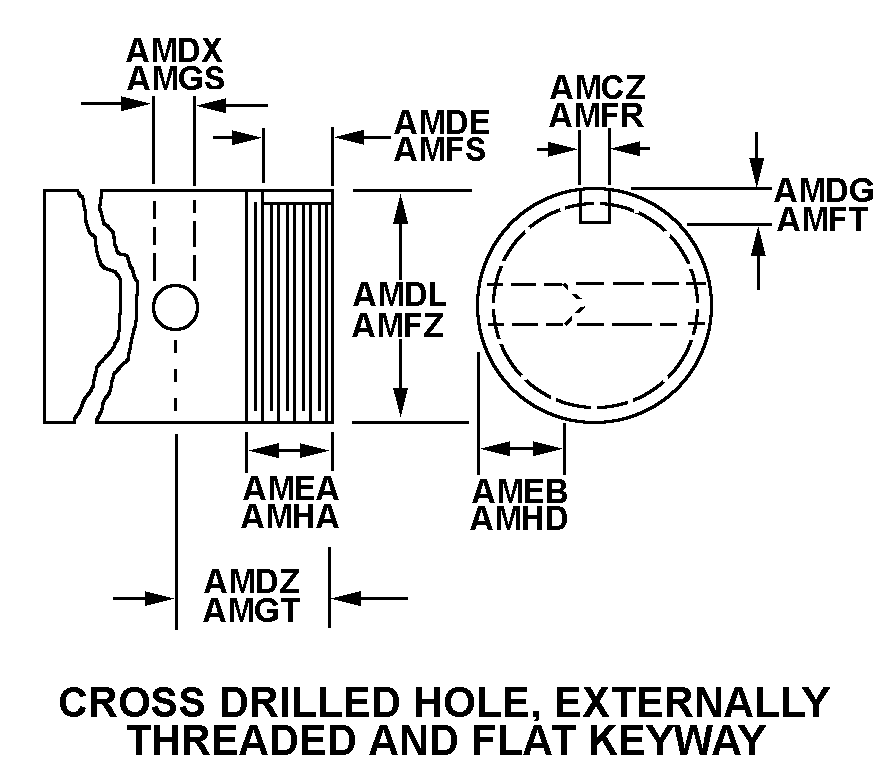

| SECOND END STYLE | 87 CROSS DRILLED HOLE, EXTERNALLY THREADED AND FLAT KEYWAY |
| SECOND END KEYWAY WIDTH | 0.1870 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 0.719 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.093 INCHES NOMINAL |
| SECOND END DIAMETER | 0.7500 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.1560 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 0.188 INCHES NOMINAL |
| SECOND END EXTERNAL THREAD LENGTH | 0.719 INCHES NOMINAL |
| SECOND END HOLE DEPTH | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 4.312 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3040-00-752-1026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-752-1026
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
