NSN 3040-00-800-0113 1FH56, 34335A, 3433-5A
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-00-800-0113 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 1FH56, 34335A, 3433-5A, 3040-00-800-0113, 00-800-0113, 3040008000113, 008000113
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-800-0113 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 3040-00-800-0113
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-800-0113
Related Products | NSN 3040-00-800-0113
Technical Data | NSN 3040-00-800-0113
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| EXTENDED LENGTH | ANY ACCEPTABLE |
| COMPRESSED LENGTH | 20.781 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |
| BODY MATERIAL | STEEL, FED STD 66, AISI/SAE 1015 |
| BORE DIAMETER | 3.953 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 1 RING TYPE |
| FIRST END HOLE DIAMETER | 3.500 INCHES NOMINAL |
| FIRST END OUTSIDE DIAMETER | 3.951 INCHES NOMINAL |
| FIRST END THICKNESS AT MOUNTING HOLES | 0.562 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE PISTON ROD END |
| MOUNTING PROVISION | THREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 1 TWO HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 2.000 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY THREAD DIAMETER | 0.625 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 18 |
| MOUNTING FACILITY THREAD CLASS | 3B |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY THREAD LENGTH | 0.562 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END |

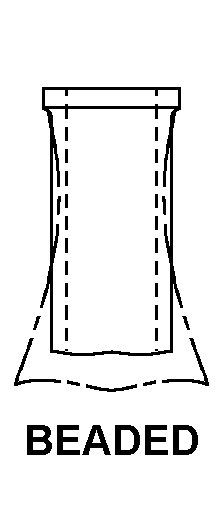

| PORT STYLE | 46 BEADED |
| OUTSIDE DIAMETER | 5.125 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| PRESSURE RATING | NOT RATED |
