NSN 3040-00-848-1209 CL797612, CL7976-12, 225718
Product Details | FRICTION LINING
3040-00-848-1209 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: CL797612, CL7976-12, 225718, 2-25718, 3040-00-848-1209, 00-848-1209, 3040008481209, 008481209
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 30 DEC 1966 | 00-848-1209 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 3040-00-848-1209
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-848-1209
Technical Data | NSN 3040-00-848-1209
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | MOLDED |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | BOTH SIDES GROUND |
| LINING STYLE | 6 CLUTCH DISK SEGMENT |
| WIDTH | 1.000 INCHES NOMINAL |
| THICKNESS | 0.156 INCHES NOMINAL |
| ARC LENGTH | 4.625 INCHES NOMINAL |
| MINOR RADIUS | 2.000 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |

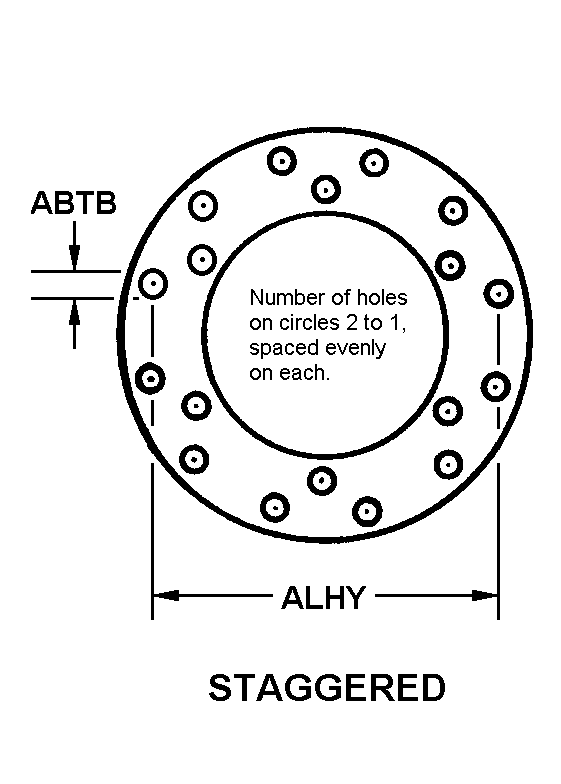

| HOLE ARRANGEMENT STYLE | B10 STAGGERED |
| MOUNTING HOLE DIAMETER | 0.405 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE DIAMETER | 5.250 INCHES NOMINAL AND 4.750 INCHES NOMINAL |
| CIRCULAR PATTERN HOLE TYPE AND QUANTITY | 2 COUNTERBORED OUTER SECURING CIRCLE 1 COUNTERBORED INNER SECURING CIRCLE |
| FEATURES PROVIDED | RIGID FRICTION LINING |
Restrictions/Controls & Freight Information | NSN 3040-00-848-1209
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014640 | BRAKE BLOCKS / BRAKE LININGS |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
