NSN 3040-00-974-7692 MK2343N, MK2-3-43N, MODEL PO11-2201
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-00-974-7692 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: MK2343N, MK2-3-43N, MODEL PO11-2201, MODELPO112201, P0112201, P011-2201, P011-2201 R22, P0112201R22, P03511022, P03511-022, 13138001R22, 131380-01R22, 3511022, 3511-022, 3040-00-974-7692, 00-974-7692, 3040009747692, 009747692
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 05 OCT 1966 | 00-974-7692 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

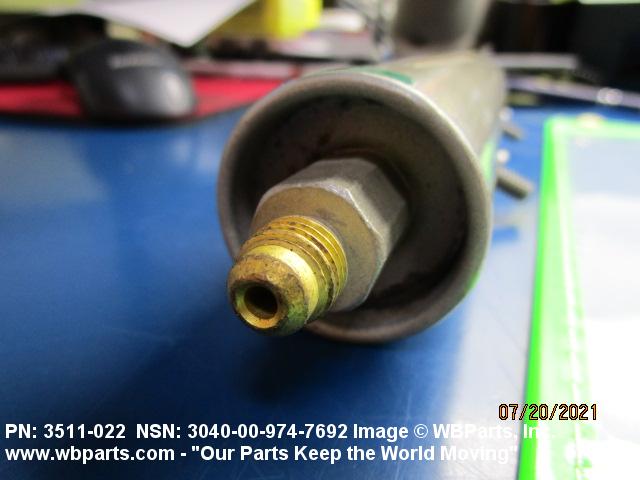

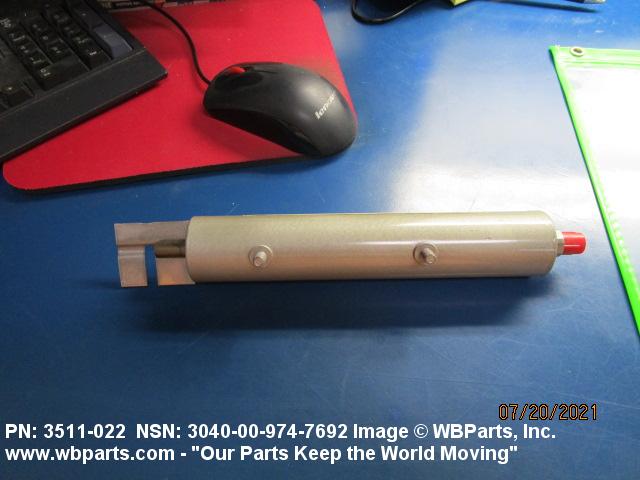

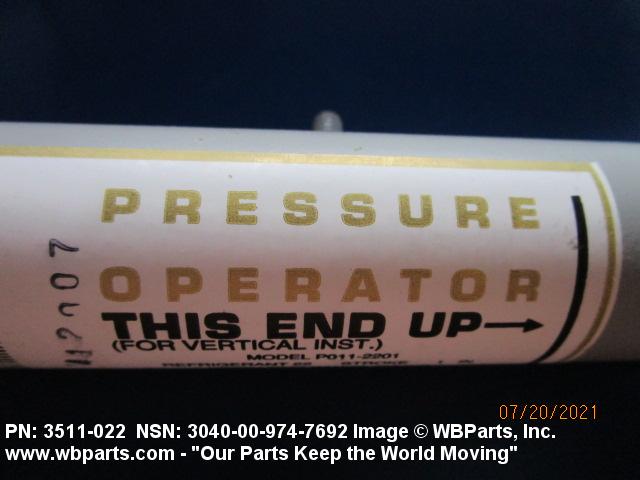

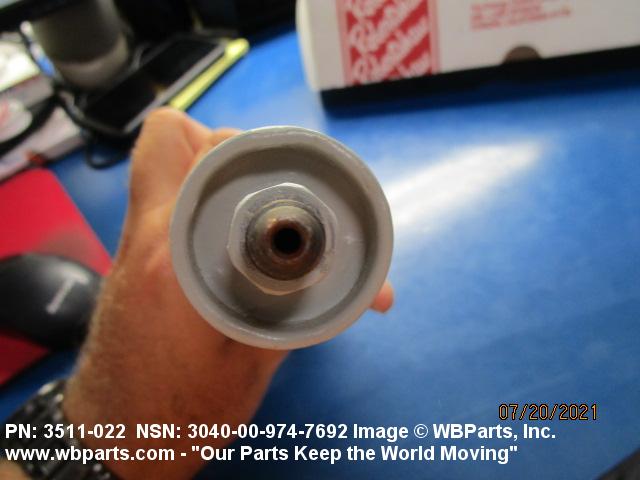

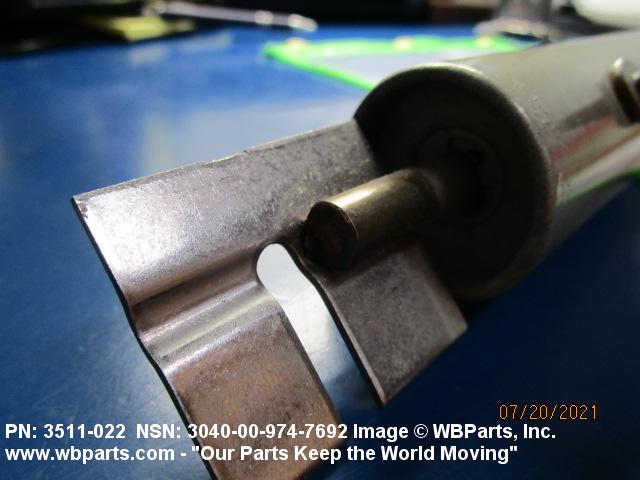

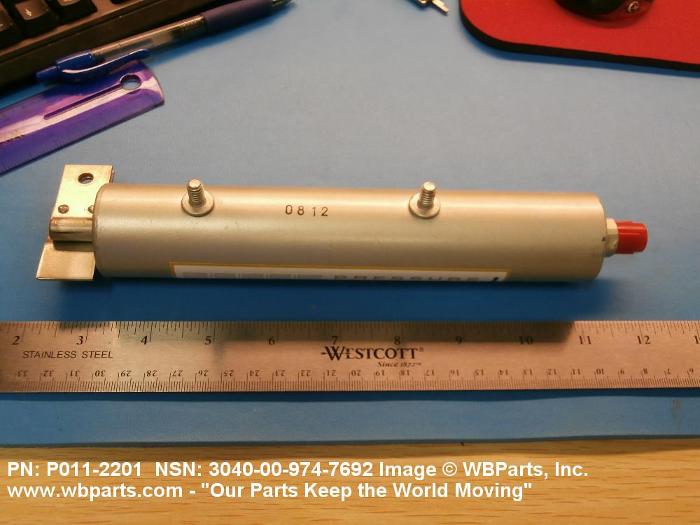

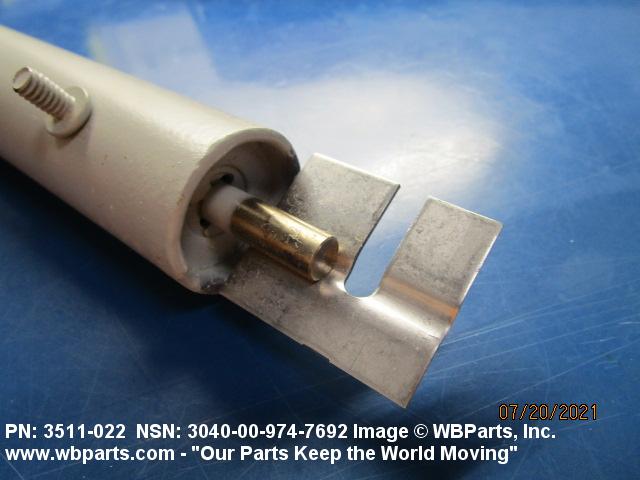

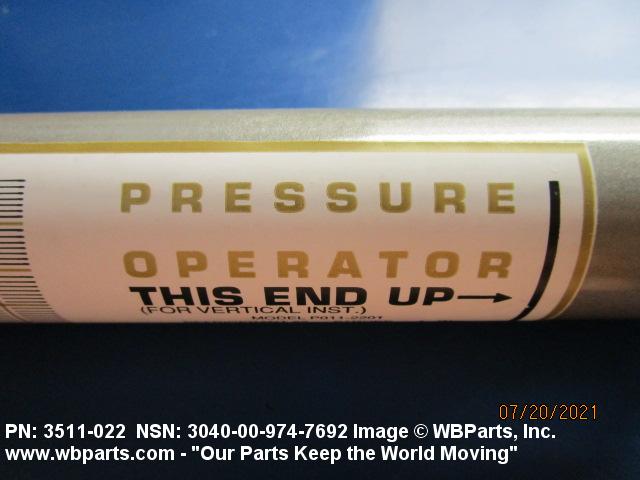

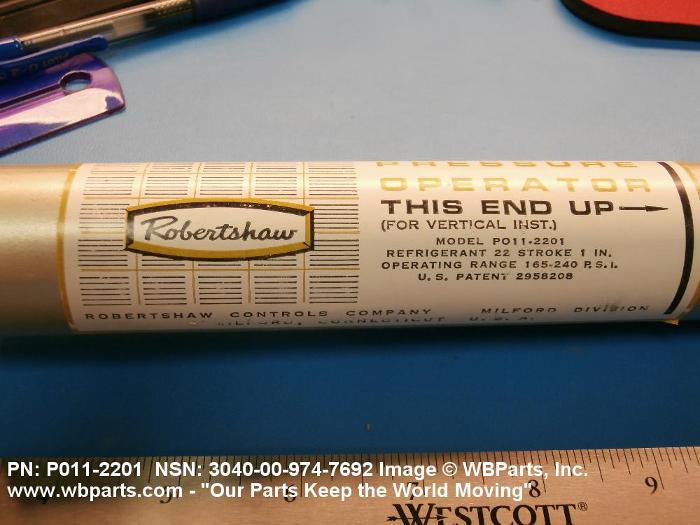

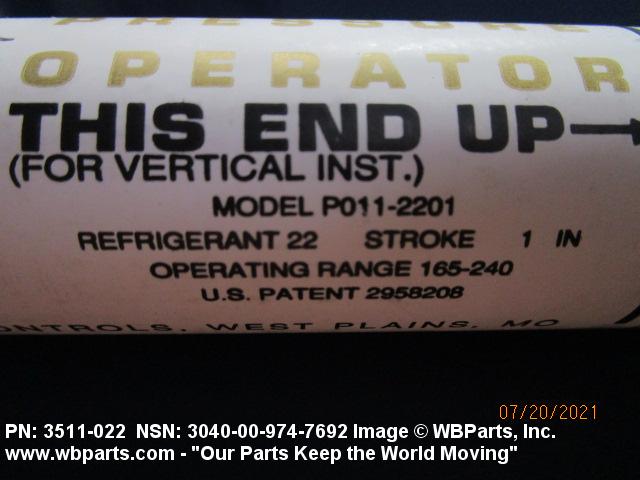

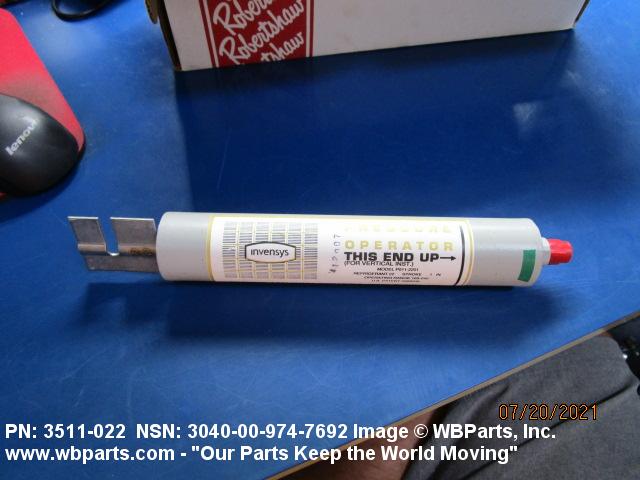

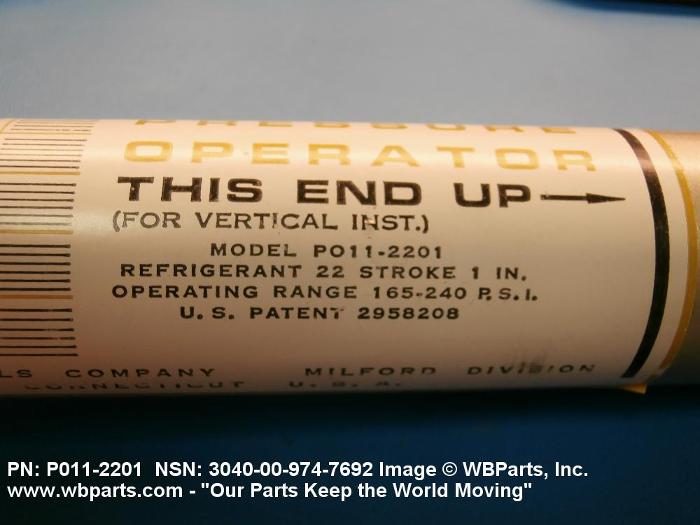

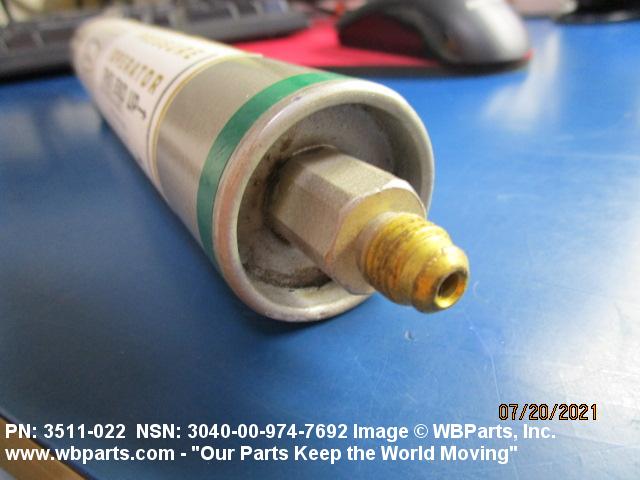

Drawings & Photos | NSN 3040-00-974-7692
Demand History | NSN 3040-00-974-7692
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-974-7692 | 2022-02-46 | 5 | US |
| 3040-00-974-7692 | 2021-07-190 | 2 | US |
| 3511-022 | 2021-07-187 | 1 | DIBBS |
| P011-2201 R22 | 2021-07-187 | 1 | DIBBS |
| 3040-00-974-7692 | 2021-05-139 | 5 | United States |
| 3040-00-974-7692 | 2020-11-316 | 5 | KR |
| 3040-00-974-7692 | 2017-06-167 | 1 | US |
| P03511022 | 2012-08-229 | 1 | United States |
| 3040-00-974-7692 | 2012-02-35 | 1 | DIBBS |
| P0112201 | 2010-11-315 | 1 | US |
| 3040-00-974-7692 | 2010-08-228 | 2 | US |
| 3040-00-974-7692 | 2010-08-228 | 2 | US |
| 3040-00-974-7692 | 2010-08-228 | 2 | US |
| P0112201 | 2010-07-210 | 1 | US |
| 3040-00-974-7692 | 2009-02-51 | 1 | US |
| P0112201 | 2008-11-323 | 10 | US |
| P0112201R22 | 2008-04-112 | 400 | us |
| 3040-00-974-7692 | 2008-03-66 | 2 | United States |
Cross Reference | NSN 3040-00-974-7692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 131380-01R22 | 80439 | ROBERTSHAW TENNESSEE/COOKEVILLE AUTOMOTIVE |
| 3511-022 | 33371 | ROBERTSHAW CONTROLS CO UNI-LINE DIV |
| 3511-022 | 80439 | ROBERTSHAW TENNESSEE/COOKEVILLE AUTOMOTIVE |
| MK2-3-43N | 98437 | ELLIS & WATTS INTERNATIONAL, LLC |
| MODEL PO11-2201 | KD264 | MINISTRY OF DEFENCE ES SEA/WARSHIP SUPPORT AGENCY SSIPT |
| P011-2201 | 80439 | ROBERTSHAW TENNESSEE/COOKEVILLE AUTOMOTIVE |
| P011-2201 R22 | 33371 | ROBERTSHAW CONTROLS CO UNI-LINE DIV |
| P03511-022 | 80439 | ROBERTSHAW TENNESSEE/COOKEVILLE AUTOMOTIVE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-974-7692
Technical Data | NSN 3040-00-974-7692
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |

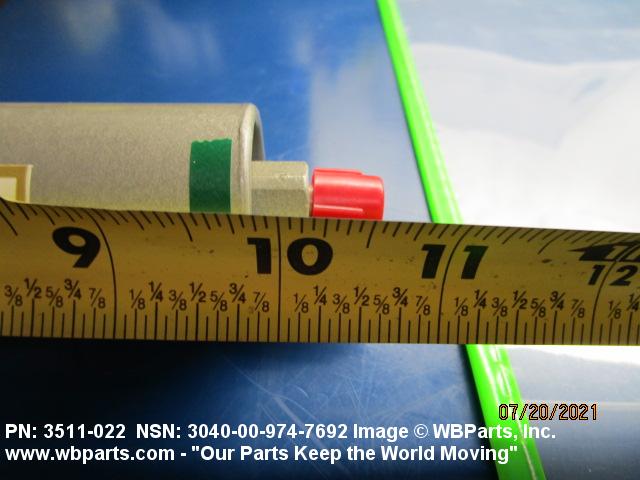

| OVERALL HEIGHT | 10.000 INCHES NOMINAL |

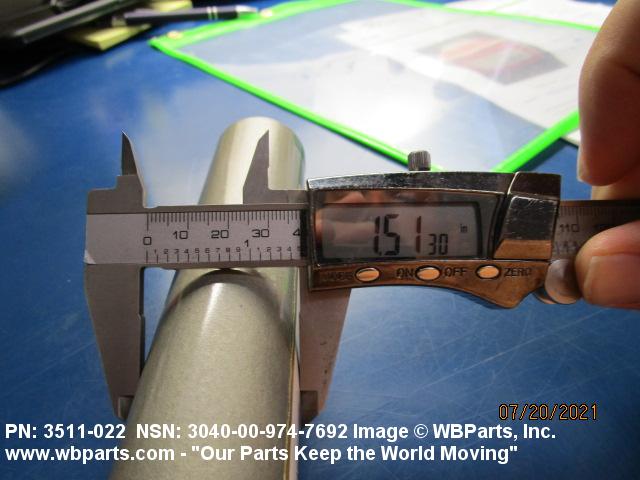

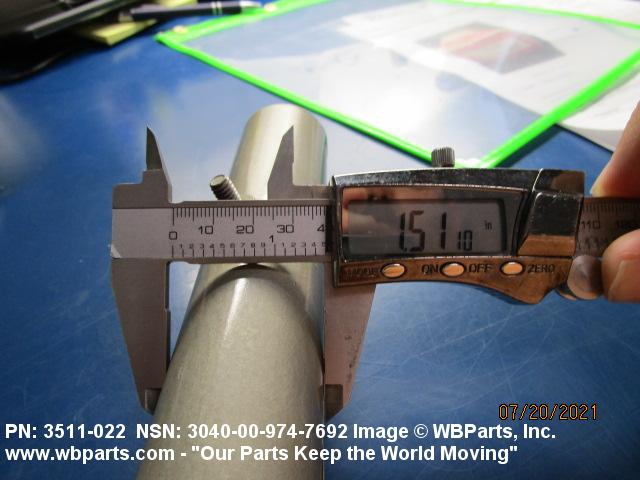

| OVERALL DIAMETER | 1.500 INCHES NOMINAL |

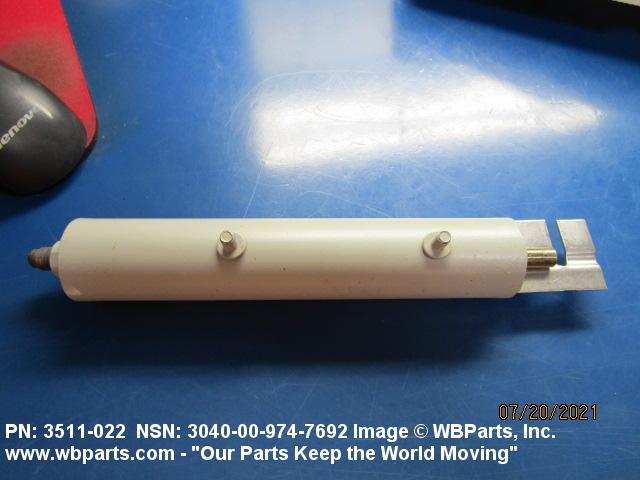

| MOUNTING PROVISION | THREADED MOUNTING STUDS |
| MOUNTING PROVISION ARRANGEMENT STYLE | 2 TWO STUD |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY THREAD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 20 |
Restrictions/Controls & Freight Information | NSN 3040-00-974-7692
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-974-7692
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
