Product Details | STRAIGHT SHAFT
3040-01-091-7576 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 3015889, 3040-01-091-7576, 01-091-7576, 3040010917576, 010917576
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 MAR 1980 | 01-091-7576 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-01-091-7576
Cross Reference | NSN 3040-01-091-7576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3015889 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-091-7576
Technical Data | NSN 3040-01-091-7576
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,ALLOY 360,HALF HARD FED SPEC SINGLE MATERIAL RESPONSE |

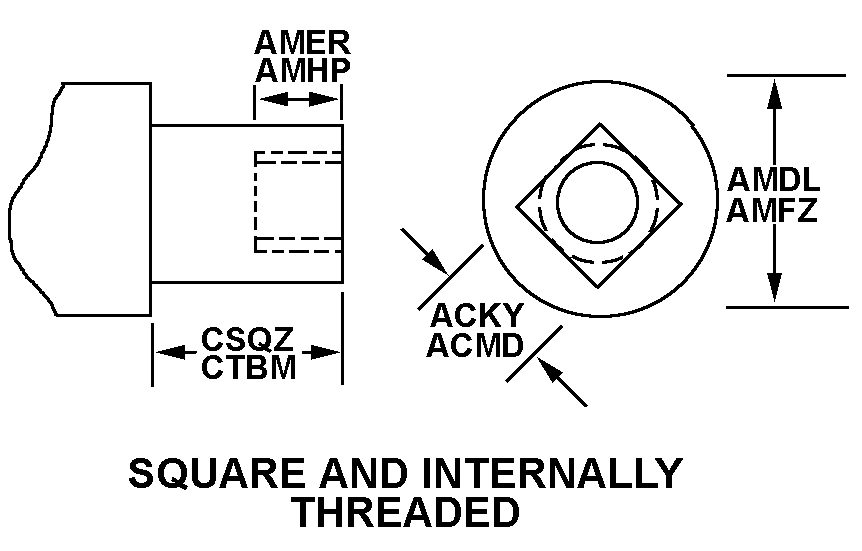

| FIRST END STYLE | 53 SQUARE AND INTERNALLY THREADED |
| FIRST END DIAMETER | 0.3500 INCHES MINIMUM AND 0.3540 INCHES MAXIMUM |
| FIRST END WIDTH ACROSS FLATS | 0.243 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| FIRST END STEP LENGTH | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| FIRST END INTERNAL THREAD LENGTH | 0.500 INCHES MINIMUM |
| END SIMILARITY | IDENTICAL |
| OVERALL LENGTH | 3.091 INCHES NOMINAL |
| SPECIAL FEATURES | BOTH ENDS THREADED 10-32 UNF-2B,WITH TWO CIRCULAR GROOVES |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 3015889 |
Restrictions/Controls & Freight Information | NSN 3040-01-091-7576
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
