NSN 3040-01-107-3837 142D5485, 01-107-3837, 011073837
Product Details | SPUR GEARSHAFT
3040-01-107-3837 A gearshaft with a single complement of spur gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS.
Part Alternates: 142D5485, 3040-01-107-3837, 01-107-3837, 3040011073837, 011073837
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 04 FEB 1981 | 01-107-3837 | 60541 ( GEARSHAFT, SPUR ) |

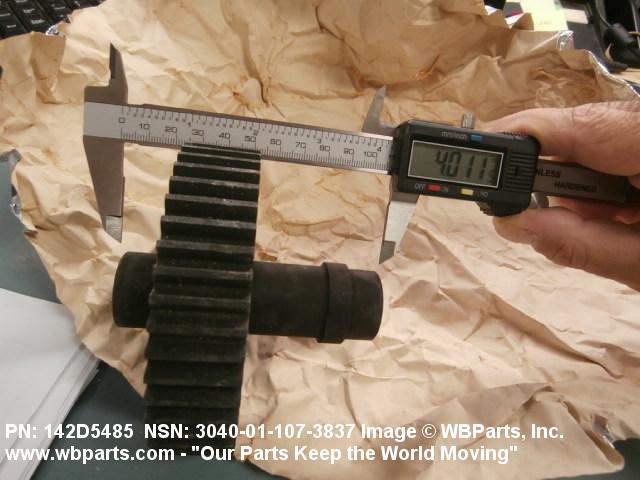

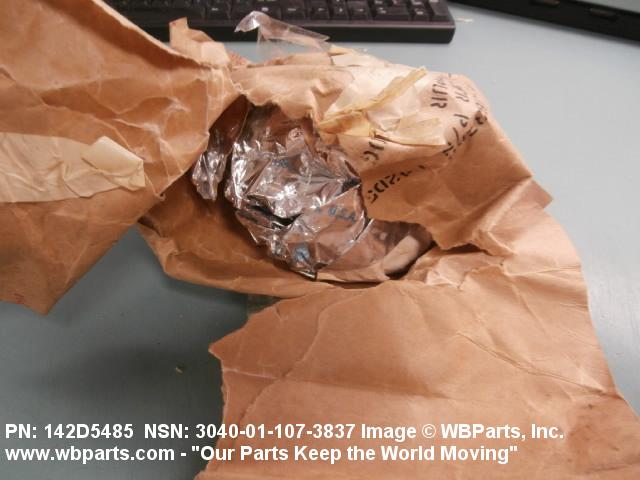

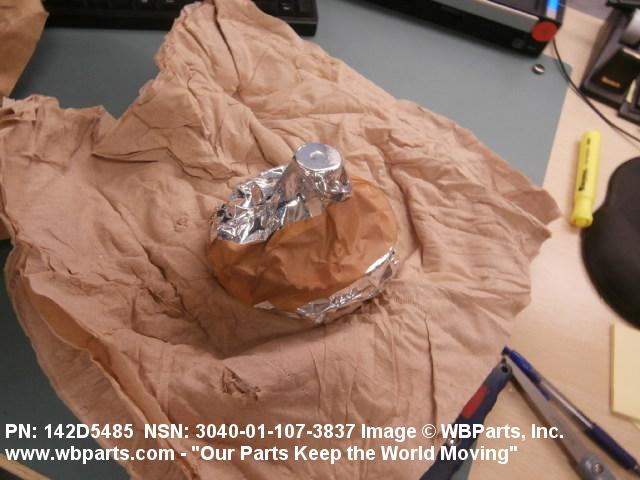

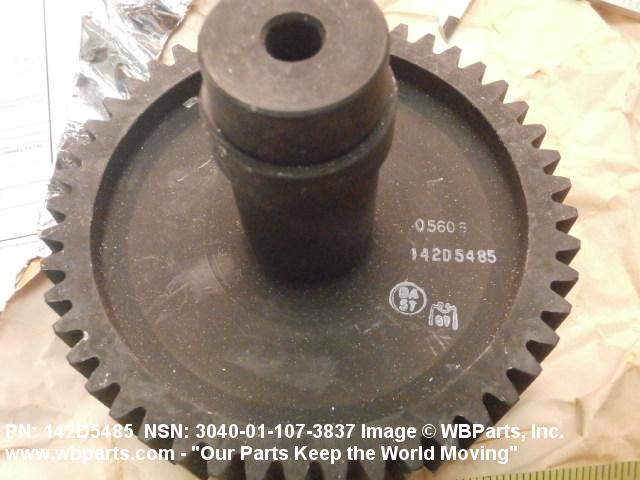

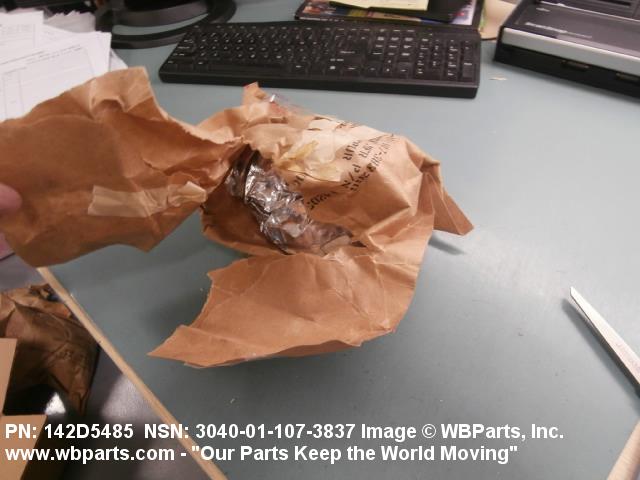

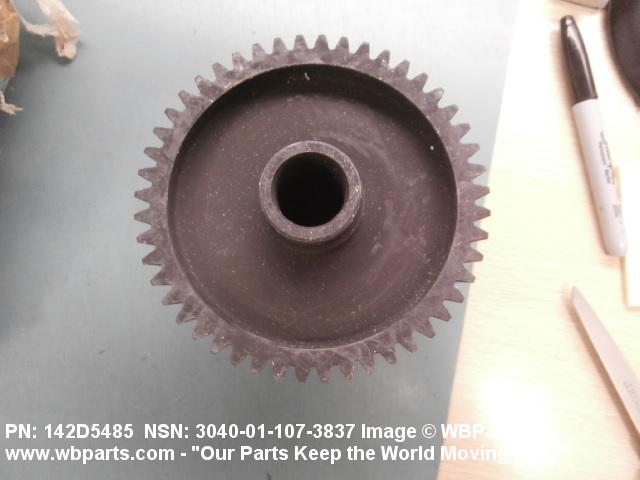

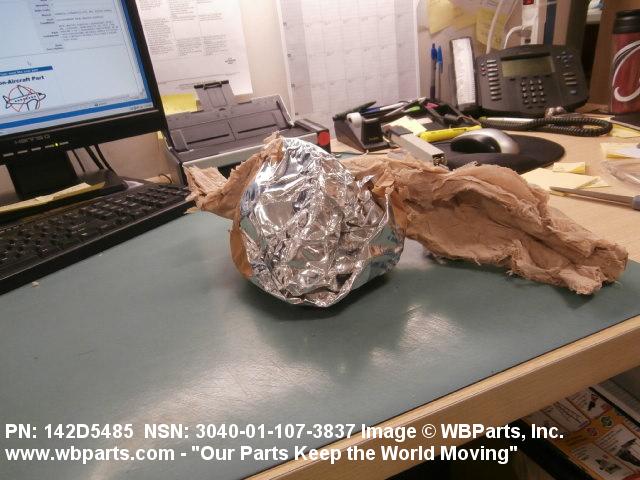

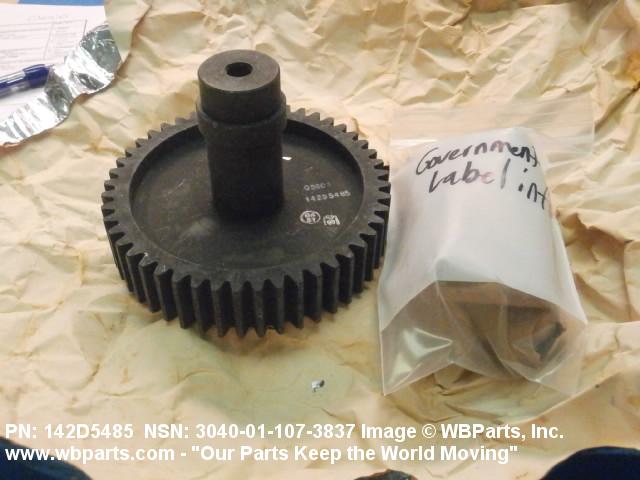

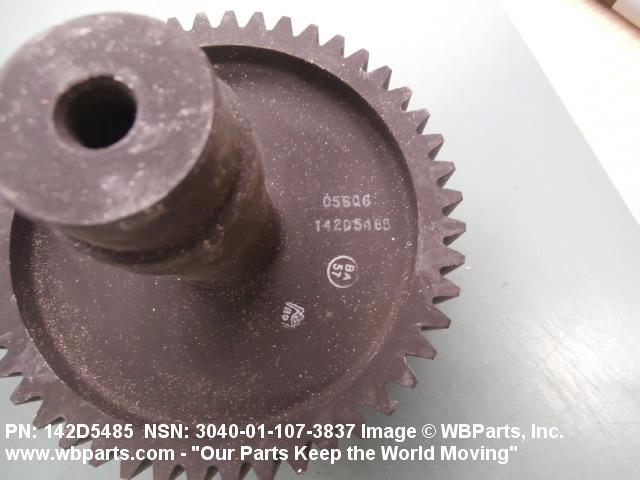

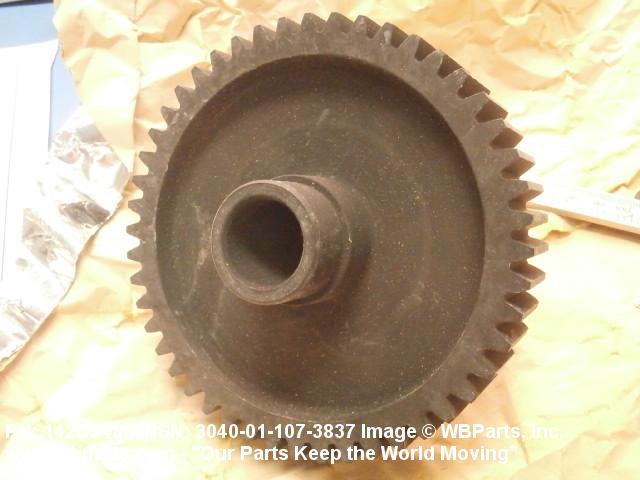

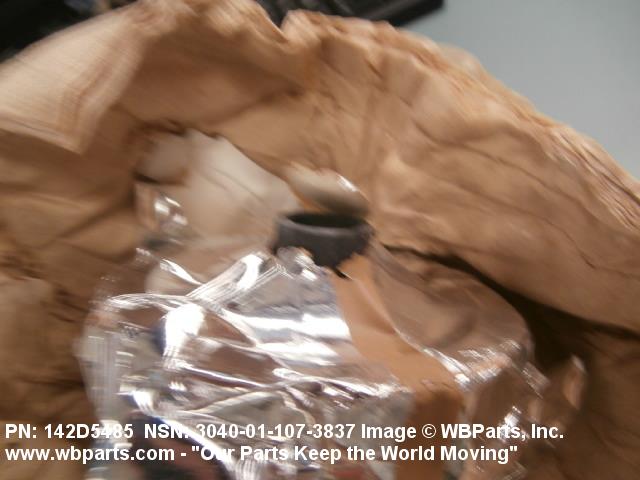

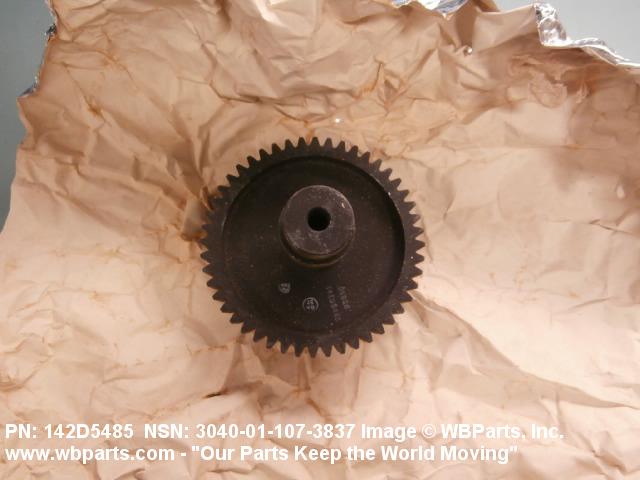

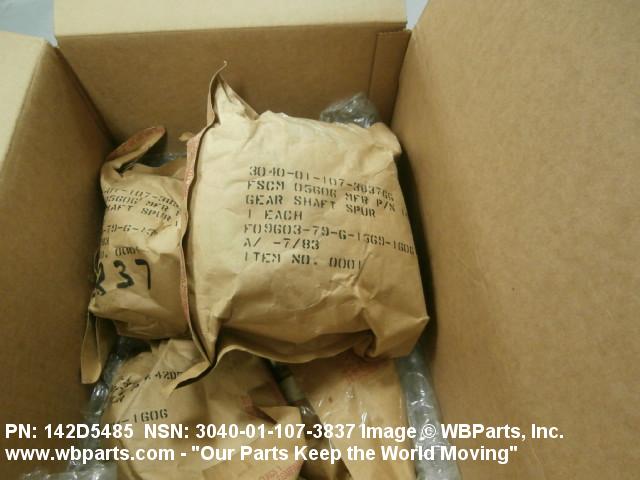

Drawings & Photos | NSN 3040-01-107-3837
Demand History | NSN 3040-01-107-3837
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-107-3837 | 2024-04-108 | 14 | DIBBS |
| 3040-01-107-3837 | 2016-03-87 | 70 | DIBBS |
| 3040-01-107-3837 | 2016-02-47 | 27 | DIBBS |
| 3040-01-107-3837 | 2016-01-04 | 10 | DIBBS |
| 3040-01-107-3837 | 2015-11-316 | 5 | DIBBS |
| 3040-01-107-3837 | 2015-10-302 | 14 | DIBBS |
| 3040-01-107-3837 | 2015-09-270 | 11 | DIBBS |
| 3040-01-107-3837 | 2015-08-237 | 4 | DIBBS |
| 3040-01-107-3837 | 2015-04-105 | 2 | United States |
| 3040-01-107-3837 | 2015-02-42 | 3 | DIBBS |
| 3040-01-107-3837 | 2014-11-327 | 9 | DIBBS |
| 3040-01-107-3837 | 2014-11-322 | 2 | United States |
| 3040-01-107-3837 | 2014-07-196 | 2 | DIBBS |
| 3040-01-107-3837 | 2014-07-195 | 14 | United States |
| 3040-01-107-3837 | 2014-06-170 | 14 | DIBBS |
Cross Reference | NSN 3040-01-107-3837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 142D5485 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-107-3837
Related Products | NSN 3040-01-107-3837
Technical Data | NSN 3040-01-107-3837
| Characteristic | Specifications |
|---|---|
| SHAFT MATERIAL | STEEL |
| GEAR MATERIAL | STEEL |
| HARDNESS RATING AND LOCATION | 33.0 ROCKWELL C MINIMUM TEETH AND 38.0 ROCKWELL C MAXIMUM TEETH |
| PRESSURE ANGLE | 20.0000 DEGREES |
| TEETH QUANTITY | 48 |

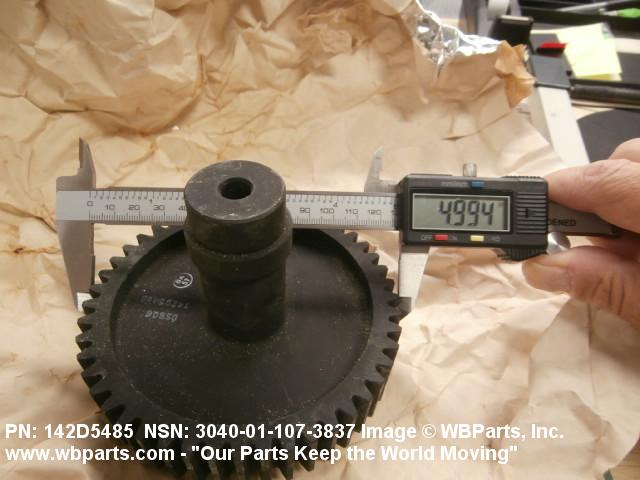

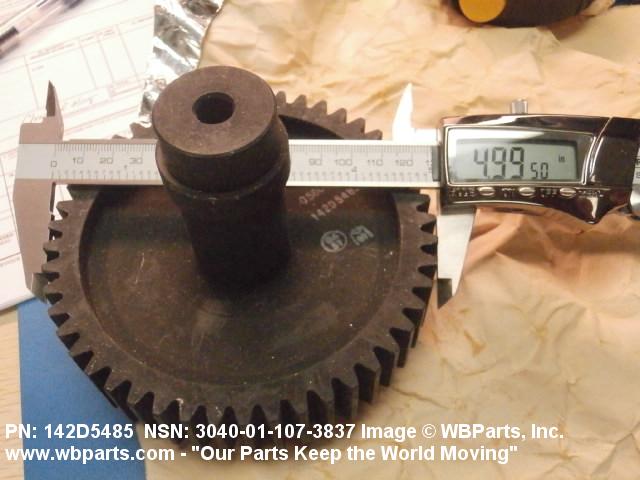

| GEAR OUTSIDE DIAMETER | 4.994 INCHES NOMINAL |
| DIAMETRAL PITCH | 10 |

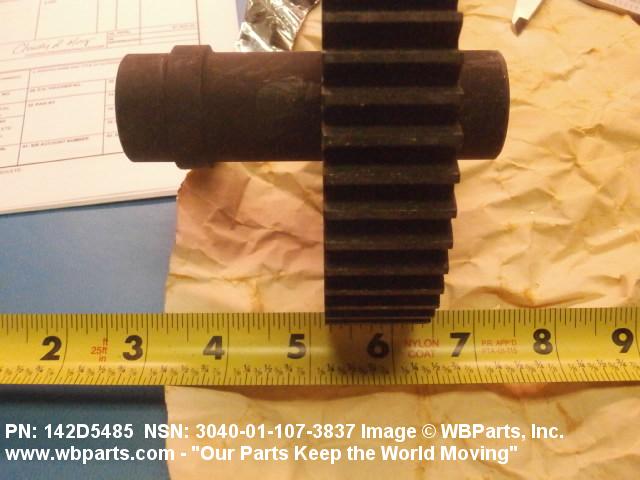

| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 05606 |
| DESIGN CONTROL REFERENCE | 142D5485 |
Restrictions/Controls & Freight Information | NSN 3040-01-107-3837
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | S | 60 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-107-3837
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GG | TG:GUNNERY EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
