NSN 3040-01-148-8825 1V285970, 1V285-970, 6B205
Product Details | HUB CLAMP
3040-01-148-8825 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 1V285970, 1V285-970, 6B205, 3040-01-148-8825, 01-148-8825, 3040011488825, 011488825
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 MAR 1983 | 01-148-8825 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-01-148-8825
Demand History | NSN 3040-01-148-8825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1V285970 | 2021-03-64 | 1 | CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-148-8825
Technical Data | NSN 3040-01-148-8825
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

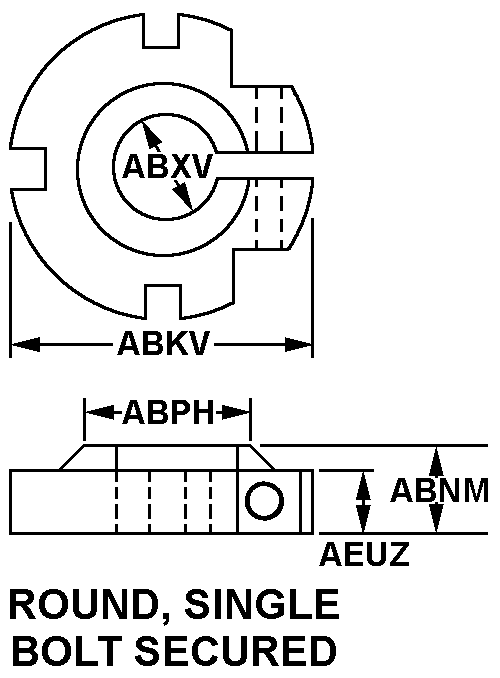

| STYLE DESIGNATOR | B6 ROUND, SINGLE BOLT SECURED |
| OUTSIDE DIAMETER | 0.6250 INCHES NOMINAL |
| THICKNESS | 0.1875 INCHES NOMINAL |
| SMALL END DIAMETER | 0.2500 INCHES NOMINAL |
| BORE DIAMETER | 0.1875 INCHES NOMINAL |
| LARGEST DIAMETER LENGTH | 0.1562 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | 2 THREADED |
| PLAIN HOLE DIAMETER | 0.0935 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| MANUFACTURERS CODE | 86887 |
| DESIGN CONTROL REFERENCE | 1V285-970 |
Restrictions/Controls & Freight Information | NSN 3040-01-148-8825
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | ZF | France ZG ZH |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
