NSN 3040-01-151-2608 1342600, 01-151-2608, 011512608
Product Details | STRAIGHT SHAFT
3040-01-151-2608 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 1342600, 3040-01-151-2608, 01-151-2608, 3040011512608, 011512608
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 15 APR 1983 | 01-151-2608 | 22109 ( SHAFT, STRAIGHT ) |

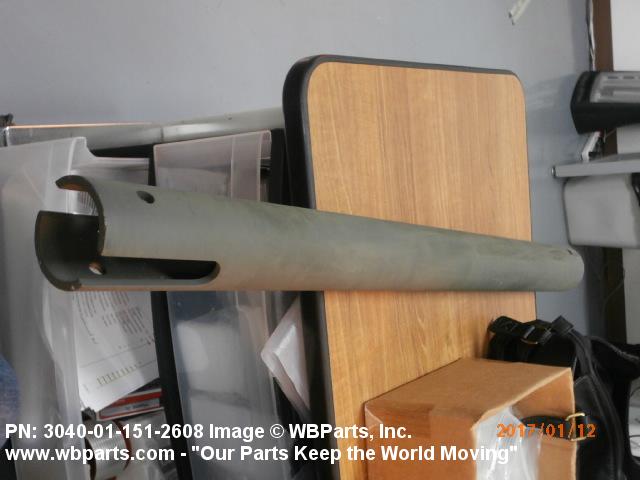

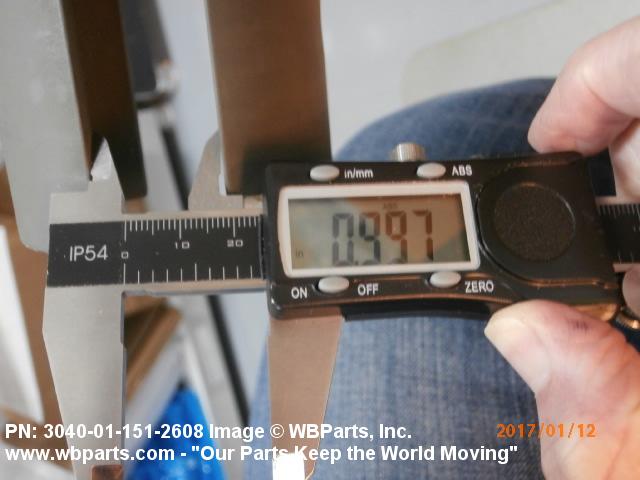

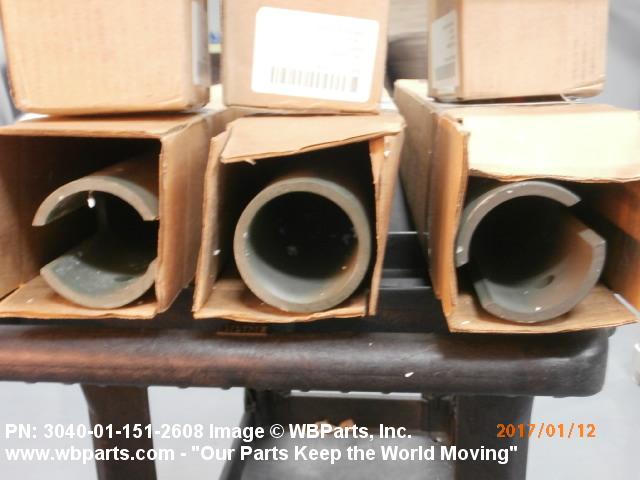

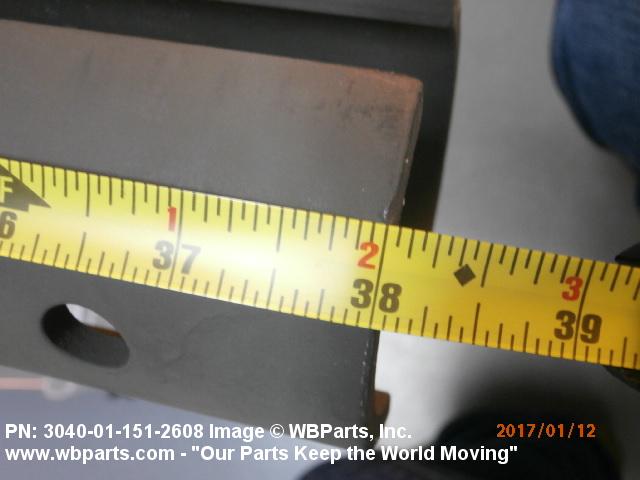

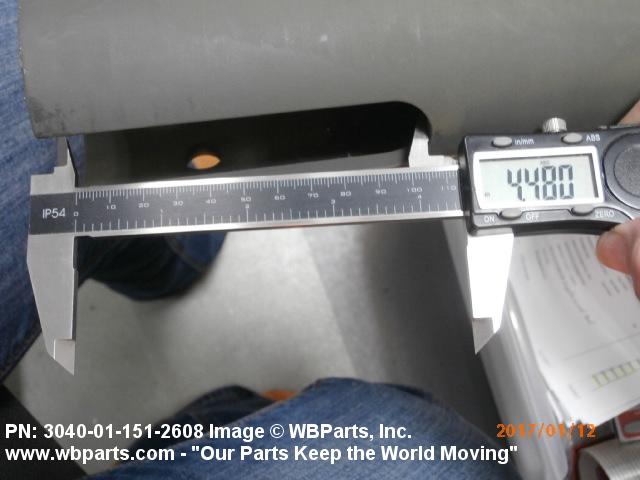

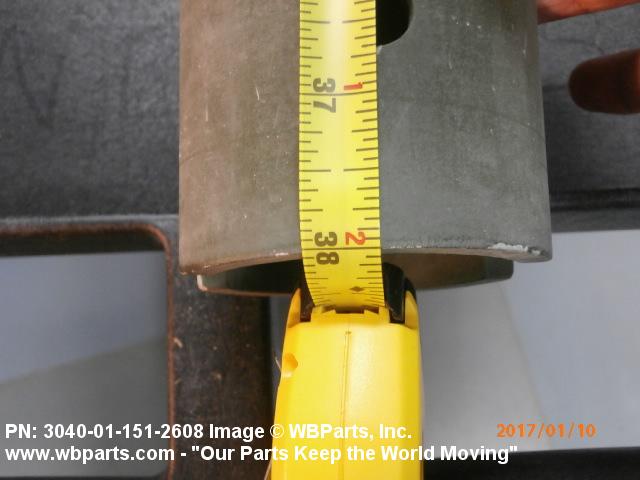

Drawings & Photos | NSN 3040-01-151-2608
Demand History | NSN 3040-01-151-2608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1342600 | 2024-06-179 | 19 | DIBBS |
| 1342600 | 2024-06-168 | 19 | DIBBS |
| 1342600 | 2024-03-64 | 19 | DIBBS |
| 1342600 | 2024-02-52 | 19 | DIBBS |
| 3040-01-151-2608 | 2018-01-29 | 39 | DIBBS |
| 3040-01-151-2608 | 2017-05-146 | 11 | United States |
| 3040-01-151-2608 | 2016-12-356 | 1 | United States |
| 3040-01-151-2608 | 2016-12-356 | 5 | United States |
| 3040-01-151-2608 | 2016-12-336 | 5 | United States |
| 3040-01-151-2608 | 2010-03-84 | 36 | DIBBS |
| 3040-01-151-2608 | 2009-04-98 | 118 | DIBBS |
| 3040-01-151-2608 | 2006-07-196 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-151-2608
Technical Data | NSN 3040-01-151-2608
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 23 UNTHREADED CROSS DRILLED |

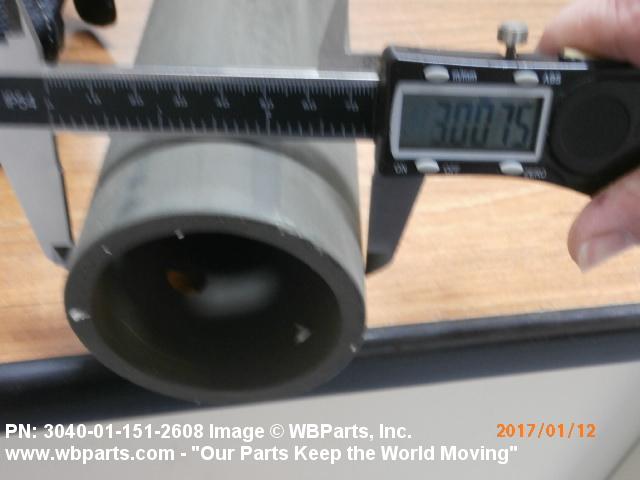

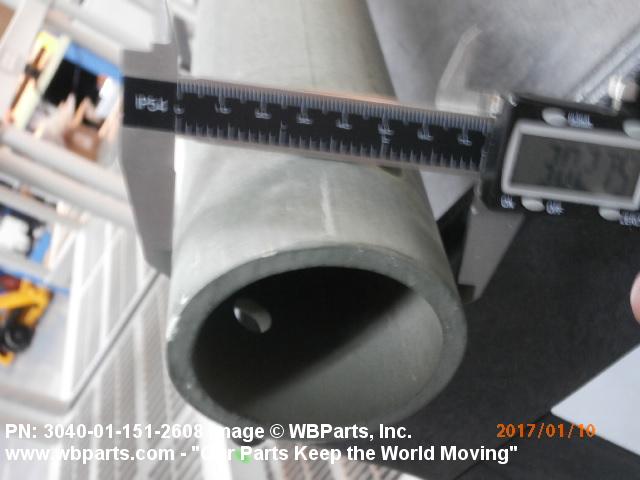

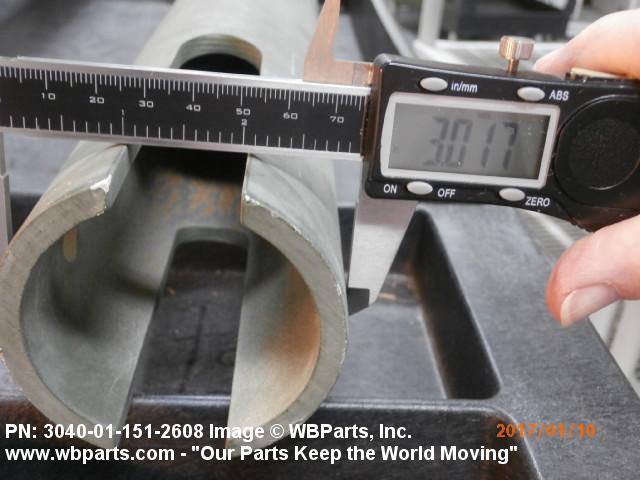

| FIRST END DIAMETER | 3.0000 INCHES NOMINAL |

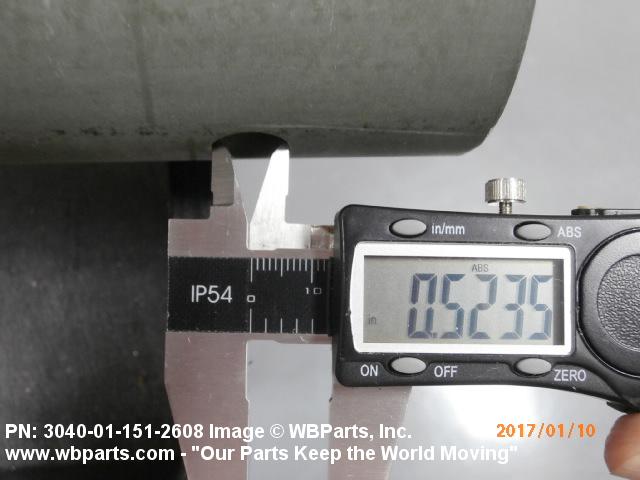

| FIRST END HOLE DIAMETER | 0.5300 INCHES NOMINAL |

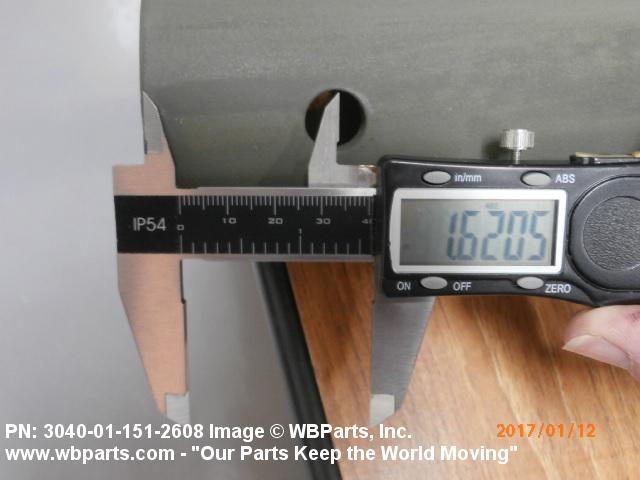

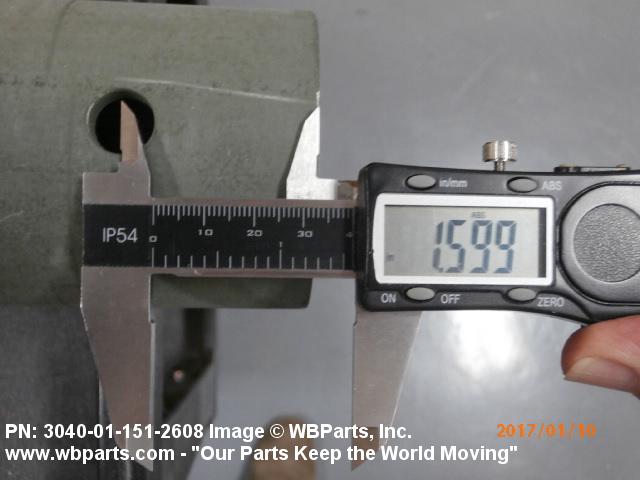

| FIRST END DISTANCE FROM HOLE CENTER TO END | 1.620 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 78 CROSS DRILLED HOLE AND SLOTTED |

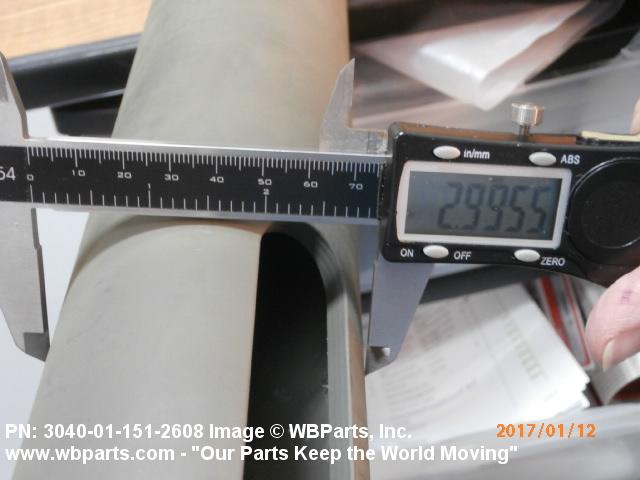

| SECOND END DIAMETER | 3.0000 INCHES NOMINAL |

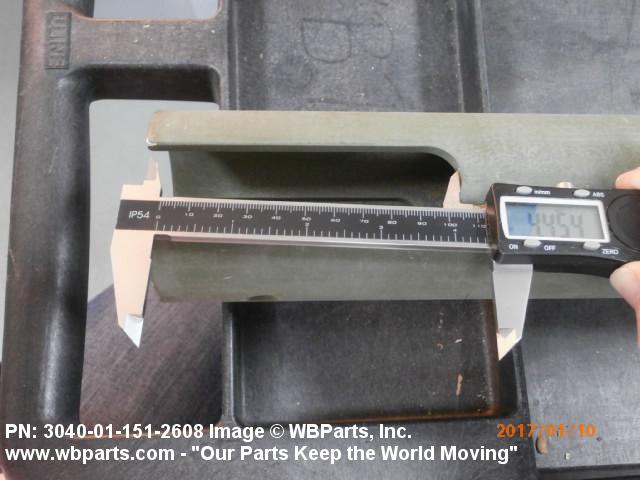

| SECOND END SLOT DEPTH | 4.500 INCHES NOMINAL |

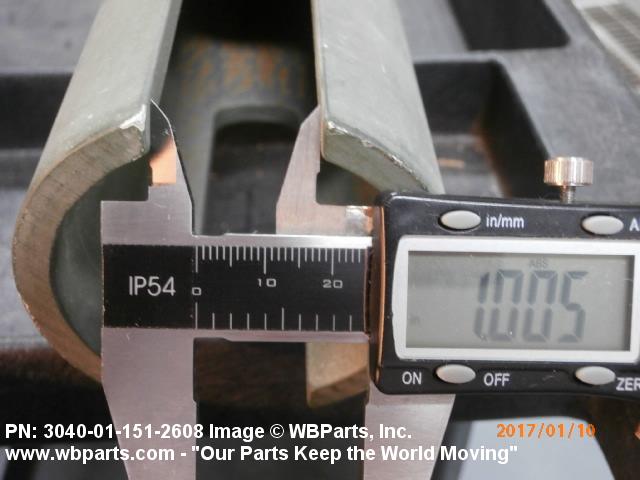

| SECOND END SLOT WIDTH | 1.000 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.5300 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 1.630 INCHES NOMINAL |

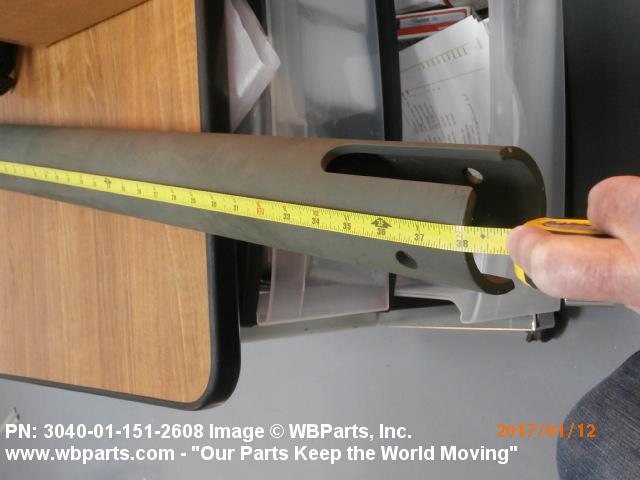

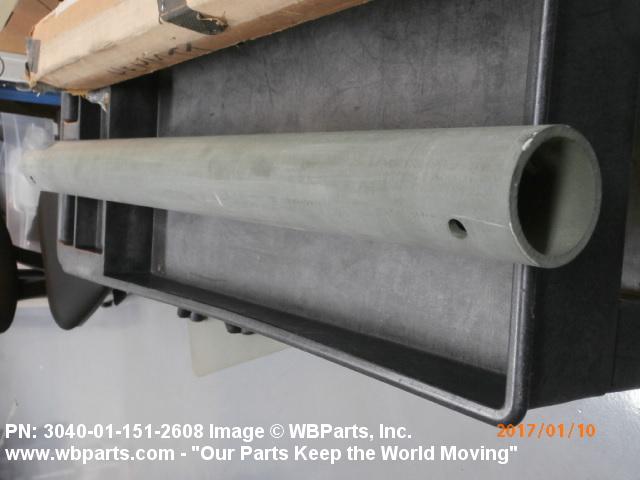

| OVERALL LENGTH | 38.000 INCHES NOMINAL |

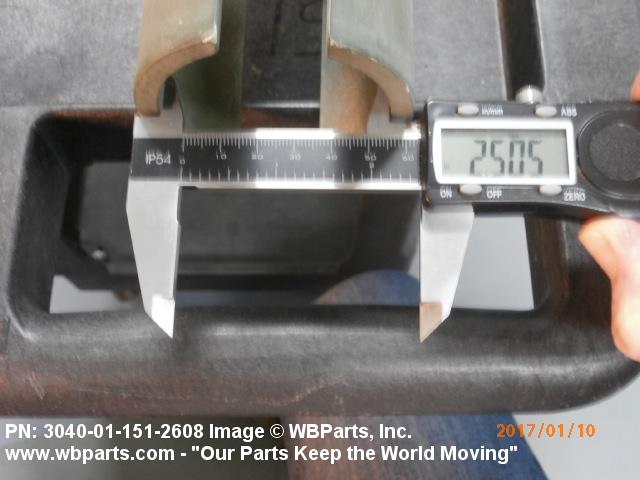

| SPECIAL FEATURES | BORE LG OF SHAFT,2.500 IN. DIA |
| III END ITEM IDENTIFICATION | 2320-01-097-0280 |
Restrictions/Controls & Freight Information | NSN 3040-01-151-2608
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-151-2608
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NR | Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
