NSN 3040-01-275-2526 7046016949, 704-6016949, 704-6016949 ASSY 97
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-01-275-2526 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 7046016949, 704-6016949, 704-6016949 ASSY 97, 7046016949ASSY97, 3040-01-275-2526, 01-275-2526, 3040012752526, 012752526
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 19 MAR 1988 | 01-275-2526 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 3040-01-275-2526
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-275-2526
Technical Data | NSN 3040-01-275-2526
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL DIAMETER | 5.000 INCHES NOMINAL |
| EXTENDED LENGTH | 15.750 INCHES NOMINAL |
| COMPRESSED LENGTH | 14.500 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 3.243 INCHES MINIMUM AND 3.245 INCHES MAXIMUM |
| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END OUTSIDE DIAMETER | 0.874 INCHES MINIMUM AND 0.876 INCHES MAXIMUM |
| FIRST END EXTERNAL THREAD LENGTH | 0.938 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNC |
| FIRST PISTON ROD END THREAD DIAMETER | 0.625 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 11 |
| FIRST PISTON ROD END THREAD CLASS | 2A |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | SCREW CYLINDER BASE |
| MOUNTING PROVISION | THREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 19 FOUR HOLE RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.750 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 6.500 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY THREAD DIAMETER | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 13 |
| MOUNTING FACILITY THREAD CLASS | 3B |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY THREAD LENGTH | 1.000 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END 1 PISTON ROD END |

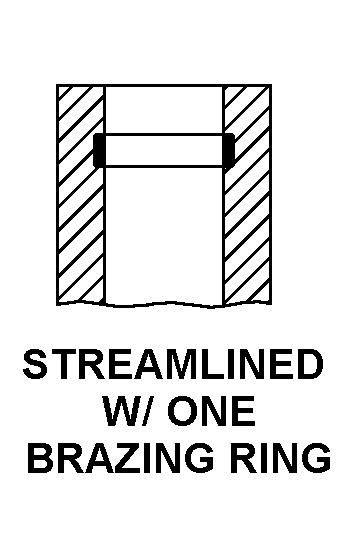

| PORT STYLE | 30 STREAMLINED WITH ONE BRAZING RING |
| INSIDE DIAMETER | 0.991 INCHES MINIMUM AND 0.993 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | SSN688 CLASS SUBMARINE |
Restrictions/Controls & Freight Information | NSN 3040-01-275-2526
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-275-2526
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
