Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-01-277-7482 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 070982, 07-0982, 172D, 172-D, 3040-01-277-7482, 01-277-7482, 3040012777482, 012777482
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 APR 1988 | 01-277-7482 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 3040-01-277-7482
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-277-7482
Technical Data | NSN 3040-01-277-7482
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| OVERALL DIAMETER | 1.560 INCHES NOMINAL |
| EXTENDED LENGTH | 5.690 INCHES NOMINAL |
| COMPRESSED LENGTH | 3.690 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.560 INCHES NOMINAL |
| BODY MATERIAL | STEEL, STAINLESS |
| BORE DIAMETER | 1.500 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END OUTSIDE DIAMETER | 0.437 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 0.4375 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNF |
| FIRST PISTON ROD END THREAD DIAMETER | 0.437 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 20 |
| FIRST PISTON ROD END THREAD CLASS | 2A |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | STUD PISTON ROD END |
| MOUNTING PROVISION | THREADED MOUNTING STUDS |

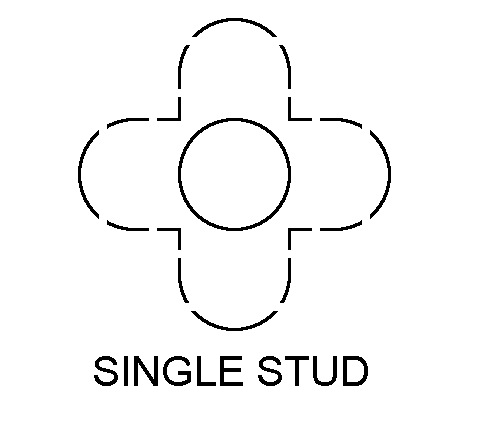

| MOUNTING PROVISION ARRANGEMENT STYLE | 35 SINGLE STUD |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | NPT |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY NOMINAL PIPE THREAD SIZE | 0.750 INCHES |
| MOUNTING FACILITY LENGTH | 0.5000 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER BASE 1 PISTON ROD END |
| PORT STYLE | 12 HIGH PRESSURE FLARE |
| PORT THREAD SERIES DESIGNATOR | NPT |
| PORT NOMINAL PIPE THREAD SIZE | 0.125 INCHES |
| SEAT ANGLE IN DEG | 37.0 |
| PRESSURE RATING | 250.0 POUNDS PER SQUARE INCH NOMINAL |
