NSN 3040-01-310-0035 6435K34, 01-310-0035, 013100035
Product Details | SHAFT COLLAR
3040-01-310-0035 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.202304000005340000000
Part Alternates: 6435K34, 3040-01-310-0035, 01-310-0035, 3040013100035, 013100035
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 OCT 1989 | 01-310-0035 | 13743 ( COLLAR, SHAFT ) |

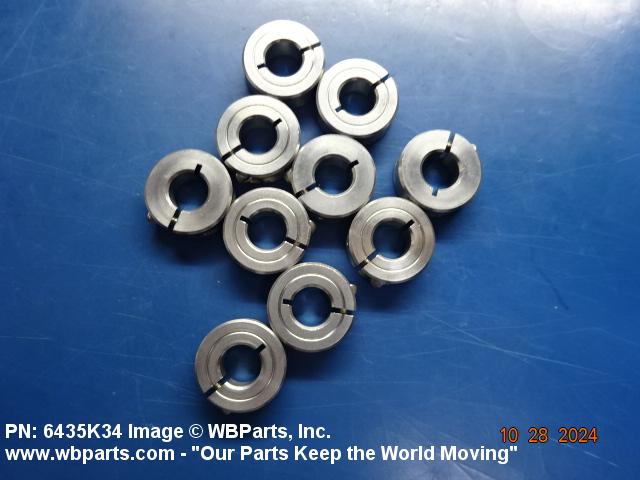

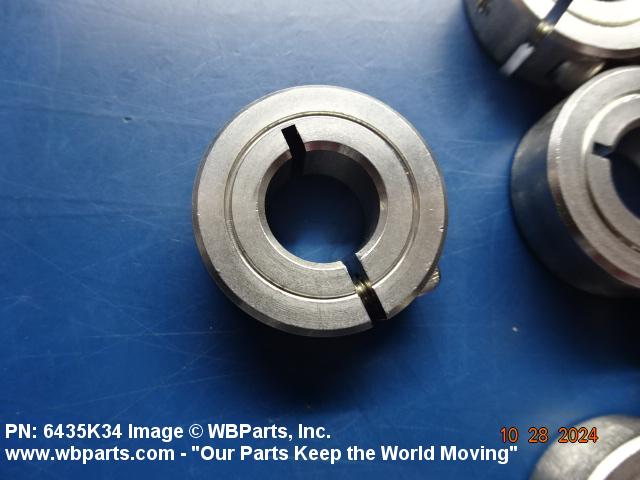

Drawings & Photos | NSN 3040-01-310-0035
Demand History | NSN 3040-01-310-0035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6435K34 | 2025-04-113 | 15 | DIBBS |
| 6435K34 | 2024-10-296 | 1 | us |
Cross Reference | NSN 3040-01-310-0035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6435K34 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-310-0035
Technical Data | NSN 3040-01-310-0035
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| STYLE DESIGNATOR | A1 PLAIN ROUND |
| OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| THICKNESS | 0.406 INCHES NOMINAL |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| SECURING HOLE QUANTITY | 1 |
| ANGLE BETWEEN CENTERLINES OF SECURING HOLES IN DEG | 90.0 |
| SECURING HOLE TYPE AND LOCATION | THREADED SINGLE HOLE |
| III END ITEM IDENTIFICATION | 6625-01-237-4658 |
Restrictions/Controls & Freight Information | NSN 3040-01-310-0035
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
