Product Details | PAWL
3040-01-363-2541 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: P1429208B, P1429-208B, 53X02174, 53X-02-174, 3040-01-363-2541, 01-363-2541, 3040013632541, 013632541
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 AUG 1992 | 01-363-2541 | 22101 ( PAWL ) |

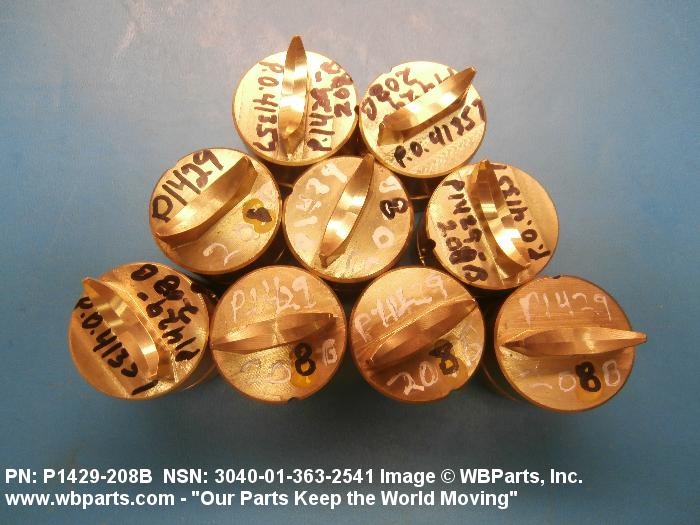

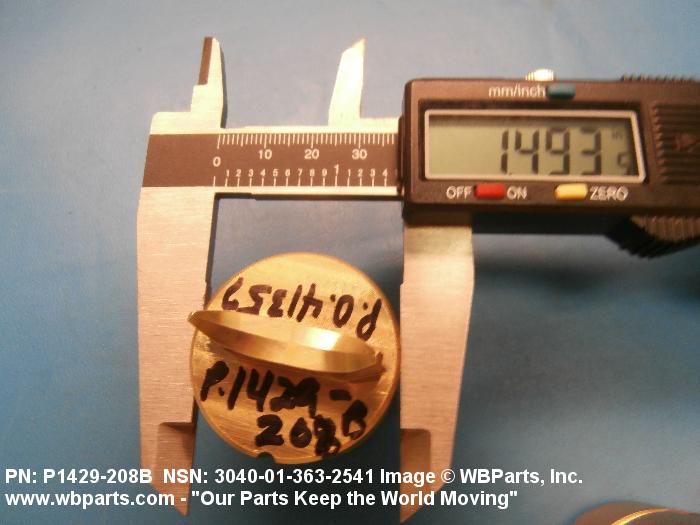

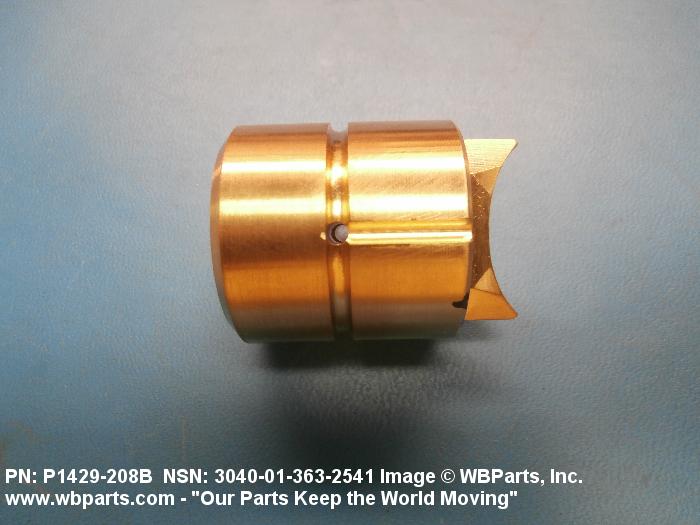

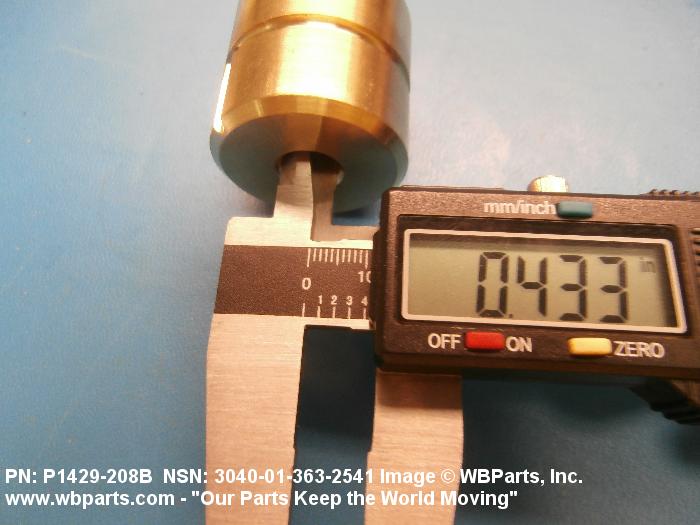

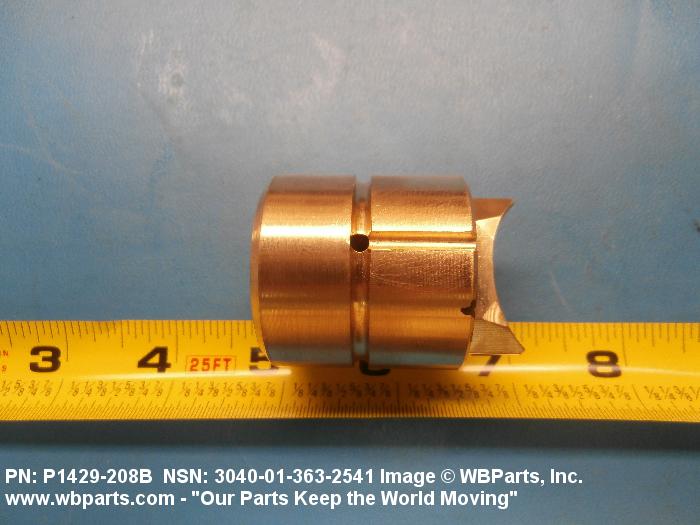

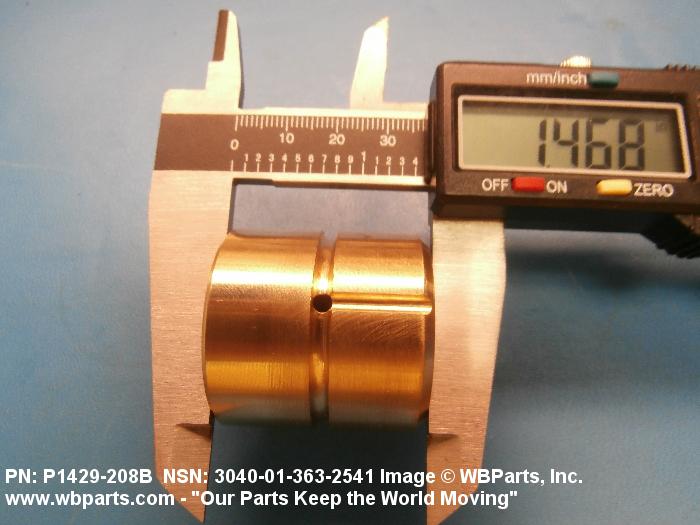

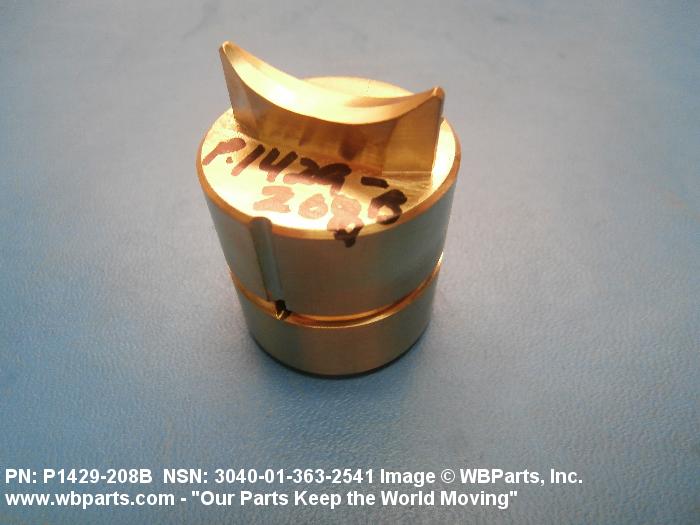

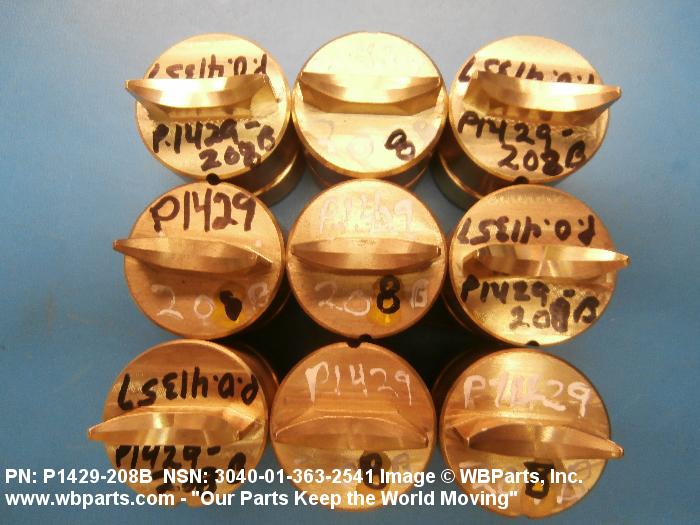

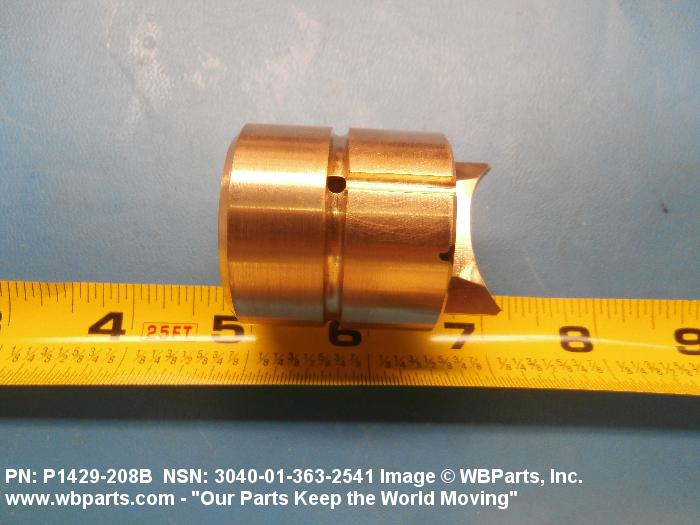

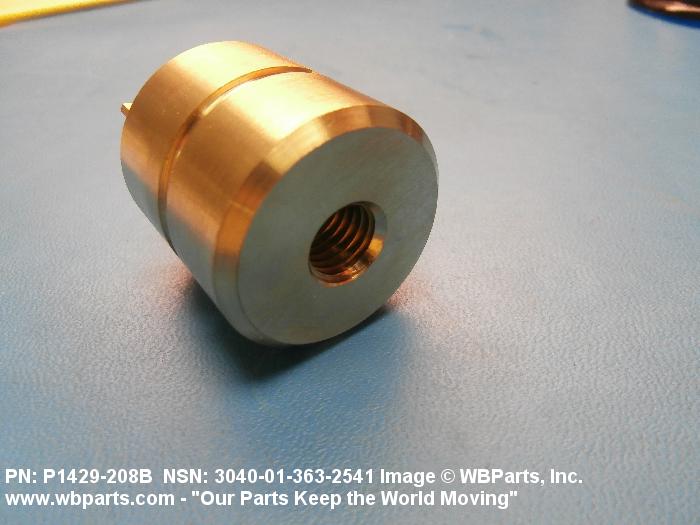

Drawings & Photos | NSN 3040-01-363-2541
Demand History | NSN 3040-01-363-2541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P1429-208B | 2022-12-01 | 7 | DIBBS |
| P1429-208B | 2020-10-20 | 6 | DIBBS |
| 3040-01-363-2541 | 2017-11-02 | 10 | DIBBS |
| 3040-01-363-2541 | 2016-03-31 | 7 | DIBBS |
| 3040-01-363-2541 | 2014-08-19 | 9 | United States |
| 3040-01-363-2541 | 2014-08-07 | 9 | DIBBS |
| 3040-01-363-2541 | 2014-07-17 | 1 | DIBBS |
| 3040-01-363-2541 | 2011-02-09 | 3 | DIBBS |
| 3040-01-363-2541 | 2010-11-04 | 2 | DIBBS |
| 3040-01-363-2541 | 2008-09-11 | 2 | DIBBS |
| 3040-01-363-2541 | 2008-03-03 | 4 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-01-363-2541
3040-01-363-2542, 3040-01-363-2543, 3040-01-363-2544, 3040-01-363-2549, 3040-01-363-2768
Technical Data | NSN 3040-01-363-2541
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.960 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3040-01-363-2541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-363-2541
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
