NSN 3110-00-007-6910 00-007-6910, 000076910
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-007-6910 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 3110-00-007-6910, 00-007-6910, 3110000076910, 000076910
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 00-007-6910 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-007-6910
Cross Reference | NSN 3110-00-007-6910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 488672 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 488672 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| 488672 | 52676 | SKF USA INC. |
| 488672 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 488673 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 488675 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 488679 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 488680 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 748015 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 771872 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-007-6910
Technical Data | NSN 3110-00-007-6910
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER STEEL ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | PWA 723,97497 MFR REF 2ND MATERIAL RESPONSE INNER RING PWA 723,97497 MFR REF 1ST MATERIAL RESPONSE OUTER RING PWA 723,97497 MFR REF 3RD MATERIAL RESPONSE ROLLER |

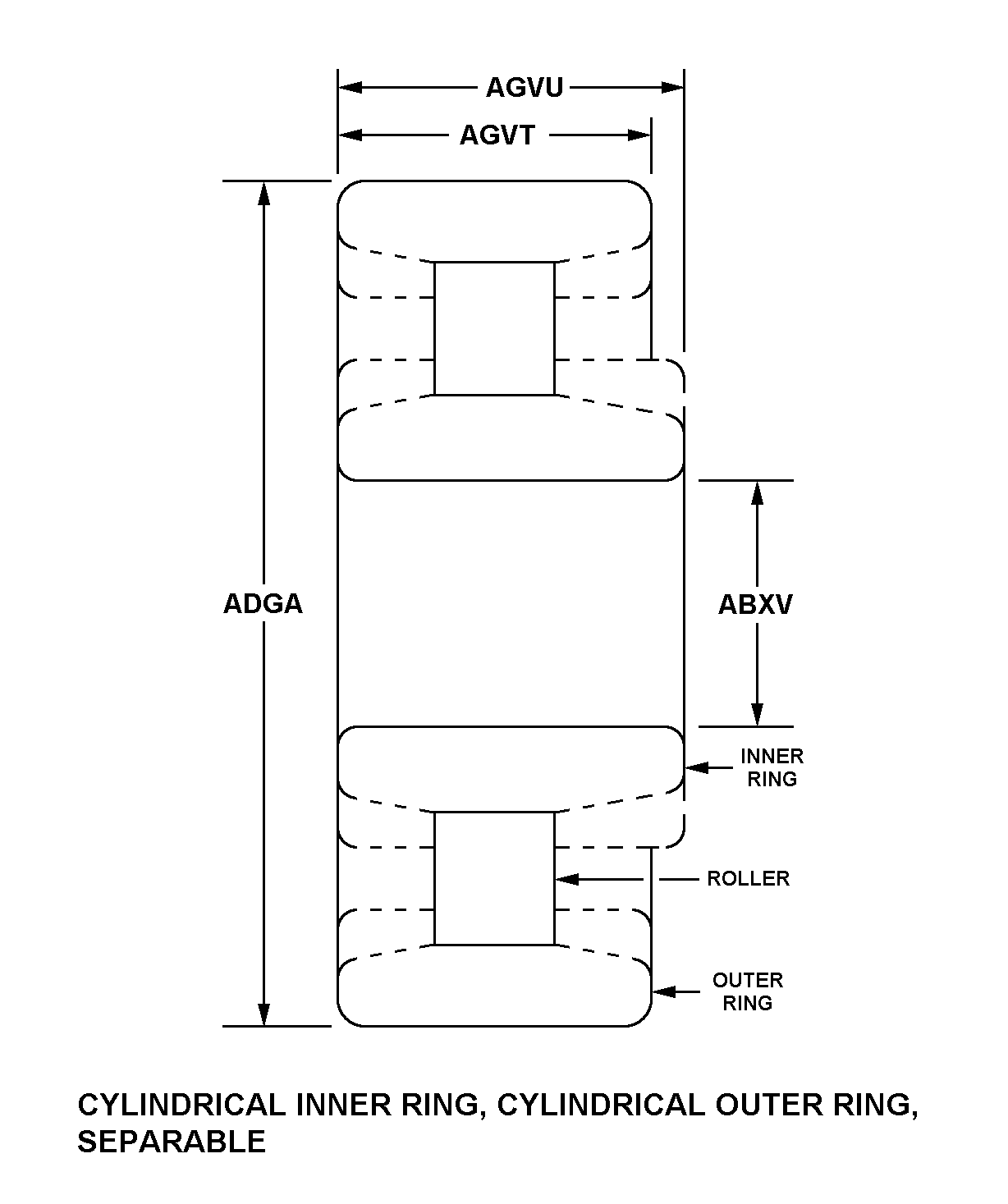

| STYLE DESIGNATOR | 266A CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| BORE DIAMETER | 130.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 180.0 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 22.0 MILLIMETERS NOMINAL |
| INNER RING WIDTH | 26.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0036 INCHES MINIMUM RADIAL AND 0.0052 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | SILVER PLATE RETAINER,AMS 2412 |
| III END ITEM IDENTIFICATION | ACFT ENG TF-33 |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 703016 |
Restrictions/Controls & Freight Information | NSN 3110-00-007-6910
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
