NSN 3110-00-023-4022 MS20200KP10, MS2764010, MS27640-10
Product Details | AIRFRAME BALL BEARING
3110-00-023-4022 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS20200KP10, MS2764010, MS27640-10, AN200KP10, AN201KP10A, AS27640, K10ANG25, K10FS160, KP10FS10160X, KP10FS464, KP10, 3110-00-023-4022, 00-023-4022, 3110000234022, 000234022
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JAN 1972 | 00-023-4022 | 00041 ( BEARING, BALL, AIRFRAME ) |

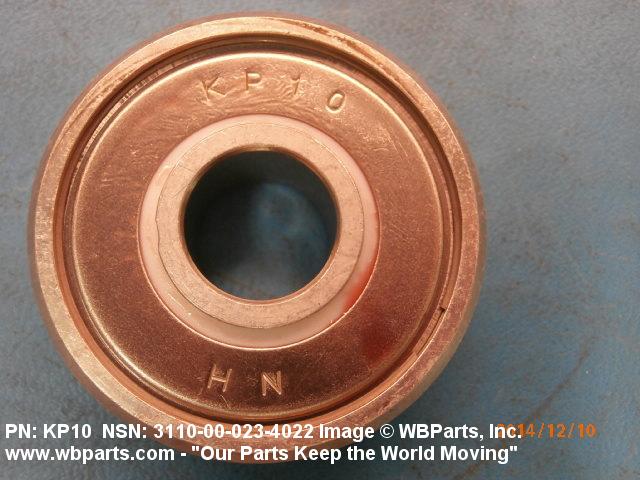

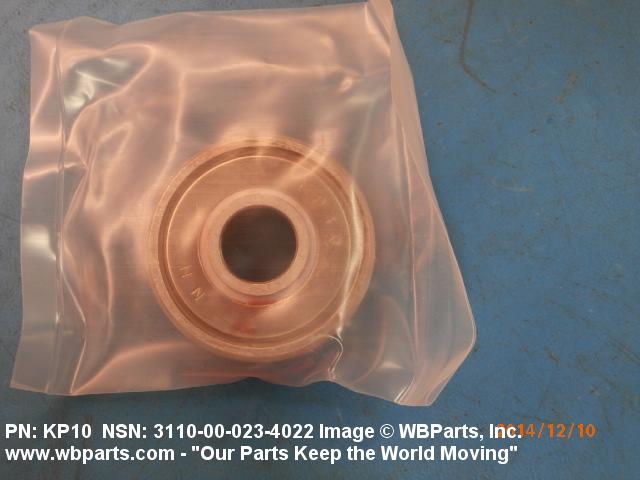

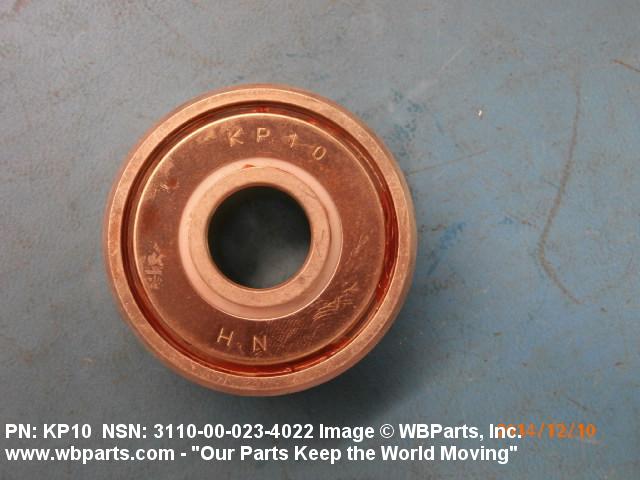

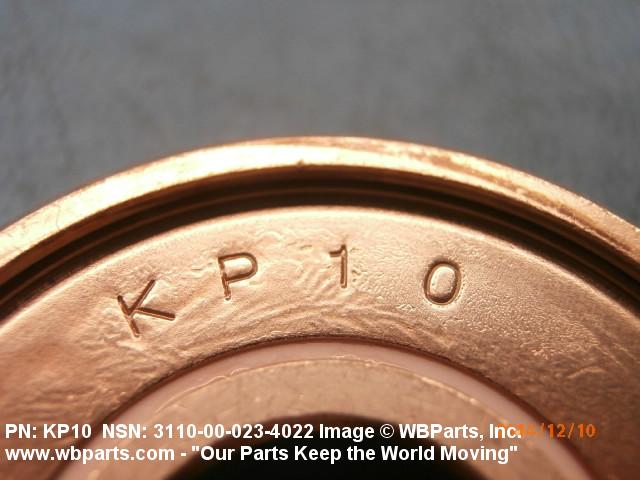

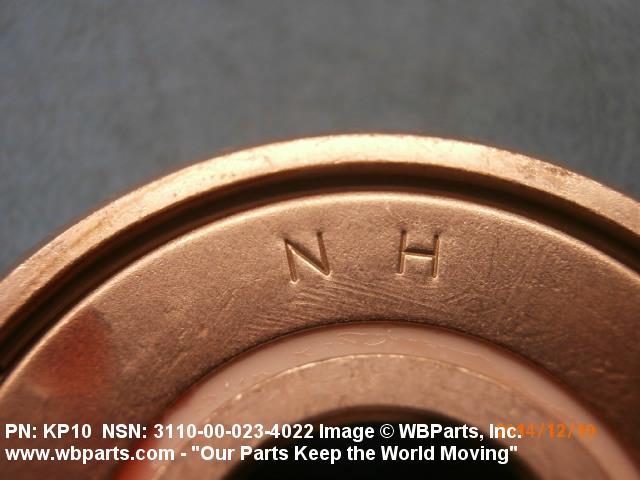

Drawings & Photos | NSN 3110-00-023-4022
Demand History | NSN 3110-00-023-4022
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-023-4022 | 2023-01-11 | 2 | US |
| 3110-00-023-4022 | 2021-10-302 | 40 | Malaysia |
| 3110-00-023-4022 | 2021-08-231 | 38 | Malaysia |
| MS2764010 | 2021-06-173 | 14 | Malaysia |
| MS2764010 | 2021-06-166 | 14 | Malaysia |
| 3110-00-023-4022 | 2021-06-166 | 14 | MY |
| 3110-00-023-4022 | 2019-07-186 | 22 | US |
| 3110-00-023-4022 | 2018-08-239 | 1 | DIBBS-RFPs |
| 3110-00-023-4022 | 2017-10-277 | 1460 | DIBBS |
| 3110-00-023-4022 | 2017-10-276 | 1125 | DIBBS |
| 3110-00-023-4022 | 2017-08-240 | 452 | DIBBS |
| 3110-00-023-4022 | 2017-07-197 | 542 | DIBBS |
| 3110-00-023-4022 | 2017-07-192 | 462 | DIBBS |
| AN201KP10A | 2017-04-115 | 2 | United States |
| 3110-00-023-4022 | 2016-12-356 | 174 | DIBBS |
| 3110-00-023-4022 | 2016-10-298 | 168 | DIBBS |
| 3110-00-023-4022 | 2016-08-238 | 20 | United States |
| 3110-00-023-4022 | 2016-01-11 | 1654 | DIBBS |
| KP10 | 2015-03-62 | 40 | United States |
| AN200KP10 | 2015-02-41 | 2 | United States |
| KP10 | 2014-11-330 | 4 | United States |
| KP10 | 2014-11-323 | 4 | United States |
| 3110-00-023-4022 | 2014-08-238 | 1 | US |
| 3110-00-023-4022 | 2014-08-238 | 5 | US |
| MS2764010 | 2014-05-149 | 3 | Sri Lanka |
| MS2764010 | 2013-09-247 | 40 | US |
| 3110-00-023-4022 | 2013-09-246 | 2 | United States |
| MS2764010 | 2013-08-240 | 2 | US |
| MS2764010 | 2013-03-70 | 10 | US |
| MS20200KP10 | 2012-11-310 | 15 | |
| MS27640-10 | 2012-11-310 | 12 | |
| MS2764010 | 2012-06-172 | 1 | Canada |
| KP10 | 2011-09-251 | 400 | United States |
| 3110-00-023-4022 | 2011-08-223 | 1 | US |
| MS20200KP10 | 2011-06-179 | 1 | US |
| KP10FS464 | 2011-04-115 | 10 | United States |
| KP10FS464 | 2011-04-97 | 10 | Spain |
| MS2764010 | 2011-04-97 | 10 | Spain |
| KP10FS464 | 2010-07-189 | 10 | United States |
| 3110-00-023-4022 | 2010-06-161 | 12 | US |
| MS20200KP10 | 2010-05-140 | 12 | Italy |
| 3110-00-023-4022 | 2010-05-124 | 762 | DIBBS |
| KP10FS464 | 2010-04-105 | 12 | US |
| MS20200KP10 | 2010-04-105 | 12 | US |
| 3110-00-023-4022 | 2010-02-57 | 149 | DIBBS |
| 3110-00-023-4022 | 2010-02-39 | 8 | US |
| MS20200KP10 | 2009-11-306 | 30 | Italy |
| AN201KP10A | 2009-10-293 | 4 | US |
| MS20200KP10 | 2009-01-28 | 100 | US |
| MS2764010 | 2008-11-308 | 1 | US |
| AN200KP10 | 2008-04-106 | 25 | United States |
| AN200KP10 | 2008-04-106 | 50 | United States |
| MS2764010 | 2008-01-25 | 14 | Singapore |
| MS2764010 | 2007-12-344 | 2 | US |
| 3110-00-023-4022 | 2007-10-288 | 4 | US |
Cross Reference | NSN 3110-00-023-4022
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN200KP10 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN201KP10A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS27640 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| K10ANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K10FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP10 | 21760 | SCHATZ BEARING CORPORATION |
| KP10 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| KP10FS10160X | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP10FS464 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| KP10FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MS20200KP10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27640-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27640-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-023-4022
Related Products | NSN 3110-00-023-4022
Technical Data | NSN 3110-00-023-4022
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.6250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.9375 INCHES NOMINAL |

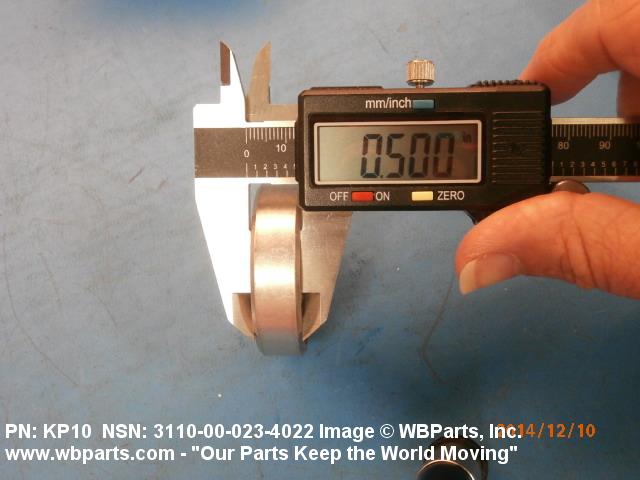

| OUTER RING WIDTH | 0.5000 INCHES NOMINAL |

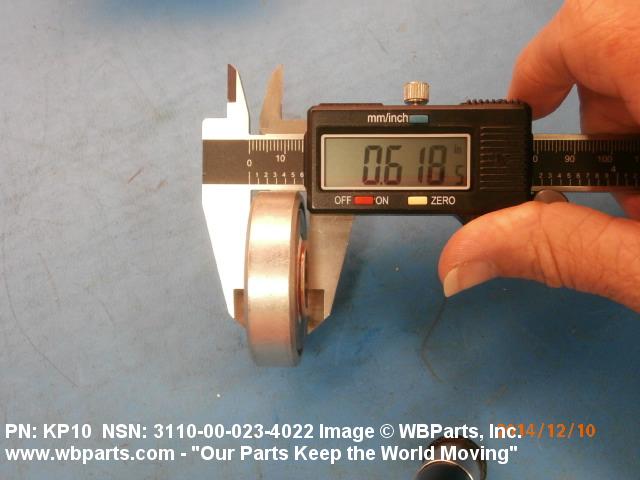

| INNER RING WIDTH | 0.6200 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | 80 PERCENT OF MIL-G-81322,INTERNAL RADIAL CLEARANCE 0.0004 IN.MIN,0.0010 IN. MAX HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG F,RADIAL AND LATERAL ECCENTRICITY INNER RING 0.0010 IN. OUTER RING 0.0016 IN. |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27640-10 |
Restrictions/Controls & Freight Information | NSN 3110-00-023-4022
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
