NSN 3110-00-027-7423 MS20201KP12, MS20201KP12A, MS2764112

Product Details | AIRFRAME BALL BEARING

3110-00-027-7423 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS20201KP12, MS20201KP12A, MS2764112, MS27641-12, MS2764112A, MS27641KP12A, MKP12AFS464, AN201KP12A, AS27641, AS7949 , KP12A, KP12AFS464, KRP12A, X110387, 1216385212, 121-63852-12, 561640432531, 561-6404325-31, 3110-00-027-7423, 00-027-7423, 3110000277423, 000277423, 211051803

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	22 JAN 1972	00-027-7423	00041 ( BEARING, BALL, AIRFRAME )

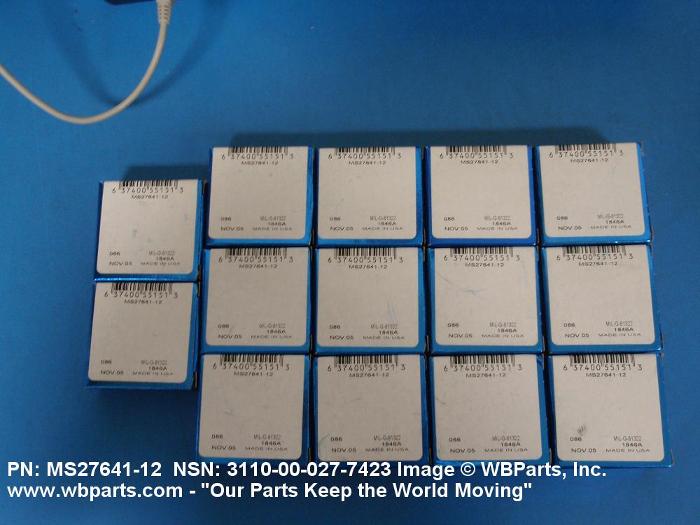

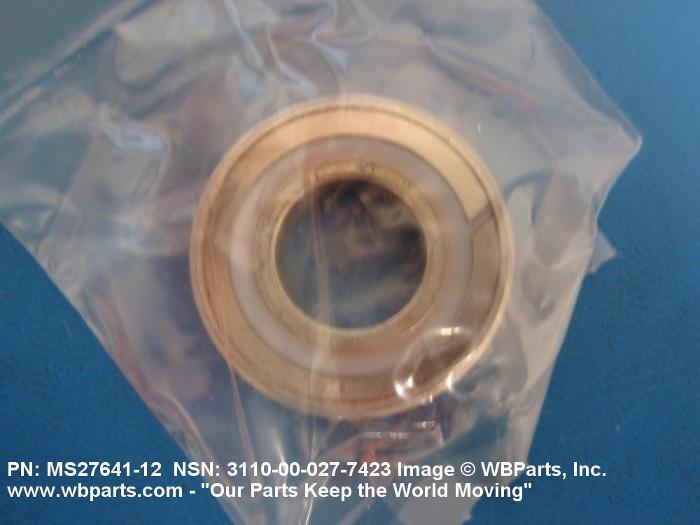

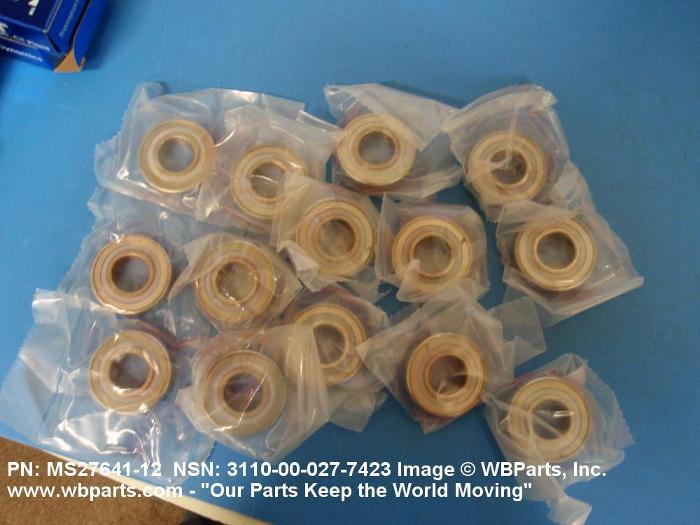

Drawings & Photos | NSN 3110-00-027-7423

Part Number	Request Date	QTY	Origin
3110-00-027-7423	2024-08-214	322	United States
MS20201KP12A	2024-07-208	8	United States
3110-00-027-7423	2024-07-199	25	United States
3110-00-027-7423	2024-07-190	4	US
3110-00-027-7423	2024-01-18	15	IN
3110-00-027-7423	2022-07-182	2	United States
KP12AFS464	2021-12-343	36	Vietnam
3110-00-027-7423	2021-05-130	4	US
3110-00-027-7423	2020-12-344	8	United States
AN201KP12A	2020-12-338	6	United States
AN201KP12A	2020-12-338	8	United States
MS2764112	2020-10-289	2	South Africa
KP12AFS464	2020-07-202	10	Vietnam
KP12A	2019-07-182	6	Vietnam
KP12AFS464	2019-03-77	40	Vietnam
3110-00-027-7423	2017-10-284	1	DIBBS-RFPs
MS2764112	2016-05-152	2	South Africa
MS2764112	2016-03-75	2	United States
MS2764112	2016-03-75	4	United States
MS2764112	2016-03-75	8	United States
MS2764112	2016-03-75	15	United States
MS2764112	2016-03-75	30	United States
MS2764112	2016-03-75	60	United States
MS2764112	2016-03-75	120	United States
MS2764112	2016-03-75	410	United States
MS2764112	2016-03-75	820	United States
3110-00-027-7423	2013-07-196	800	US
3110-00-027-7423	2013-07-189	806	United States
MS2764112	2013-07-189	806	United States
3110-00-027-7423	2013-01-28	4138	DIBBS
3110-00-027-7423	2012-10-305	850	DIBBS
3110-00-027-7423	2012-08-233	1204	DIBBS
3110-00-027-7423	2012-07-199	485	United States
3110-00-027-7423	2012-07-193	483	DIBBS
MS2764112	2012-05-136	838	US
MS2764112	2012-05-136	2000	US
MS2764112	2012-05-136	3600	US
3110-00-027-7423	2012-03-89	1017	DIBBS
KP12A	2011-10-287	10	CA
3110-00-027-7423	2011-08-230	801	DIBBS
3110-00-027-7423	2011-08-224	20	US
KP12AFS464	2011-05-130	100	US
KP12A	2011-05-122	10	us
AS27641	2011-04-105	10	US
KP12A	2011-04-98	50	Italy
MS2764112	2010-09-263	1552	United States
MS2764112	2010-06-165	2	US
3110-00-027-7423	2009-09-271	1100	US
KP12AFS464	2009-09-260	12	US
KP12AFS464	2009-09-259	12	US
KP12AFS464	2009-08-236	4	US
KP12AFS464	2009-08-236	4	US
KP12AFS464	2009-08-236	4	US
KP12A	2009-08-230	3	US
MS2764112	2009-06-174	318	United States
KP12A	2008-12-353	6	US
KP12AFS464	2008-09-245	56	US
3110-00-027-7423	2008-08-232	14	United States
AN201KP12A	2008-07-189	1	US
3110-00-027-7423	2007-11-321	8000	DIBBS
MS2764112	2007-11-306	2	us
KP12AFS464	2007-09-248	50	US
KP12A	2007-09-247	5	DE
3110-00-027-7423	2007-07-187	2000	DIBBS
3110-00-027-7423	2007-02-39	728	DIBBS
KP12A	2006-10-285	2	US

Cross Reference | NSN 3110-00-027-7423

Part Number	Cage Code	Manufacturer
121-63852-12	94697	MOOG, INC.
211051803	53711	NAVAL SEA SYSTEMS COMMAND
561-6404325-31	53711	NAVAL SEA SYSTEMS COMMAND
AN201KP12A	80059	JOINT AIRCRAFT COMMITTEE
AS27641	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7949	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KP12A	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KP12AFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KRP12A	50632	KAMATICS CORPORATION
MKP12AFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS20201KP12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20201KP12A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641+12A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641-12	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27641-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641KP12A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
X110387	01121	ROCKWELL AUTOMATION, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-027-7423

Compare

Related Products | NSN 3110-00-027-7423

3110-00-027-7554, 3110-00-027-7932, 3110-00-027-8021, 3110-00-027-8142, 3110-00-027-8143

Technical Data | NSN 3110-00-027-7423

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	0.7500 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.6250 INCHES NOMINAL
OUTER RING WIDTH	0.3750 INCHES NOMINAL
INNER RING WIDTH	0.4370 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,INTERNAL RADIAL CLEARANCE 0.0004- 0.0010 IN.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG. F,RADIAL AND LATERAL ECCENTRICITY INNER RING 0.0010 IN. OUTER RING 0.0016 IN.

Restrictions/Controls & Freight Information | NSN 3110-00-027-7423

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-027-7423

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
