NSN 3110-00-044-2269 MS1906016, MS19060-16, MS190604804
Product Details | BEARING BALL
3110-00-044-2269 A homogenous spherical body, a series of which provides the rolling elements in a BEARING, BALL (as modified). The item is designed primarily to alleviate friction. It may have other usages such as the checking component in a ball-type check valve. Excludes BALL, CHECK; BALL, VALVE, PORTED.
Part Alternates: MS1906016, MS19060-16, MS190604804, MS19060-4804, MS946101, MS9461-01, H3184859 PIECE 9, H3184859PIECE9, HPS402, HPS40-2, MILB1083, MIL-B-1083, 341789A1, 3632403G1, 363-2403G1 , 0625SS, 104223-000, 26328554, 2632855-4, 595-601-062, 69923C2, 3110-00-044-2269, 00-044-2269, 3110000442269, 000442269, 104223000, 595601062
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-044-2269 | 00036 ( BALL, BEARING ) |

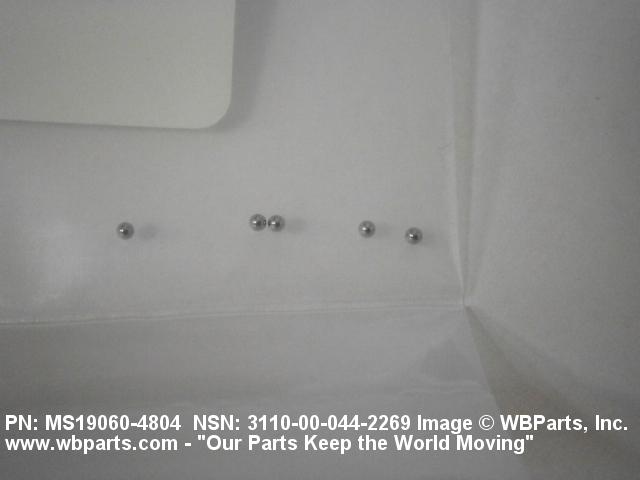

Drawings & Photos | NSN 3110-00-044-2269
Demand History | NSN 3110-00-044-2269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS190604804 | 2021-05-123 | 105 | United States |
| MS1906016 | 2020-10-287 | 25 | US |
| MS190604804 | 2020-10-287 | 25 | US |
| 3110-00-044-2269 | 2017-11-317 | 380 | DIBBS |
| 3110-00-044-2269 | 2017-11-306 | 380 | DIBBS |
| 3110-00-044-2269 | 2017-10-282 | 2 | US |
| 3110-00-044-2269 | 2014-04-94 | 1 | United States |
| 3110-00-044-2269 | 2012-05-142 | 1 | PK |
| 3110-00-044-2269 | 2012-02-58 | 500 | PK |
| MS1906016 | 2011-11-326 | 5 | United States |
| MS1906016 | 2011-05-147 | 75 | us |
| 3110-00-044-2269 | 2011-02-45 | 6 | TW |
| MS190604804 | 2010-02-47 | 1250 | US |
| 3110-00-044-2269 | 2008-02-59 | 920 | United States |
Cross Reference | NSN 3110-00-044-2269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0625SS | 52676 | SKF USA INC. |
| 104223-000 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 2632855-4 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 341789A1 | 05160 | MICHIGAN DYNAMICS INC |
| 595-601-062 | 62002 | LIFE SUPPORT PRODUCTS INC |
| 69923C2 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| H3184859 PIECE 9 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| HPS40-2 | 70236 | TACTAIR FLUID CONTROLS, INC. |
| HPS40-2 | 84685 | TELEDYNE HYDRA-POWER DIV OF TELEDYNE INC |
| MIL-B-1083 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS19060 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS19060-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS19060-4804 | 33068 | TRIUMPH ACTUATION SYSTEMS - CONNECTICUT, LLC |
| MS19060-4804 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS19060-4804 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS9461-01 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-044-2269
Technical Data | NSN 3110-00-044-2269
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440A OR STEEL COMP 440C OVERALL |
| STYLE DESIGNATOR | 520 BALL |
| ROLLING ELEMENT DIAMETER | 0.0625 INCHES NOMINAL |
| SPECIAL FEATURES | AFBMA STANDARD TOLERANCE FOR BALLS,GRADE 48 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-1083 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS19060-4804 |
Restrictions/Controls & Freight Information | NSN 3110-00-044-2269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
