NSN 3110-00-065-8164 462808, 6854949, 00-065-8164
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-065-8164 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 462808, 6854949, 3110-00-065-8164, 00-065-8164, 3110000658164, 000658164
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JUN 1967 | 00-065-8164 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-065-8164
Demand History | NSN 3110-00-065-8164
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 462808 | 2011-10-298 | 15 | Hong Kong |
| 3110-00-065-8164 | 2011-10-287 | 15 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-065-8164
Related Products | NSN 3110-00-065-8164
Technical Data | NSN 3110-00-065-8164
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP M50 INNER RING STEEL COMP M50 OUTER RING STEEL COMP 4340 RETAINER STEEL COMP M50 ROLLER |

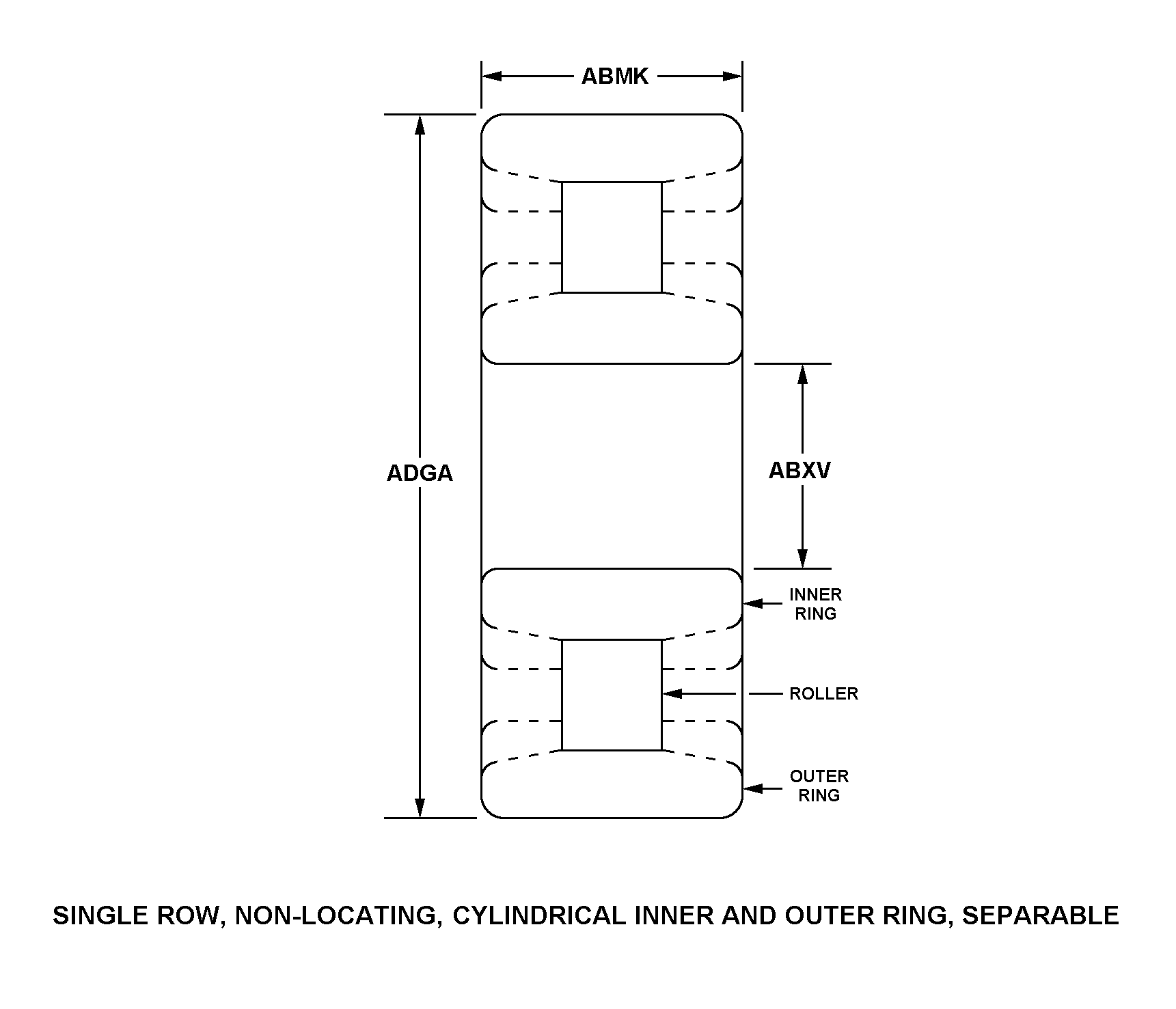

| STYLE DESIGNATOR | 252D SINGLE ROW, NON-LOCATING, CYLINDRICAL INNER AND OUTER RING, SEPARABLE |
| OVERALL WIDTH | 1.0630 INCHES NOMINAL |
| BORE DIAMETER | 2.5588 INCHES MINIMUM AND 2.5591 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.1837 INCHES MINIMUM AND 4.1840 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0017 INCHES MINIMUM RADIAL AND 0.0022 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | SILVER PLATE SEPARATOR PER AMS2412 0.001-0.003THK |
| MANUFACTURERS CODE | 63005 |
| MFR SOURCE CONTROLLING REFERENCE | 6854949 |
Restrictions/Controls & Freight Information | NSN 3110-00-065-8164
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-065-8164
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
