NSN 3110-00-115-6627 AAVF9330R0102, AAVF9330R0-102, 1538M17P01
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-115-6627 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: AAVF9330R0102, AAVF9330R0-102, 1538M17P01, 4616642, 461664-2, 597406, 5RUH18308, 5RUH1830-8, 9272M57, 9272M57P01, 9658M53P02, 9658M53P03, 3110-00-115-6627, 00-115-6627, 3110001156627, 001156627
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 SEP 1968 | 00-115-6627 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |

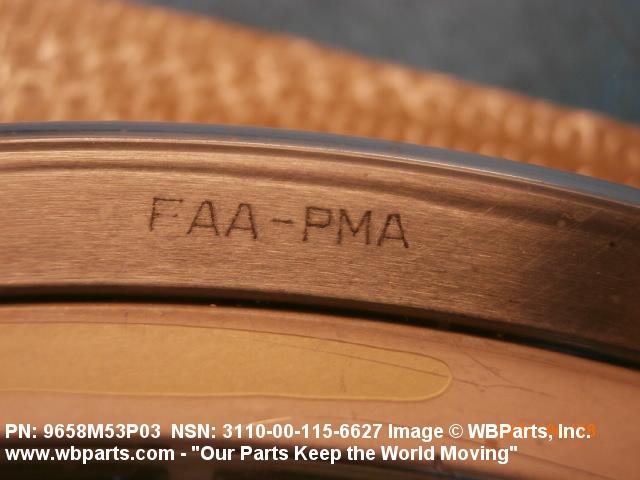

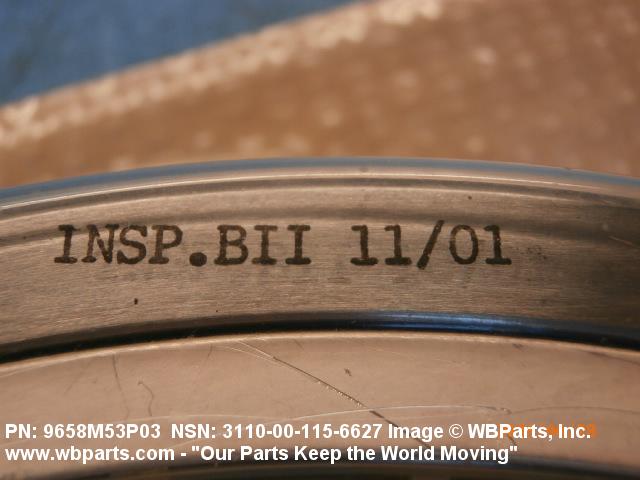

Drawings & Photos | NSN 3110-00-115-6627
Demand History | NSN 3110-00-115-6627
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9658M53P03 | 2025-12-339 | 1 | IT |
| 9658M53P02 | 2019-06-169 | 1 | United States |
| 3110-00-115-6627 | 2019-06-169 | 1 | JP |
| 9658M53P03 | 2013-07-206 | 1 | US |
| 9658M53P03 | 2009-09-266 | 2 | US |
Cross Reference | NSN 3110-00-115-6627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1538M17P01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 461664-2 | 52676 | SKF USA INC. |
| 597406 | 36069 | FAG AEROSPACE INC |
| 5RUH1830-8 | 78118 | MPB CORPORATION DBA TIMKEN AEROSPACE |
| 9272M57 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9272M57P01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9658M53P02 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9658M53P03 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| AAVF9330R0-102 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-115-6627
Related Products | NSN 3110-00-115-6627
Technical Data | NSN 3110-00-115-6627
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER STEEL COMP E52100 ROLLER |
| STYLE DESIGNATOR | 252A SINGLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| OVERALL WIDTH | 1.0430 INCHES MINIMUM AND 1.0590 INCHES MAXIMUM |
| BORE DIAMETER | 6.3177 INCHES MINIMUM AND 6.3180 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 7.8326 INCHES MINIMUM AND 7.8331 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0025 INCHES MINIMUM RADIAL AND 0.0040 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | OUTER RING IS FLANGED TO PROVIDE SIX MOUNTING TABS EQ SPACED;TABS ARE 0.1050 IN. NOM THK,1.0250 IN. NOM WIDE;EA TAB HAS TWO HOLES;EA HOLE 0.2835 NOM DIAM,50 DEG CSK,CENTER OF EA HOLE 0.2500 FROM CENTER LINE OF TAB |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 9272M57 |
Restrictions/Controls & Freight Information | NSN 3110-00-115-6627
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
