NSN 3110-00-159-9517 K6AR48, K6AR48FS160, K6AR48FS160A
Product Details | TRACK ROLLER BALL BEARING
3110-00-159-9517 An antifriction bearing having spherical rolling elements designed for use in a track roller assembly.
Part Alternates: K6AR48, K6AR48FS160, K6AR48FS160A, K6AR48MILG3278A, 602939, 60-2939, 6029391, 60-2939-1, 3110-00-159-9517, 00-159-9517, 3110001599517, 001599517
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-159-9517 | 00045 ( BEARING, BALL, TRACK ROLLER ) |
Drawings & Photos | NSN 3110-00-159-9517
Demand History | NSN 3110-00-159-9517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-159-9517 | 2016-06-155 | 20 | US |
Cross Reference | NSN 3110-00-159-9517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60-2939 | 82918 | THE BOEING COMPANY DBA BOEING |
| 60-2939-1 | 82918 | THE BOEING COMPANY DBA BOEING |
| K6AR48 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K6AR48FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K6AR48FS160A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K6AR48MILG3278A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-159-9517
Related Products | NSN 3110-00-159-9517
Technical Data | NSN 3110-00-159-9517
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL CORROSION RESISTING SHIELD |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES CADMIUM SHIELD |

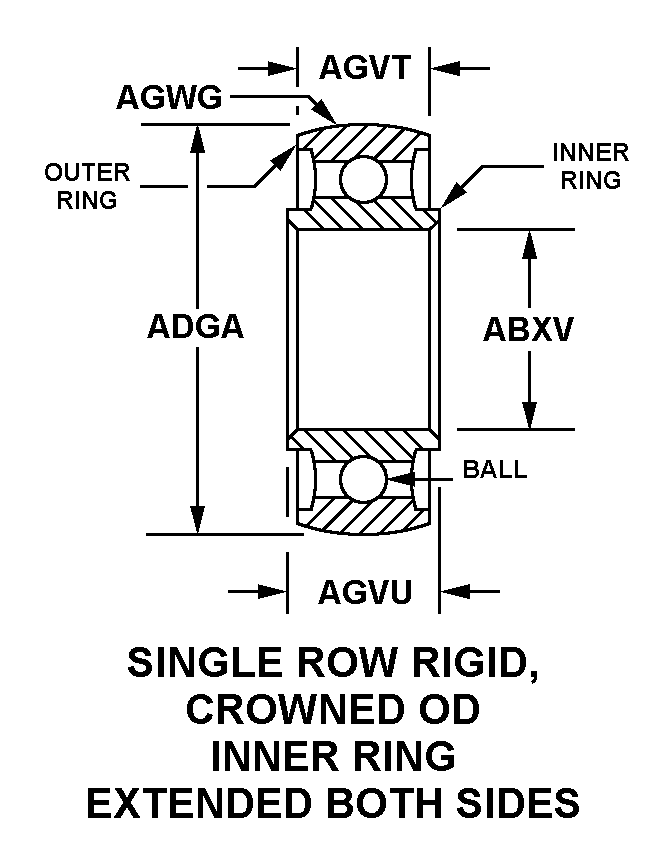

| STYLE DESIGNATOR | 208 SINGLE ROW RIGID, CROWNED OD INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.1250 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3130 INCHES NOMINAL |
| INNER RING WIDTH | 0.3750 INCHES NOMINAL |
| CROWN RADIUS | 3.0150 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 3110-00-159-9517
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-159-9517
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
