NSN 3110-00-179-7563 MKP16BA1173, 00-179-7563, 001797563
Product Details | AIRFRAME BALL BEARING
3110-00-179-7563 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MKP16BA1173, 3110-00-179-7563, 00-179-7563, 3110001797563, 001797563
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 MAY 1969 | 00-179-7563 | 00041 ( BEARING, BALL, AIRFRAME ) |

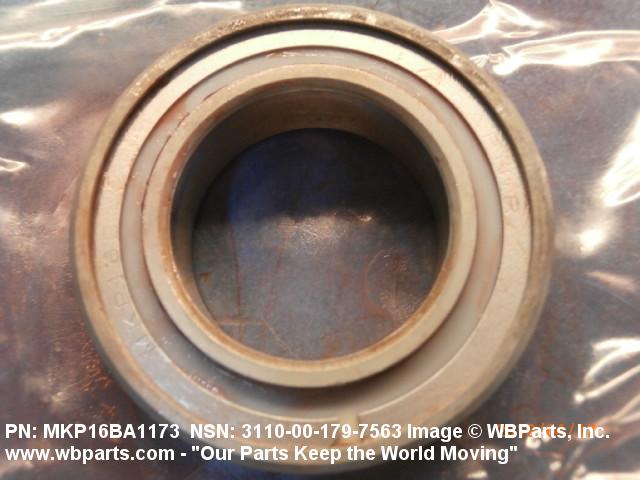

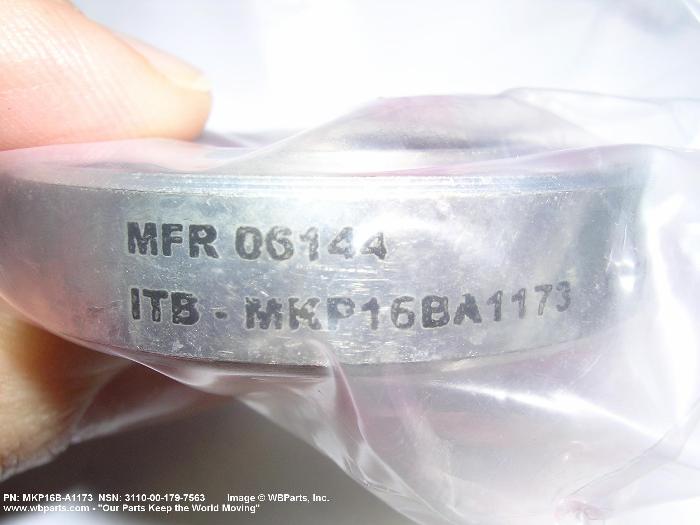

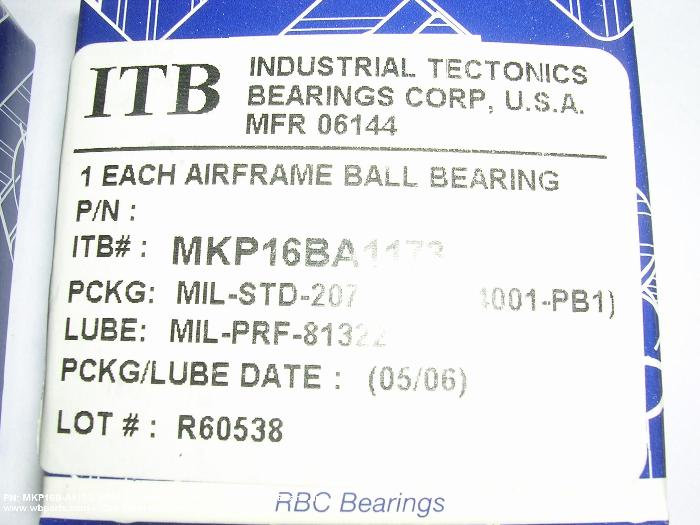

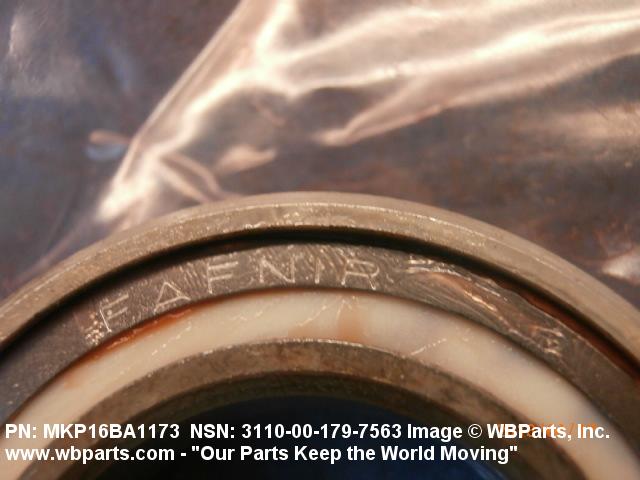

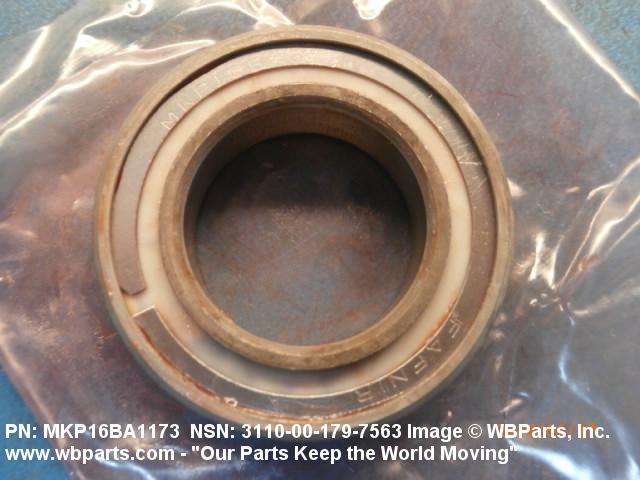

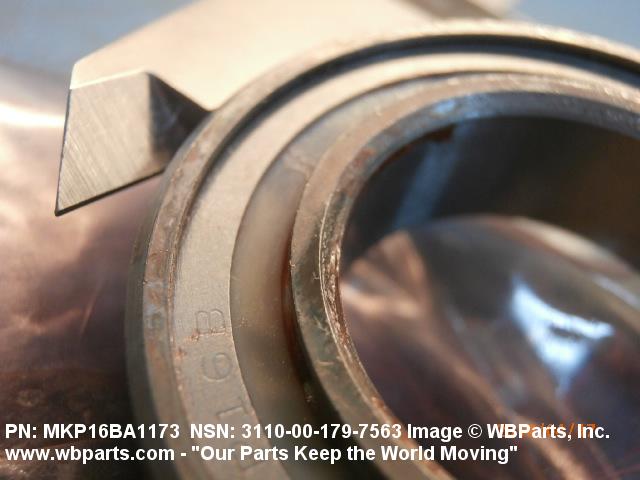

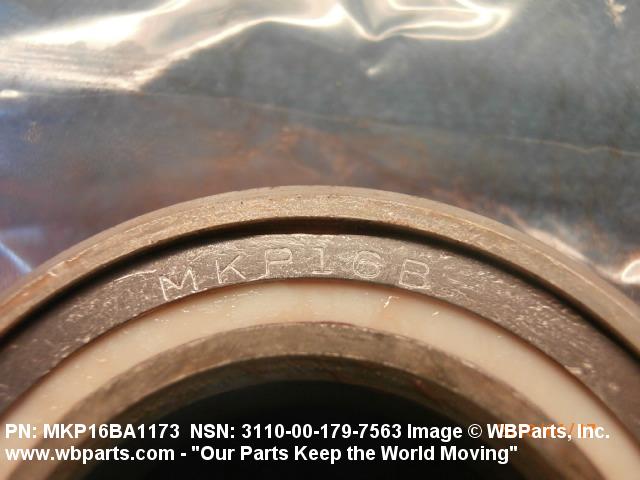

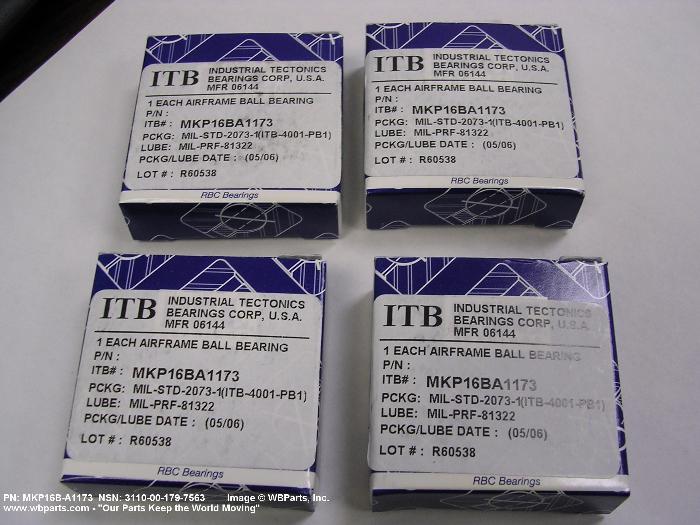

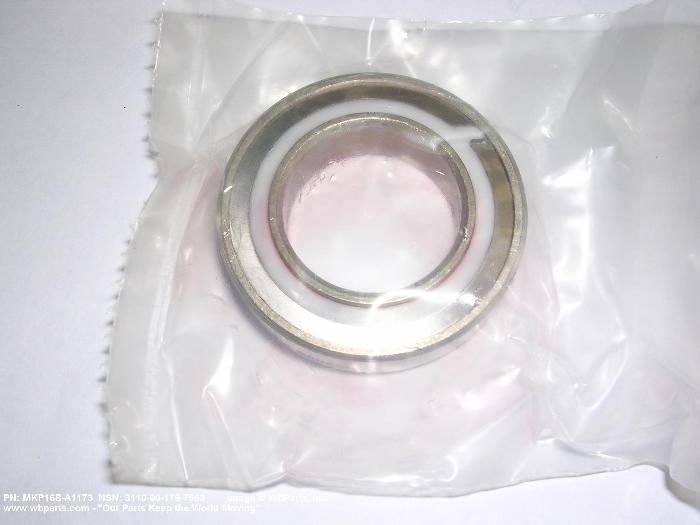

Drawings & Photos | NSN 3110-00-179-7563
Demand History | NSN 3110-00-179-7563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MKP16BA1173 | 2018-04-96 | 8 | United States |
| 3110-00-179-7563 | 2015-08-243 | 1 | MANUAL |
| MKP16BA1173 | 2015-08-243 | 1 | US |
| 3110-00-179-7563 | 2013-11-308 | 1 | CA |
| MKP16BA1173 | 2012-04-115 | 4 | US |
| MKP16BA1173 | 2010-07-197 | 1500 | US |
| MKP16BA1173 | 2010-07-195 | 1 | United States |
| MKP16BA1173 | 2008-04-95 | 375 | United States |
| MKP16BA1173 | 2007-08-213 | 4 | United States |
Cross Reference | NSN 3110-00-179-7563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MKP16BA1173 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-179-7563
Technical Data | NSN 3110-00-179-7563
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | REG TM,RSCM 31708 MFR REF SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |

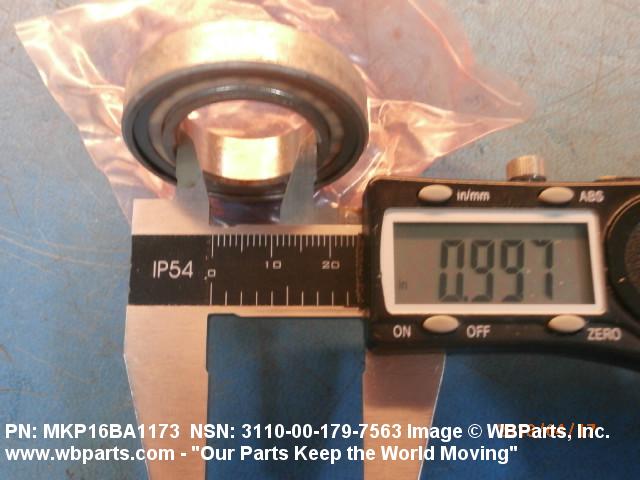

| BORE DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |

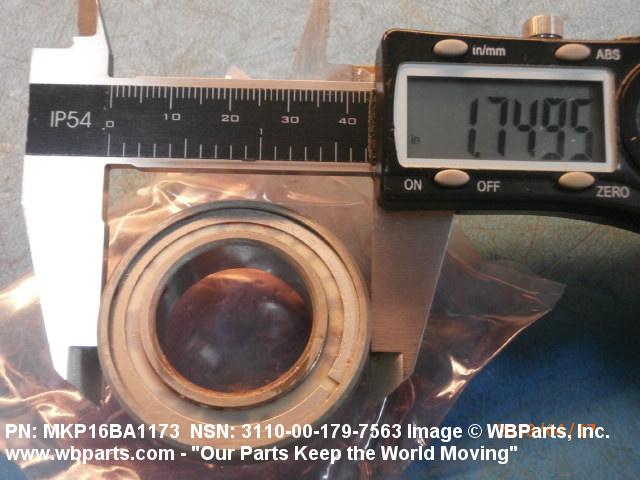

| OVERALL OUTSIDE DIAMETER | 1.7495 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |

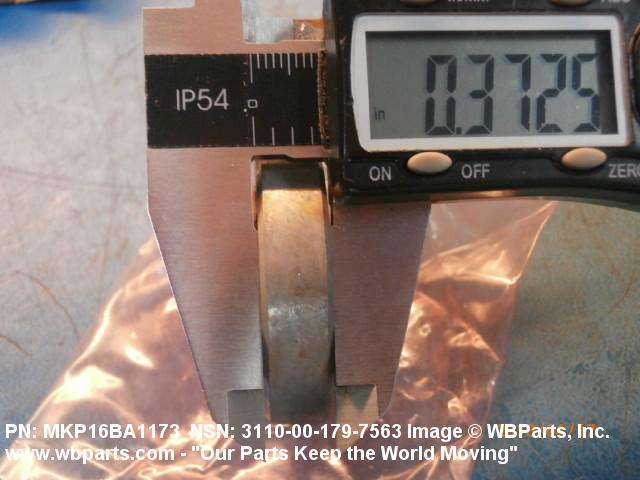

| OUTER RING WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |

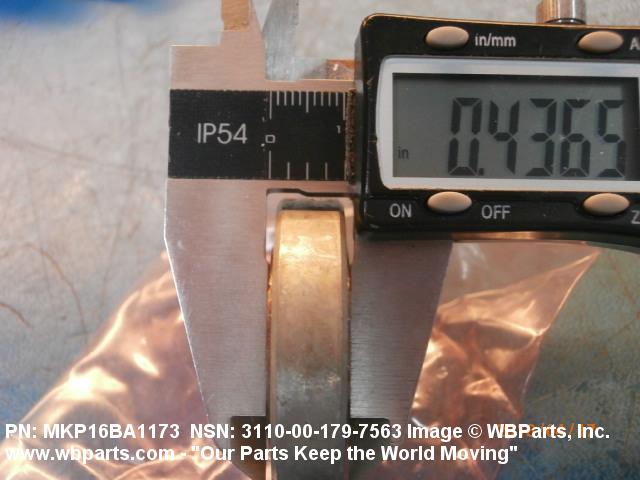

| INNER RING WIDTH | 0.4345 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | STARTING TORQUE 1.16 IN. OZ ALSO 40 TO 50 PCT FULL OF SPECIFIED GREASE ALSO 0.0002 IN. TO 0.0005 IN. RADIAL CLEARANCE ALSO SEALS RETAINED BY STAINLESS STEEL SNAP WASHERS |
Restrictions/Controls & Freight Information | NSN 3110-00-179-7563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-179-7563
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
