NSN 3110-00-180-7307 R1916E106, 5014T13P02, 00-180-7307

Product Details | CYLINDRICAL ROLLER BEARING

3110-00-180-7307 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.

Part Alternates: R1916E106, 5014T13P02, 3110-00-180-7307, 00-180-7307, 3110001807307, 001807307

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	24 JUN 1970	00-180-7307	00015 ( BEARING, ROLLER, CYLINDRICAL )

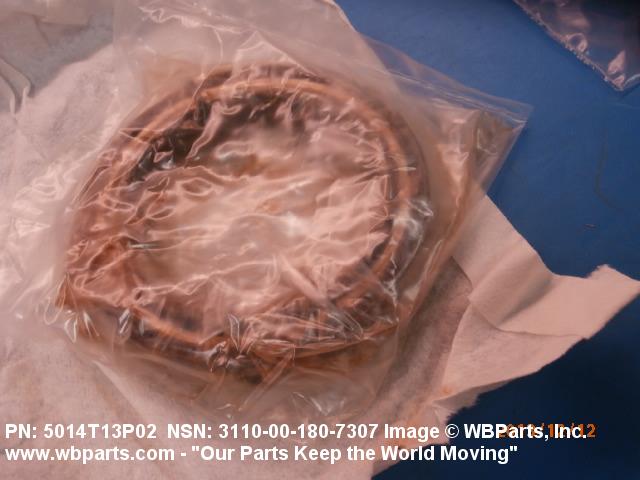

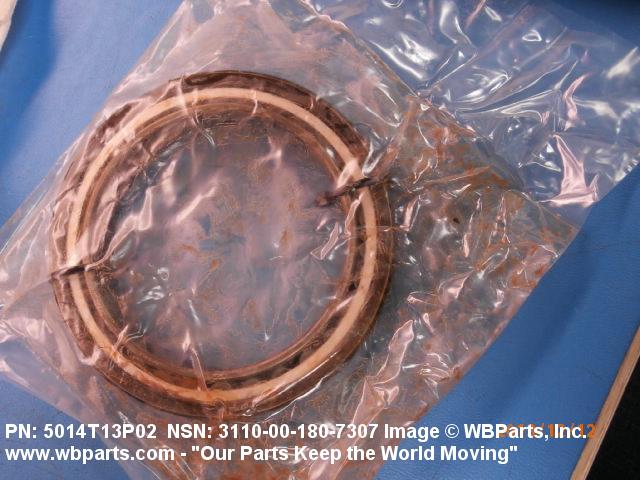

Drawings & Photos | NSN 3110-00-180-7307

Part Number	Request Date	QTY	Origin
3110-00-180-7307	2020-07-211	1	United States
5014T13P02	2014-08-225	50	CN
3110-00-180-7307	2014-08-223	50	US
3110-00-180-7307	2014-03-62	10	United States
3110-00-180-7307	2014-01-20	3	Malaysia
5014T13P02	2014-01-16	25	CN
5014T13P02	2014-01-16	30	UAE
3110-00-180-7307	2014-01-07	25	BY
3110-00-180-7307	2014-01-04	40	DE
5014T13P02	2013-12-360	300	CN
5014T13P02	2013-11-331	100	HK
3110-00-180-7307	2013-11-311	50	US
5014T13P02	2013-11-311	200	CN
3110-00-180-7307	2013-11-310	200	US
5014T13P02	2013-10-301	10	UAE
5014T13P02	2013-10-296	25	US
5014T13P02	2013-10-294	30	FR
5014T13P02	2013-10-280	30	MY
5014T13P02	2013-10-277	2	US
5014T13P02	2013-09-256	20	CA
5014T13P02	2013-06-169	10	SE
5014T13P02	2013-06-154	25	United States
5014T13P02	2013-05-148	30	IT
3110-00-180-7307	2013-05-136	20	AE
5014T13P02	2013-05-131	150	IR
3110-00-180-7307	2013-05-127	50	US
3110-00-180-7307	2012-12-356	20	CN
5014T13P02	2012-08-215	10	KR
5014T13P02	2012-07-188	30	BE
3110-00-180-7307	2012-04-115	10	MANUAL
5014T13P02	2012-04-115	10	United States
3110-00-180-7307	2012-04-114	10	MANUAL
5014T13P02	2012-04-114	10	United States
5014T13P02	2011-10-299	20	TR

Cross Reference | NSN 3110-00-180-7307

Part Number	Cage Code	Manufacturer
5014T13P02	99207	GENERAL ELECTRIC COMPANY DBA GE
R1916E106	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-180-7307

Compare

Related Products | NSN 3110-00-180-7307

3110-00-180-7393, 3110-00-180-7622, 3110-00-180-7659, 3110-00-180-7672, 3110-00-180-7703

Technical Data | NSN 3110-00-180-7307

Characteristic	Specifications
MATERIAL	STEEL COMP M50 INNER RING STEEL COMP M50 OUTER RING COPPER ALLOY RETAINER STEEL COMP M50 ROLLER

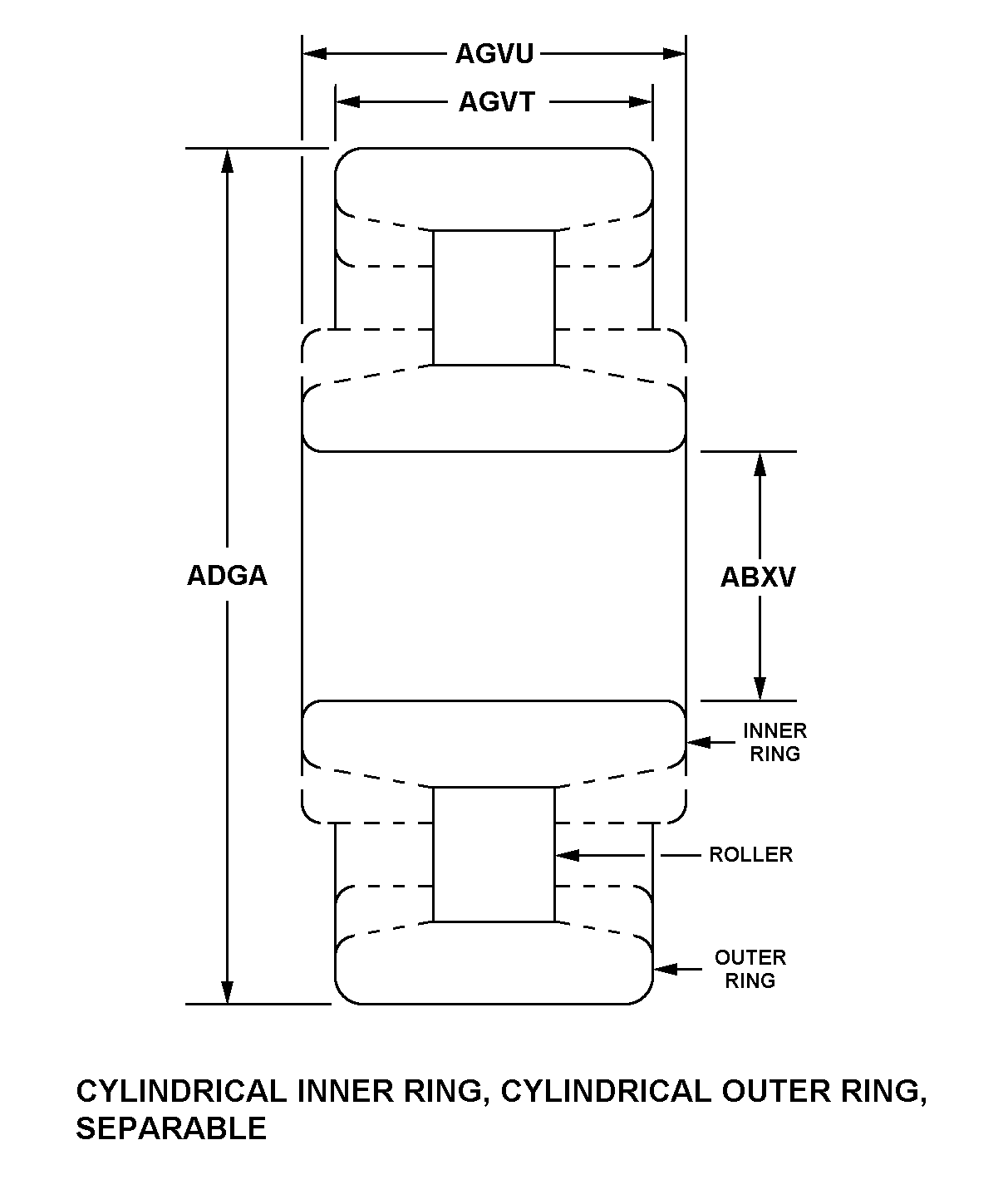

STYLE DESIGNATOR	268A CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE

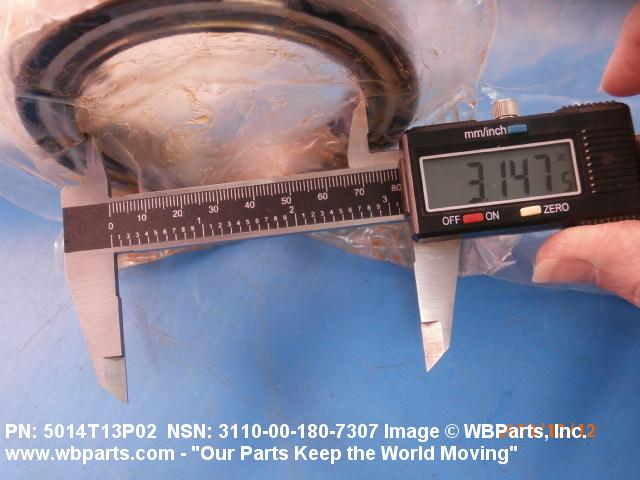

BORE DIAMETER	3.1493 INCHES MINIMUM AND 3.1496 INCHES MAXIMUM

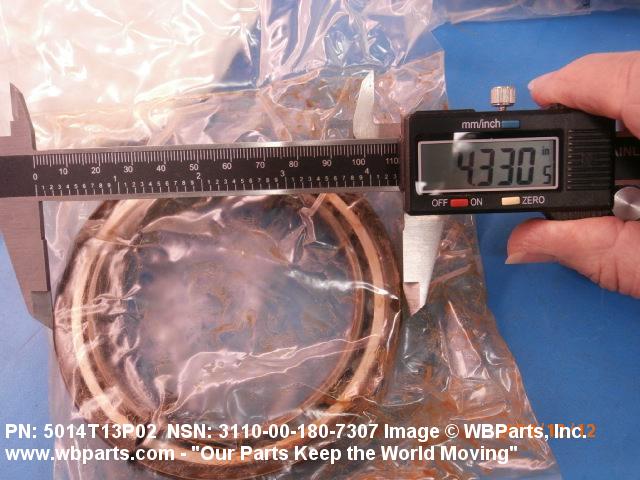

OVERALL OUTSIDE DIAMETER	4.3304 INCHES MINIMUM AND 4.3307 INCHES MAXIMUM

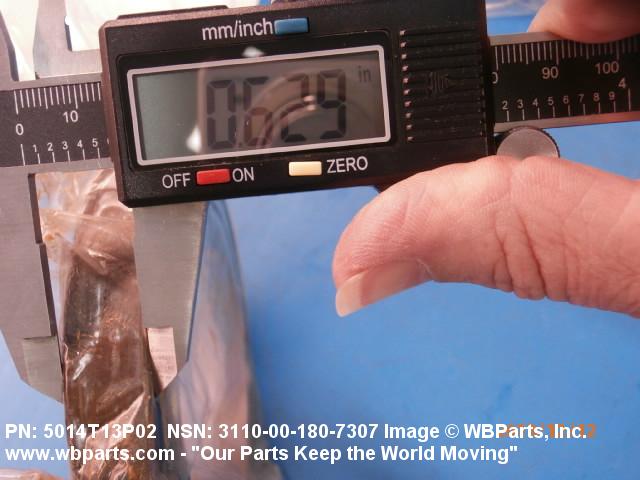

OUTER RING WIDTH	0.6249 INCHES MINIMUM AND 0.6299 INCHES MAXIMUM

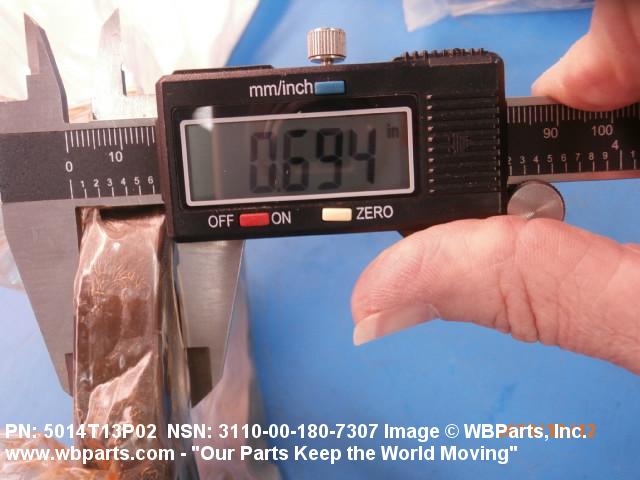

INNER RING WIDTH	0.6890 INCHES MINIMUM AND 0.6940 INCHES MAXIMUM
STANDARD TOLERANCE DESIGNATION	RBEC NO.5
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	MACHINED
LOCATING FEATURE	ONE DIRECTION
INTERNAL CLEARANCE	0.0021 INCHES MINIMUM RADIAL AND 0.0025 INCHES MAXIMUM RADIAL
SPECIAL FEATURES	RETAINER SILVER PLATED
III END ITEM IDENTIFICATION	ACFT ENG J-85,J-5,J-13,J-17,J-17A
MANUFACTURERS CODE	99207
MFR SOURCE CONTROLLING REFERENCE	5014T13P02

Restrictions/Controls & Freight Information | NSN 3110-00-180-7307

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	I	AIRCRAFT ENGINE EQUIPMENT AND PARTS
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	671	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-180-7307

Air Force
Navy

Category	Code	Description
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	OK	SX:GENERAL ELECTRIC JET ENGINES & COMPONENTS, J-85
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	FHZ	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	T	AF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	I	AIRCRAFT ENGINE EQUIPMENT AND PARTS
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	1R	Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia
Special Material ID	MN	JET ENGINES(J85)
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	NRP	NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Reparability	M	Medium Demand Velocity Items (consumables)
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	I	AIRCRAFT ENGINE EQUIPMENT AND PARTS
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
