Product Details | THRUST ROLLER BEARING
3110-00-192-5254 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Part Alternates: C5A28102, 11H02A, 3110-00-192-5254, 00-192-5254, 3110001925254, 001925254
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 MAR 1970 | 00-192-5254 | 00020 ( BEARING, ROLLER, THRUST ) |

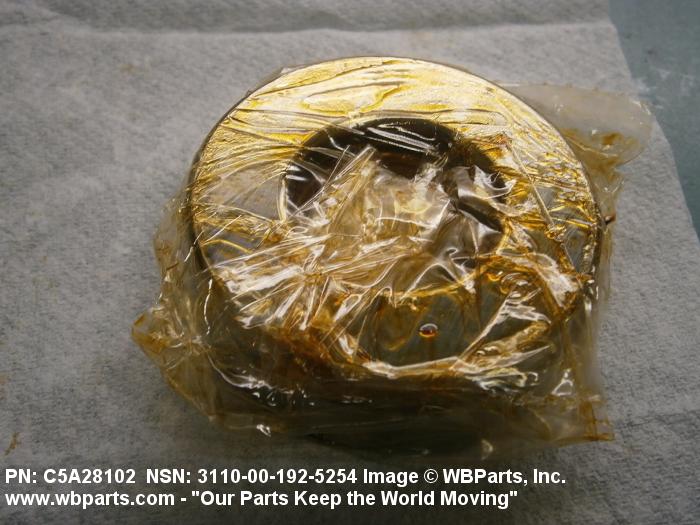

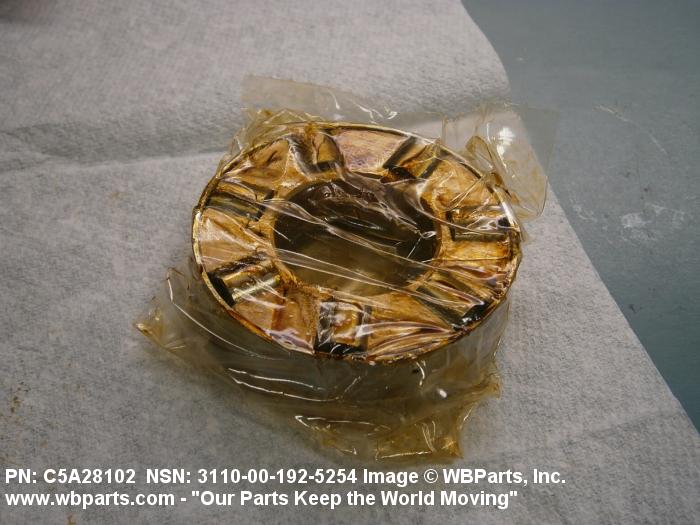

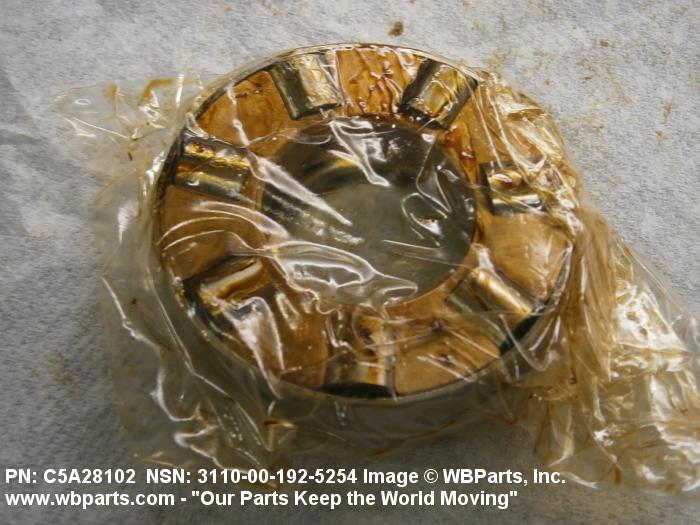

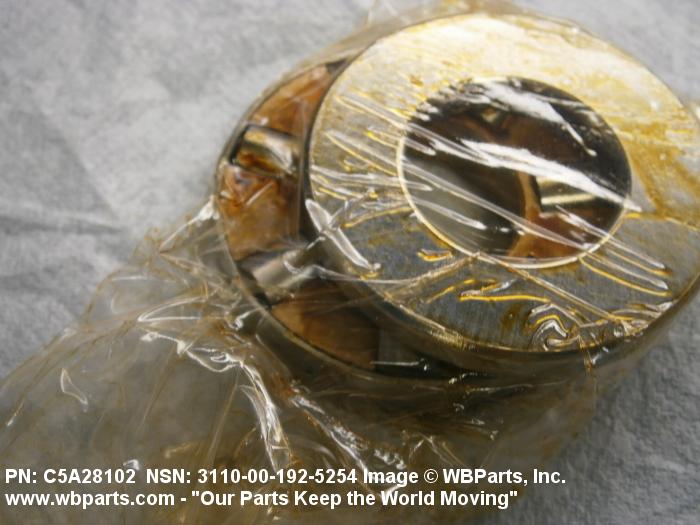

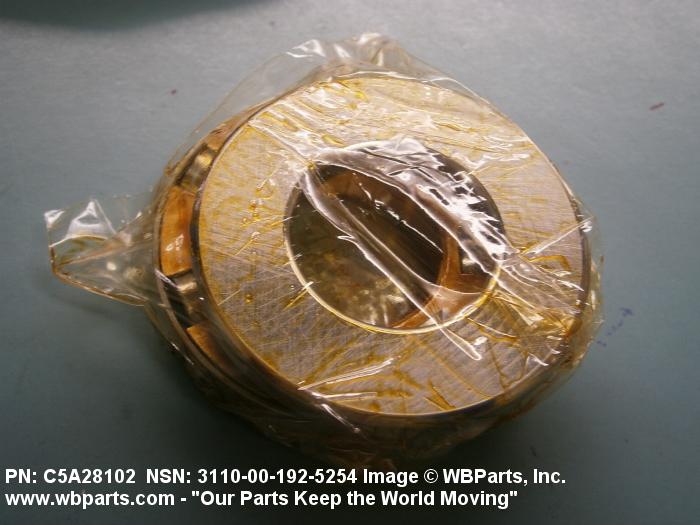

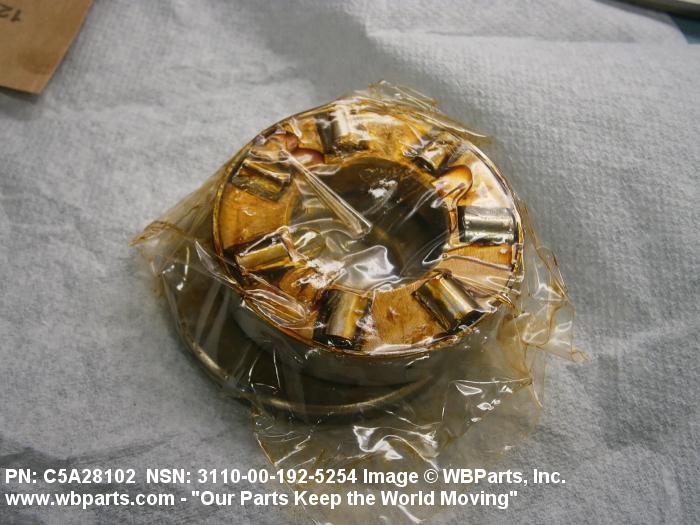

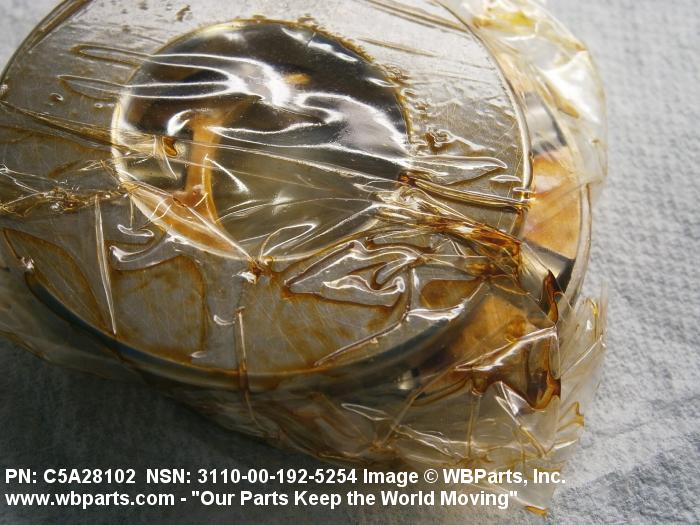

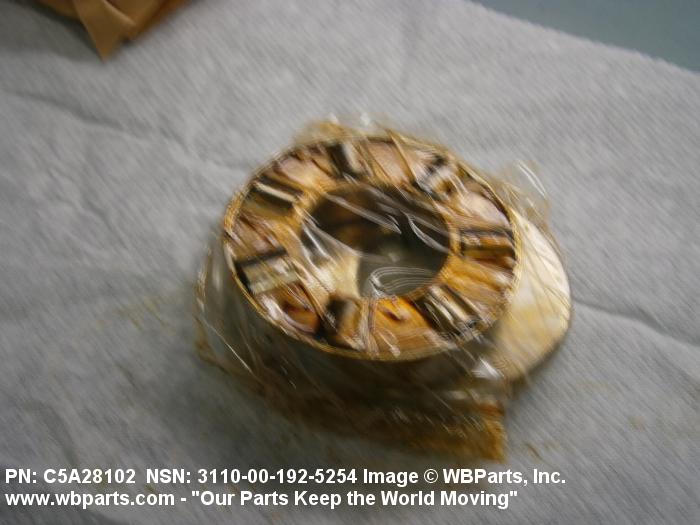

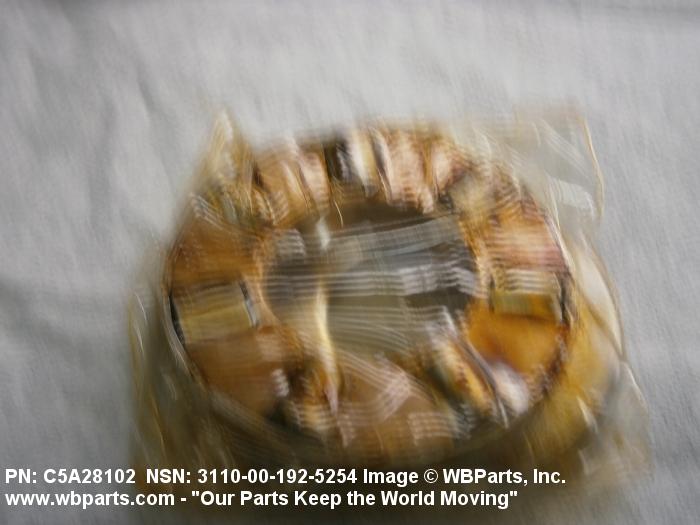

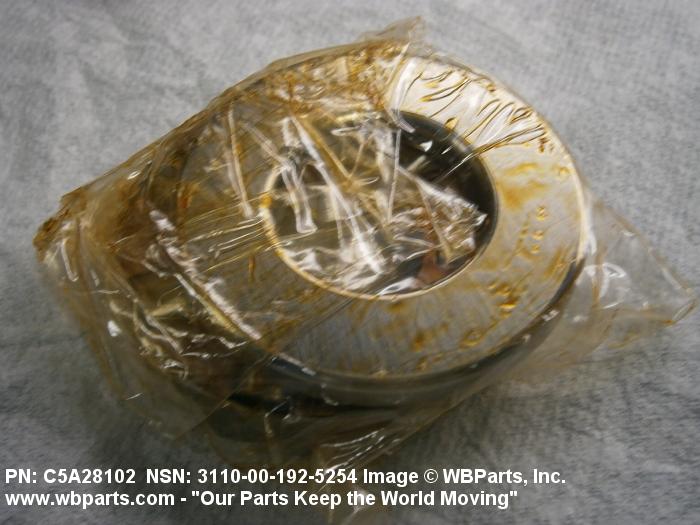

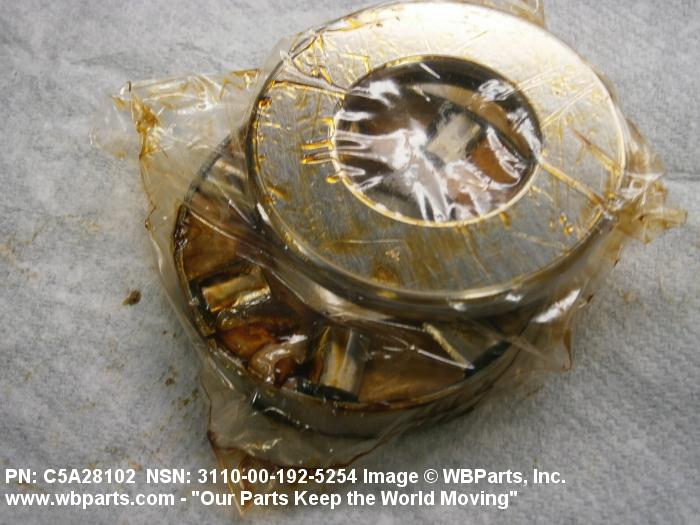

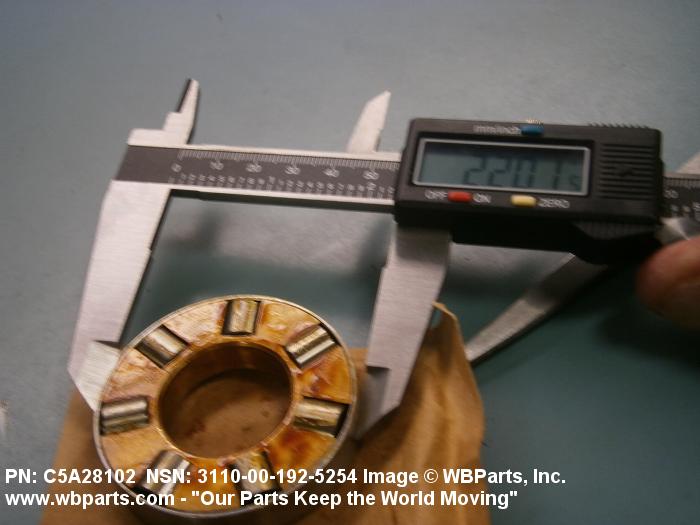

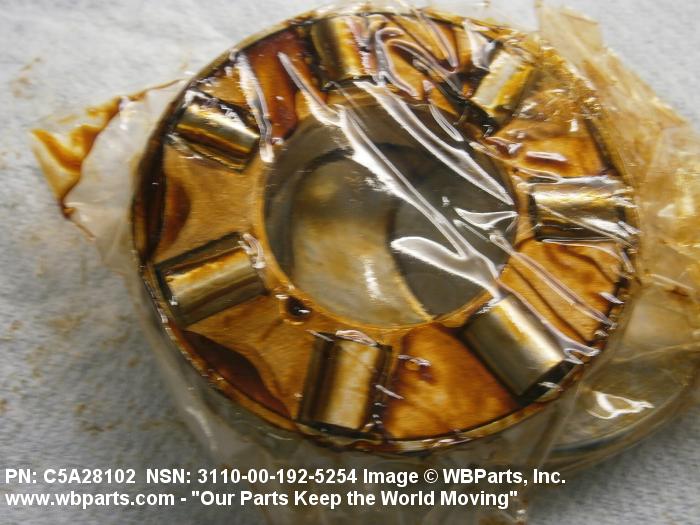

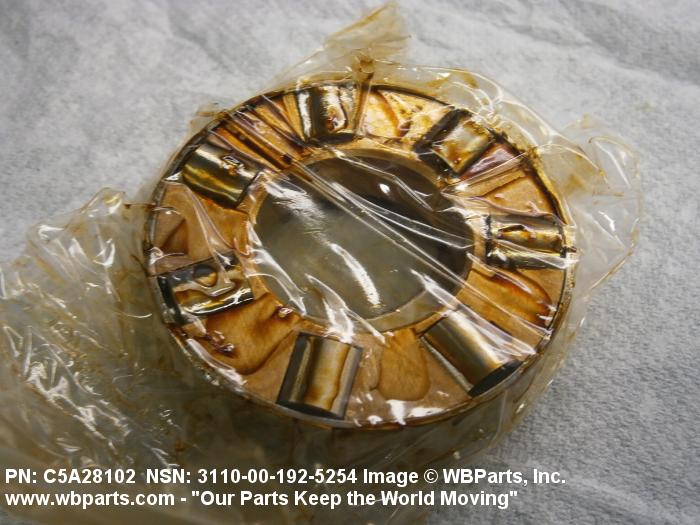

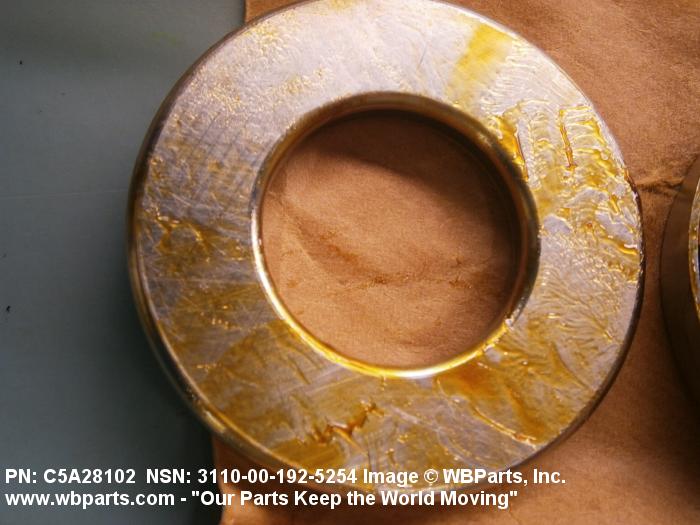

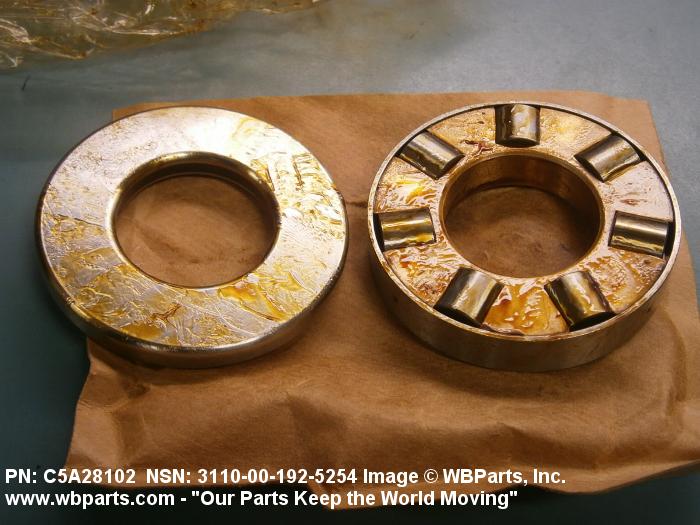

Drawings & Photos | NSN 3110-00-192-5254
Demand History | NSN 3110-00-192-5254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-192-5254 | 2020-06-24 | 1 | DIBBS-RFPs |
| C5A28102 | 2020-03-19 | 19 | DIBBS |
| C5A28102 | 2019-12-12 | 5 | DIBBS |
| 3110-00-192-5254 | 2014-09-11 | 64 | DIBBS |
| 3110-00-192-5254 | 2014-09-03 | 64 | DIBBS |
| 3110-00-192-5254 | 2014-08-21 | 63 | DIBBS |
| 3110-00-192-5254 | 2014-08-13 | 110 | DIBBS |
| 3110-00-192-5254 | 2014-03-24 | 28 | DIBBS |
| 3110-00-192-5254 | 2013-09-20 | 100 | United States |
| 3110-00-192-5254 | 2013-09-10 | 110 | United States |
| 3110-00-192-5254 | 2013-08-29 | 110 | United States |
| 3110-00-192-5254 | 2013-07-17 | 50 | DIBBS |
| 3110-00-192-5254 | 2013-06-06 | 68 | United States |
| 3110-00-192-5254 | 2013-04-24 | 68 | DIBBS |
| C5A28102 | 2010-06-28 | 35 | US |
| 3110-00-192-5254 | 2009-11-17 | 4 | DIBBS |
Cross Reference | NSN 3110-00-192-5254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11H02A | 03489 | ANDREWS BEARING CORP DIV OF MPB CORP |
| C5A28102 | 05527 | GWILLIAM COMPANY INC DIV BALL & ROLLER BEARING DIVISION |
| C5A28102 | 0AJV0 | SCHAEFFLER GROUP USA INC |
| C5A28102 | 78567 | SPECO CORP |
| C5A28102 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-192-5254
Related Products | NSN 3110-00-192-5254
3110-00-193-0181, 3110-00-193-0624, 3110-00-193-0626, 3110-00-193-0627, 3110-00-193-0632
Technical Data | NSN 3110-00-192-5254
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

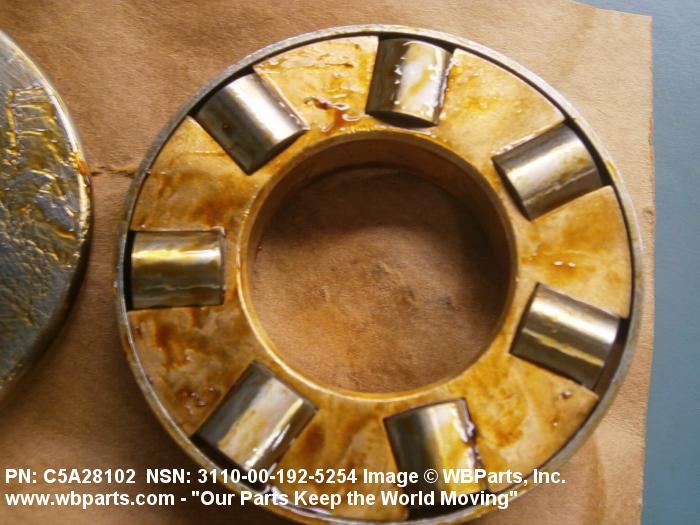

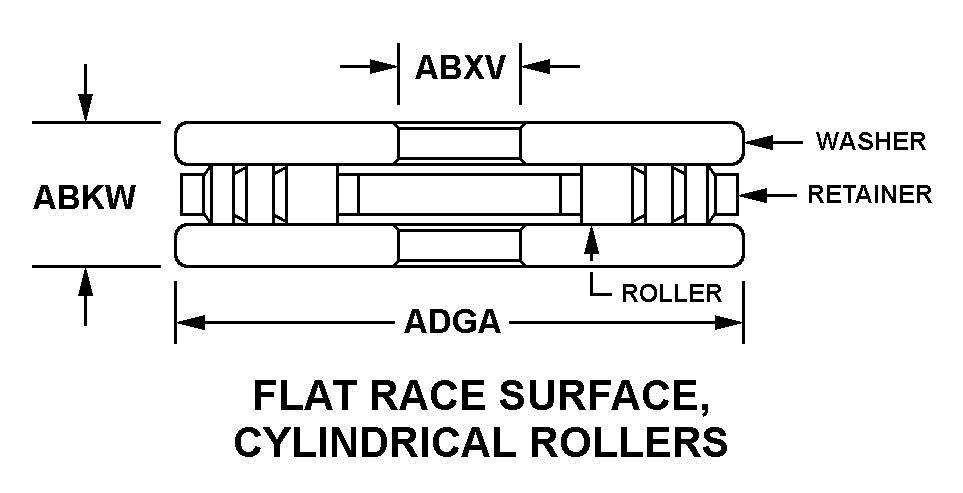

| STYLE DESIGNATOR | 330 FLAT RACE SURFACE, CYLINDRICAL ROLLERS |

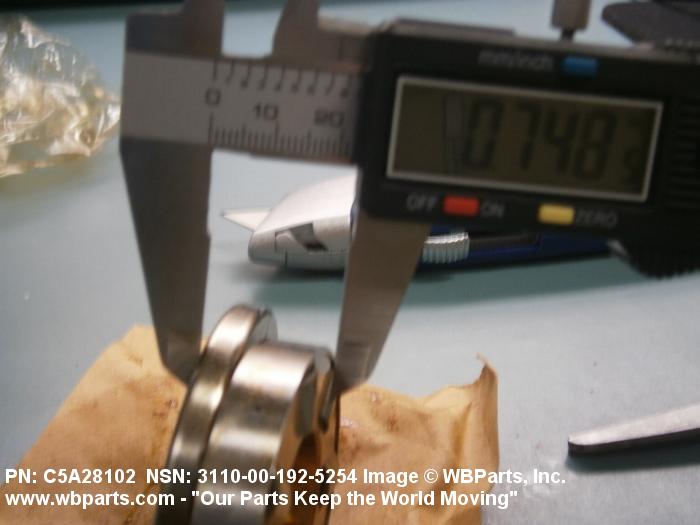

| OVERALL HEIGHT | 0.7480 INCHES MINIMUM AND 0.7520 INCHES MAXIMUM |
| BORE DIAMETER | 1.1290 INCHES MINIMUM AND 1.1310 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.2480 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | ONE PLATE |
Restrictions/Controls & Freight Information | NSN 3110-00-192-5254
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-192-5254
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
