NSN 3110-00-198-2788 120, 1202, 120-2
Product Details | THRUST BALL BEARING
3110-00-198-2788 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Part Alternates: 120, 1202, 120-2, BB55, 3110-00-198-2788, 00-198-2788, 3110001982788, 001982788
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-198-2788 | 00019 ( BEARING, BALL, THRUST ) |
Drawings & Photos | NSN 3110-00-198-2788
Demand History | NSN 3110-00-198-2788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1202 | 2024-04-113 | 1 | US |
| 120 | 2020-03-91 | 3 | US |
| 1202 | 2017-09-248 | 20 | United Arab Emirates |
Cross Reference | NSN 3110-00-198-2788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 120 | 38018 | MANITOWOC ENGINEERING CO DIVISION OF THE MANITOWOC CO INC |
| 120-2 | 26641 | MANITOWOC COMPANY, INC., THE DIV MANITOWOC CRANE GROUP |
| 120-2 | 38018 | MANITOWOC ENGINEERING CO DIVISION OF THE MANITOWOC CO INC |
| BB55 | 39317 | MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING. |
| BB55 | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-198-2788
Related Products | NSN 3110-00-198-2788
Technical Data | NSN 3110-00-198-2788
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL PLASTIC PHENOLIC RETAINER STEEL WASHER |

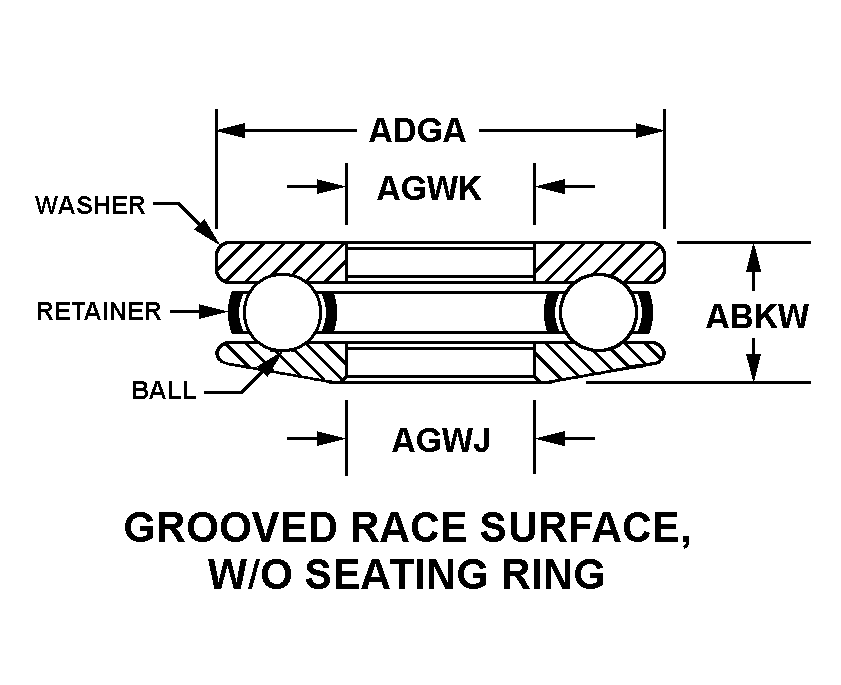

| STYLE DESIGNATOR | 184 GROOVED RACE SURFACE, W/O SEATING RING |
| OVERALL HEIGHT | 1.4650 INCHES MINIMUM AND 1.4750 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 5.8650 INCHES MINIMUM AND 5.8750 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 3.9990 INCHES MINIMUM AND 4.0020 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | ANY ACCEPTABLE |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
Restrictions/Controls & Freight Information | NSN 3110-00-198-2788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-198-2788
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
