NSN 3110-00-220-3621 0N088649, 00-220-3621, 002203621
Product Details | BEARING BALL RETAINER
3110-00-220-3621 A frame or inclosure which spaces and retains the rolling elements of a BEARING, BALL (as modified).
Part Alternates: 0N088649, 3110-00-220-3621, 00-220-3621, 3110002203621, 002203621
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 JAN 1969 | 00-220-3621 | 00032 ( RETAINER, BALL, BEARING ) |
Drawings & Photos | NSN 3110-00-220-3621
Cross Reference | NSN 3110-00-220-3621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N088649 | 98230 | NATIONAL SECURITY AGENCY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-220-3621
Related Products | NSN 3110-00-220-3621
Technical Data | NSN 3110-00-220-3621
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL303,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

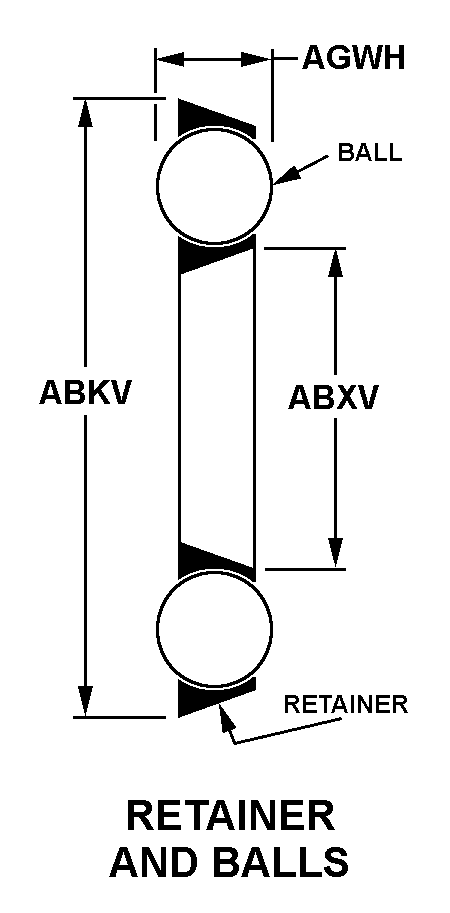

| STYLE DESIGNATOR | 604 RETAINER AND BALLS |
| OUTSIDE DIAMETER | 0.4750 INCHES NOMINAL |
| BORE DIAMETER | 0.2969 INCHES NOMINAL |
| ROLLING ELEMENT DIAMETER | 0.1590 INCHES NOMINAL |
| RETAINER FABRICATION METHOD | MACHINED |
| RETAINER PIECE QUANTITY | 1 |
| TEST DATA DOCUMENT | 98230-0N017757 DRAWING |
| MANUFACTURERS CODE | 98230 |
| DESIGN CONTROL REFERENCE | 0N088649 |
Restrictions/Controls & Freight Information | NSN 3110-00-220-3621
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-00-220-3621
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 5N | Consumable cryptologic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FPD | Air Force Cryptologic Support Center (ESC) San Antonio, TX 78243-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
