3110-00-227-2814 - NEEDLE ROLLER BEARING, MS2446148, MS24461-48, NAS50548

Product Details | NEEDLE ROLLER BEARING

3110-00-227-2814 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.

Part Alternates: MS2446148, MS24461-48, NAS50548, NAS505-48, AS24461, 48NBC2060, 48NBC2060Y2P, 48NBC2060YZP, 48NBC2060YZP2C, 48NBC2060YZPANG2, 50548, 505-48, 8416811, 3110-00-227-2814, 00-227-2814, 3110002272814, 002272814

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-227-2814	00051 ( BEARING, ROLLER, NEEDLE )

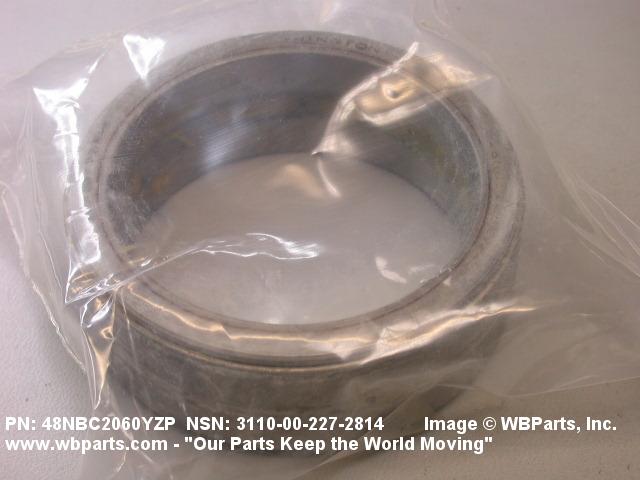

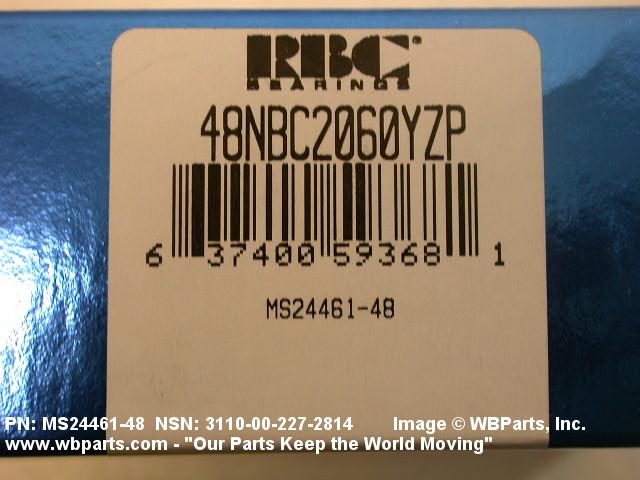

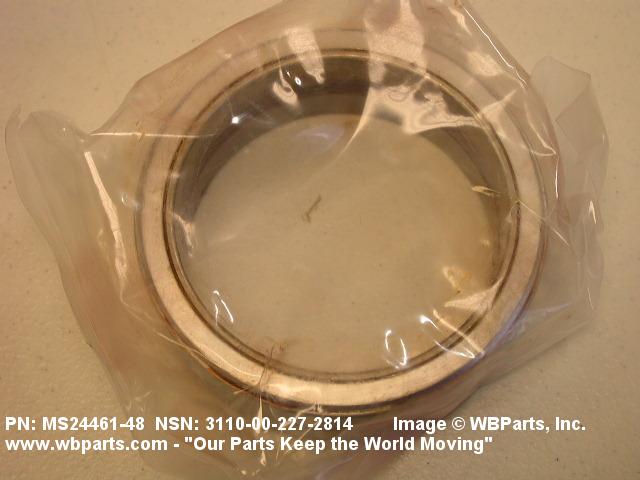

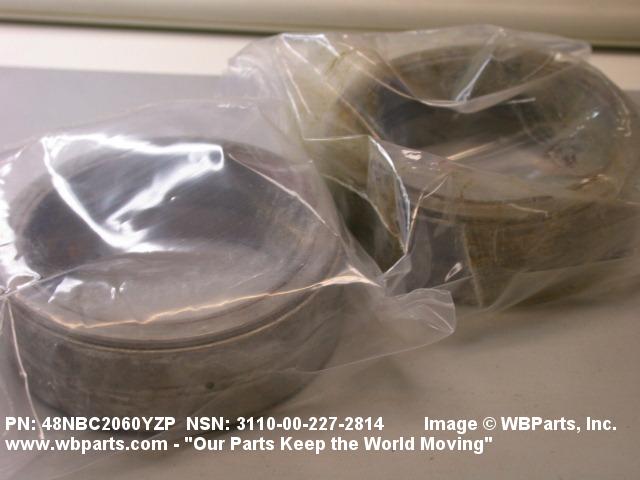

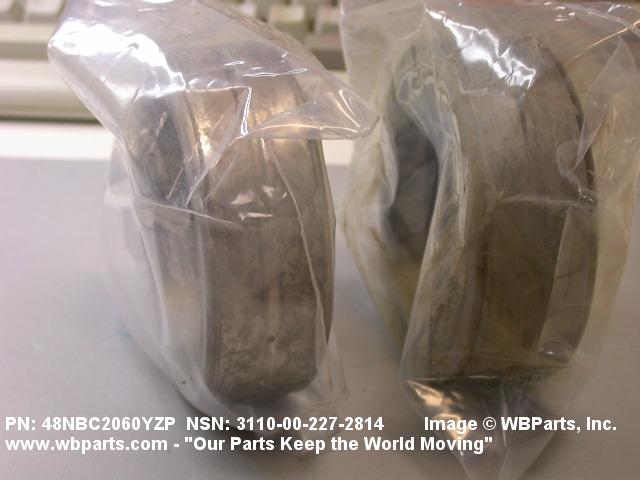

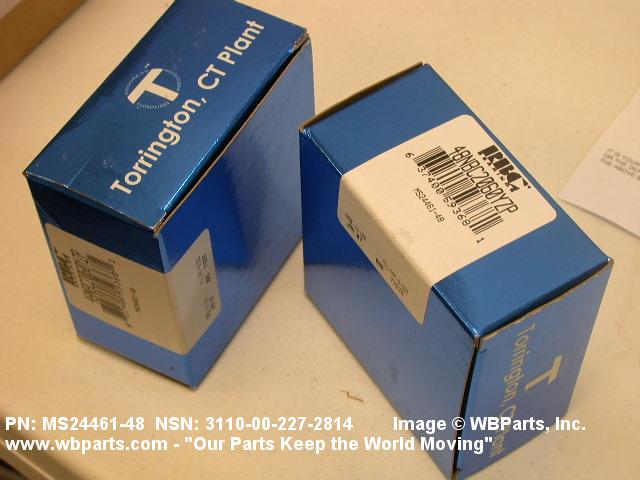

Drawings & Photos | NSN 3110-00-227-2814

Part Number	Request Date	QTY	Origin
3110-00-227-2814	2018-08-07	4	DIBBS
3110-00-227-2814	2018-07-04	5	DIBBS
3110-00-227-2814	2018-06-21	2	DIBBS
3110-00-227-2814	2018-06-13	2	DIBBS
3110-00-227-2814	2018-06-05	3	DIBBS
3110-00-227-2814	2018-05-28	3	DIBBS
3110-00-227-2814	2018-04-12	1	DIBBS
3110-00-227-2814	2018-04-03	1	DIBBS
3110-00-227-2814	2018-02-09	5	DIBBS
3110-00-227-2814	2018-02-01	5	DIBBS
3110-00-227-2814	2015-10-09	2	United States
48NBC2060YZP	2014-11-13	8	US
3110-00-227-2814	2012-08-23	1	DIBBS
48NBC2060YZP	2010-12-28	1	United States
48NBC2060YZP	2009-04-20	1	United States
3110-00-227-2814	2007-07-06	2	United States
48NBC2060YZP	2007-01-04	1	US

Cross Reference | NSN 3110-00-227-2814

Part Number	Cage Code	Manufacturer
48NBC2060	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
48NBC2060Y2P	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
48NBC2060Y2P	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
48NBC2060YZP	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
48NBC2060YZP	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
48NBC2060YZP2C	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
48NBC2060YZP2C	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
48NBC2060YZPANG2	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
505-48	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
8416811	19204	ARMY UNITED STATES DEPARTMENT OF THE
AS24461	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24461-48	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24461-48	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS505-48	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-227-2814

Compare

Related Products | NSN 3110-00-227-2814

3110-00-227-2816, 3110-00-227-2817, 3110-00-227-2818, 3110-00-227-2821, 3110-00-227-2822

Technical Data | NSN 3110-00-227-2814

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	430 CAM ROLLER, HARDENED AND GROUND, NON-SEPARABLE
BORE DIAMETER	3.0000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	3.7500 INCHES NOMINAL
OUTER RING WIDTH	1.0490 INCHES NOMINAL
INNER RING WIDTH	1.2500 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
ALIGNMENT TYPE	RIGID
SPECIAL FEATURES	OIL HOLE AND GROOVE IN INNER AND OUTER RINGS ALSO LOW TEMP GREASE

Restrictions/Controls & Freight Information | NSN 3110-00-227-2814

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-227-2814

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
