Product Details | NEEDLE ROLLER BEARING
3110-00-227-2825 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: MS244619, MS24461-9, NAS2909ANG25, NAS290-9ANG25, NAS5059MILG3278, NAS505-9MILG3278, AT9ANG25, AT9PANG25, 244619, 24461-9, 2909, 290-9, 5059, 505-9, 9NBC1419YZP, 9NBC1419YZP2C, 9NBC1419YZPANG25, 9NBC1419YZPMILG3278A, 9NBC141YSP, 9NCB1419YZPANG25, AT9, 3110-00-227-2825, 00-227-2825, 3110002272825, 002272825
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-2825 | 00051 ( BEARING, ROLLER, NEEDLE ) |

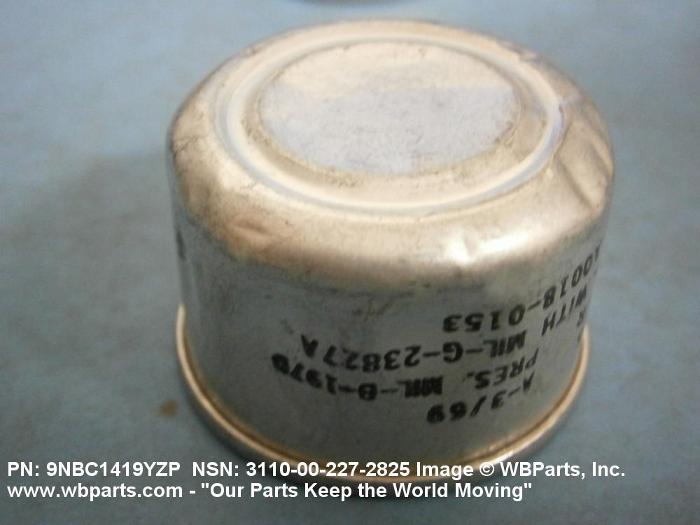

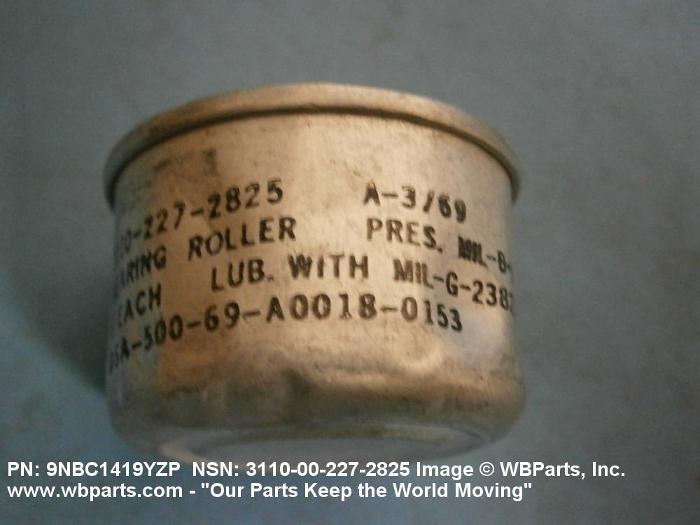

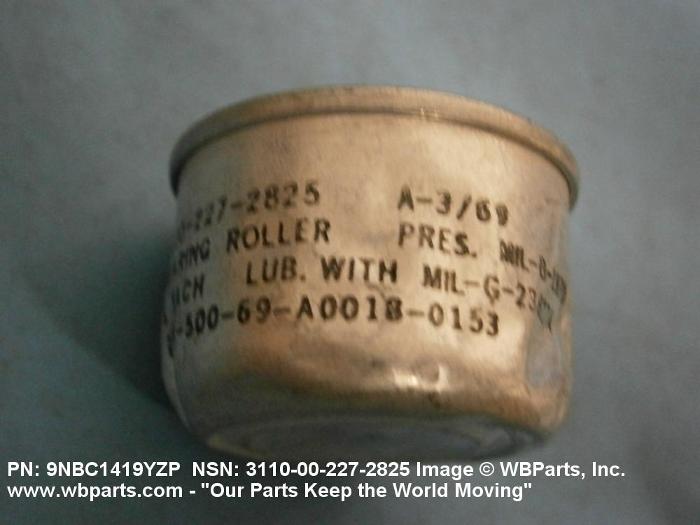

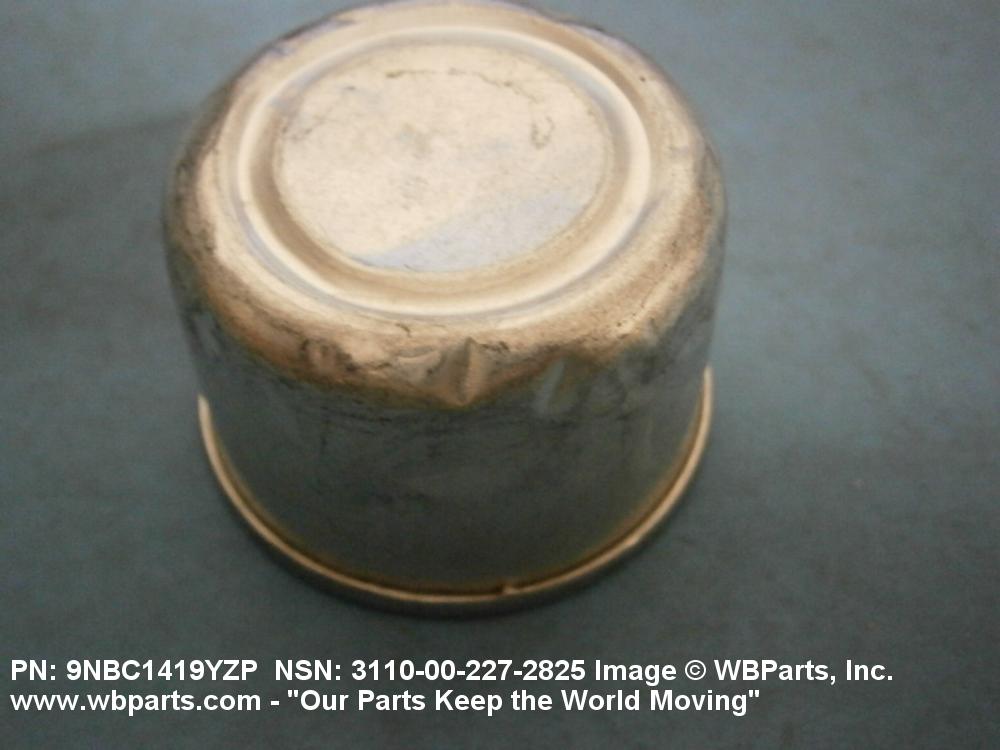

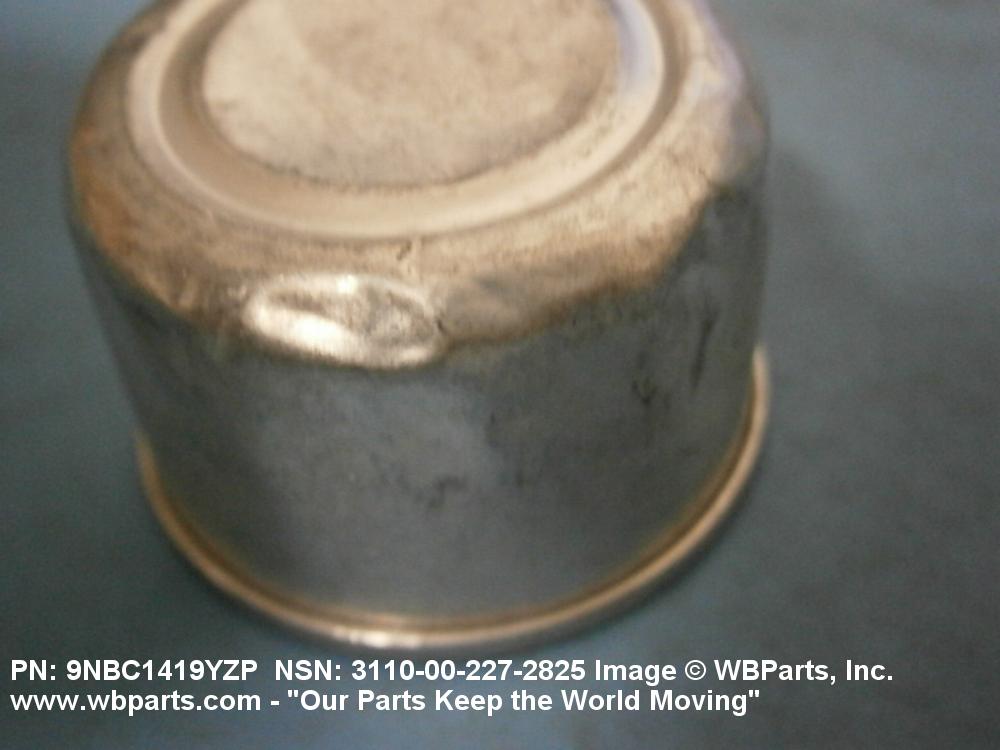

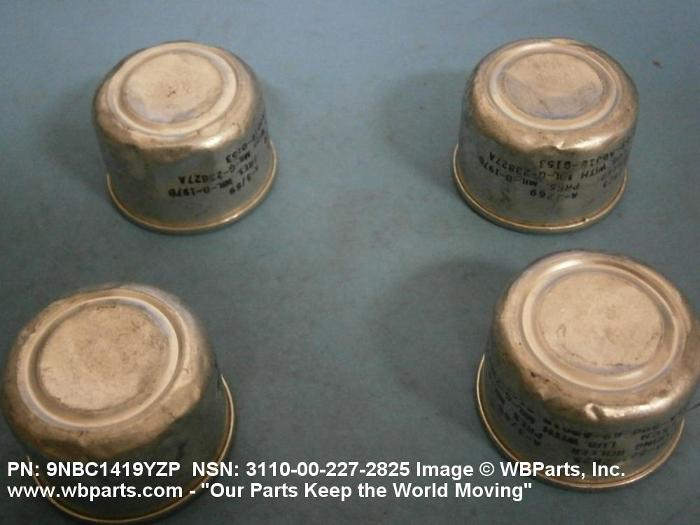

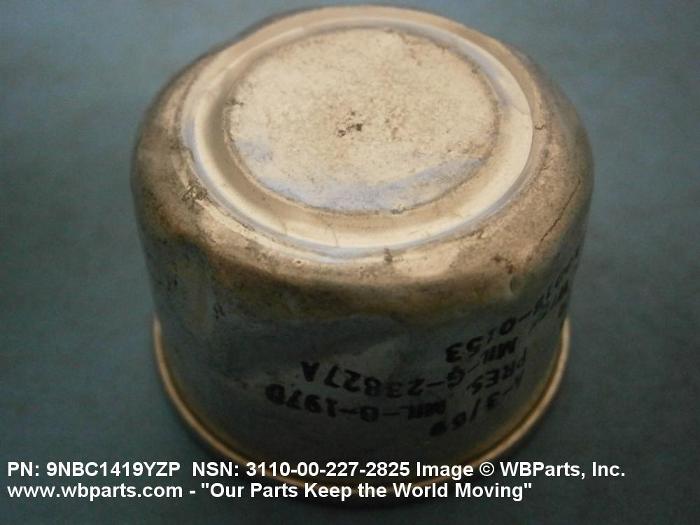

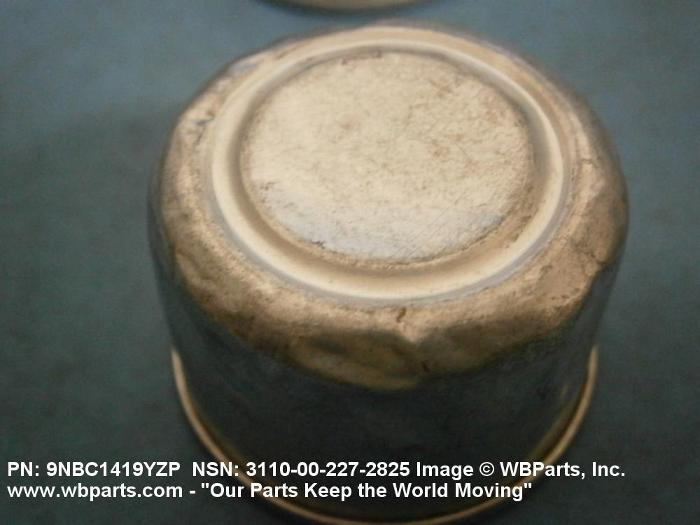

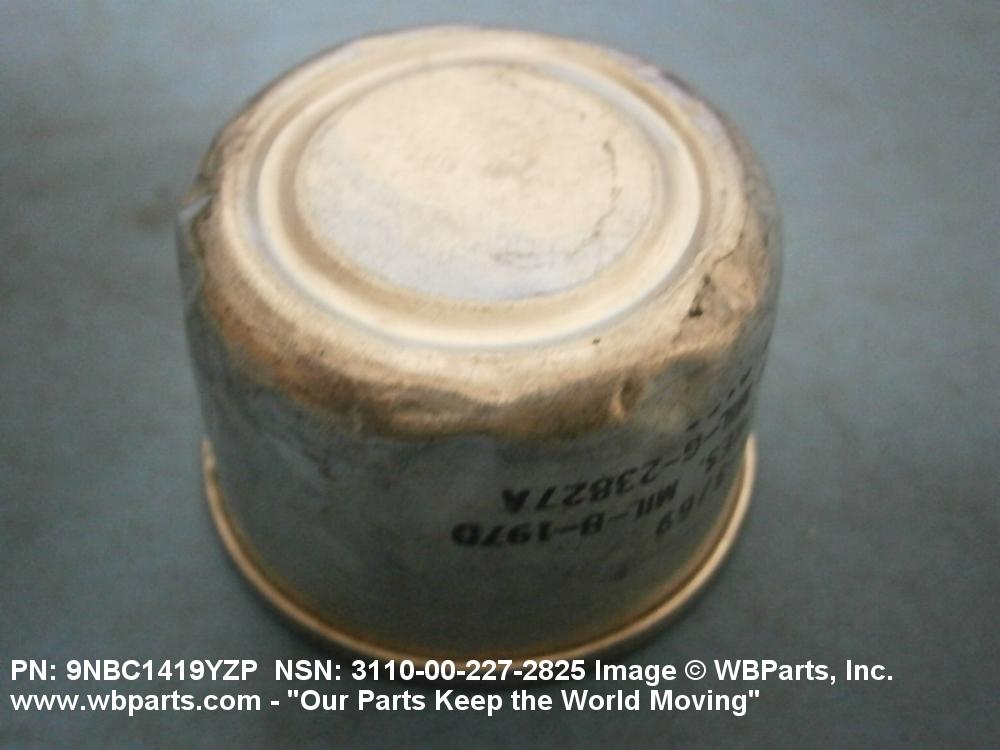

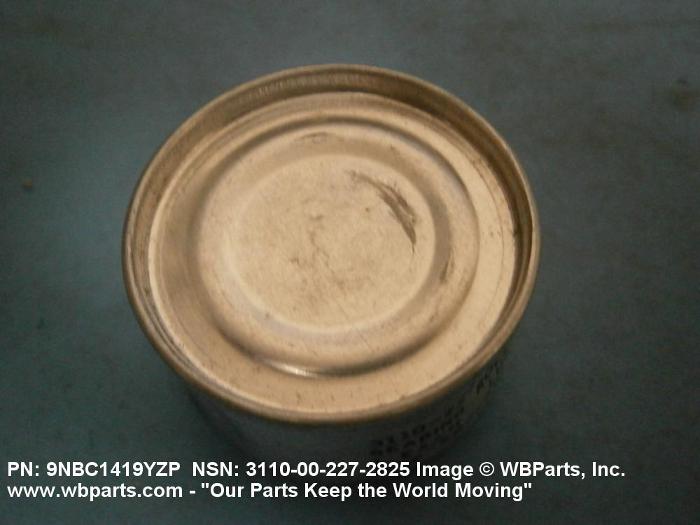

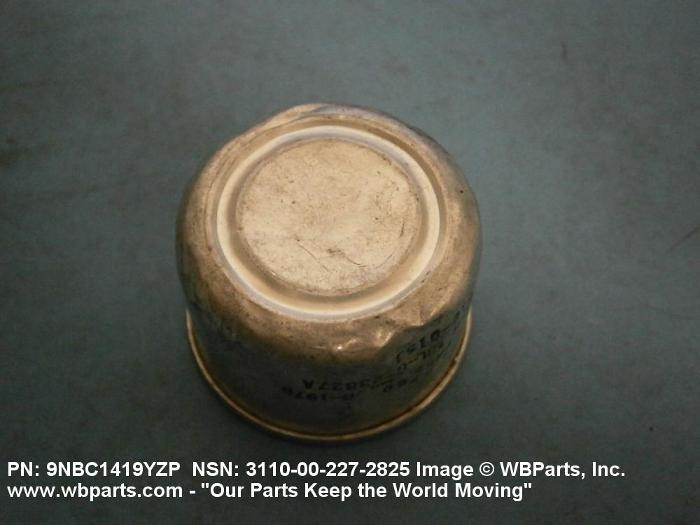

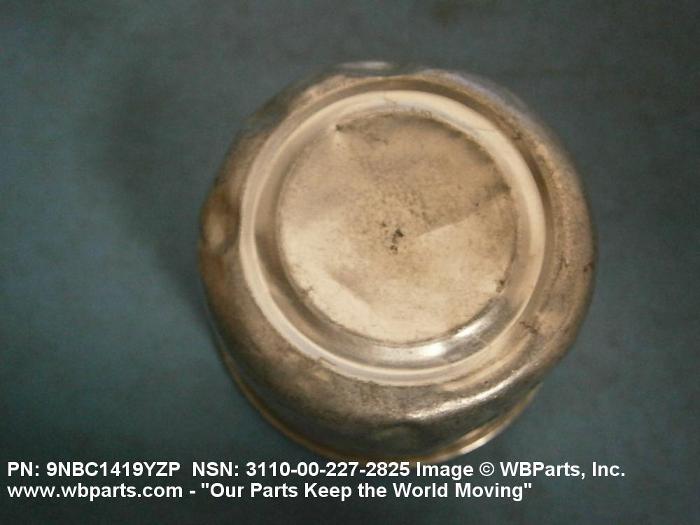

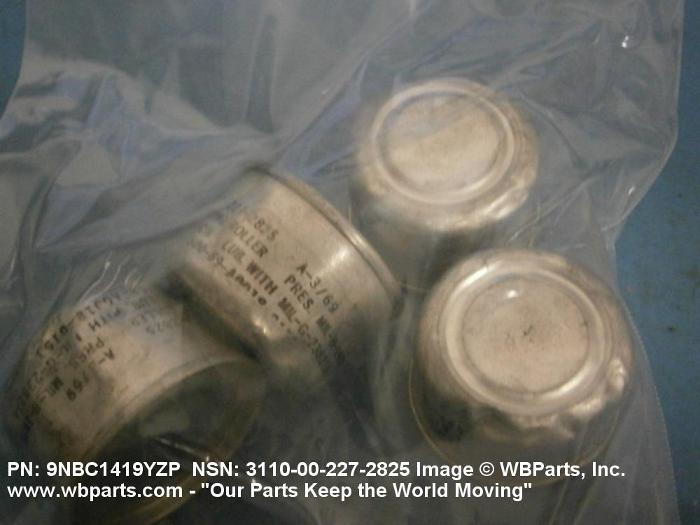

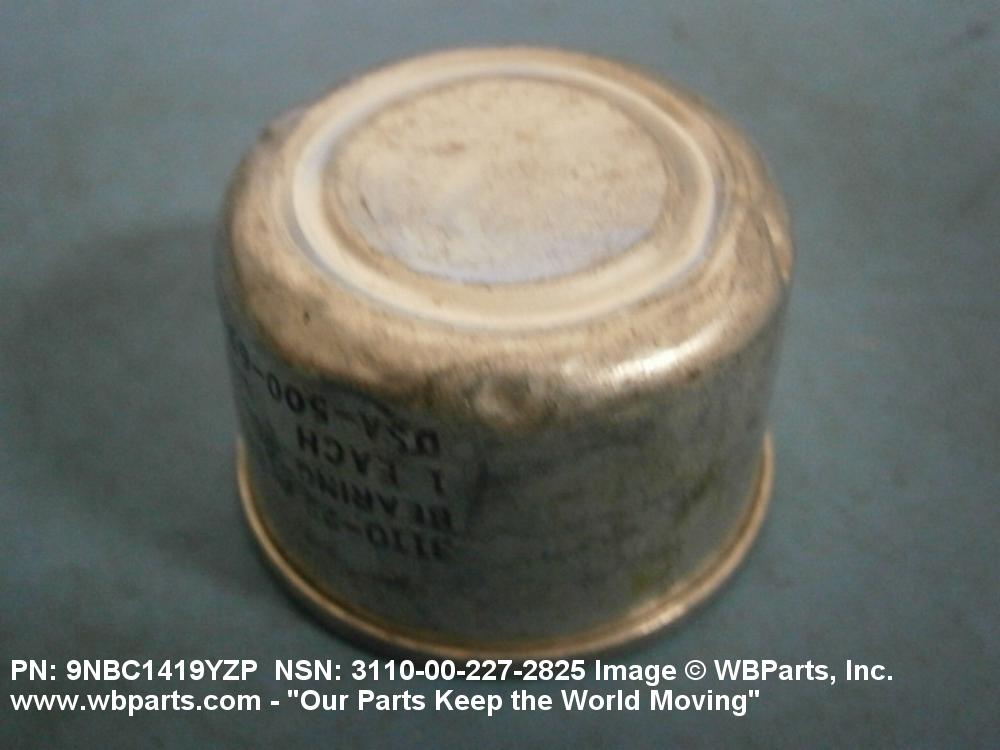

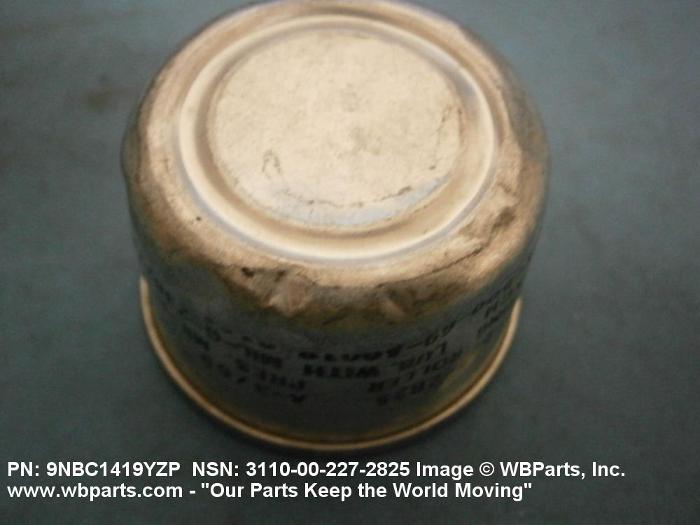

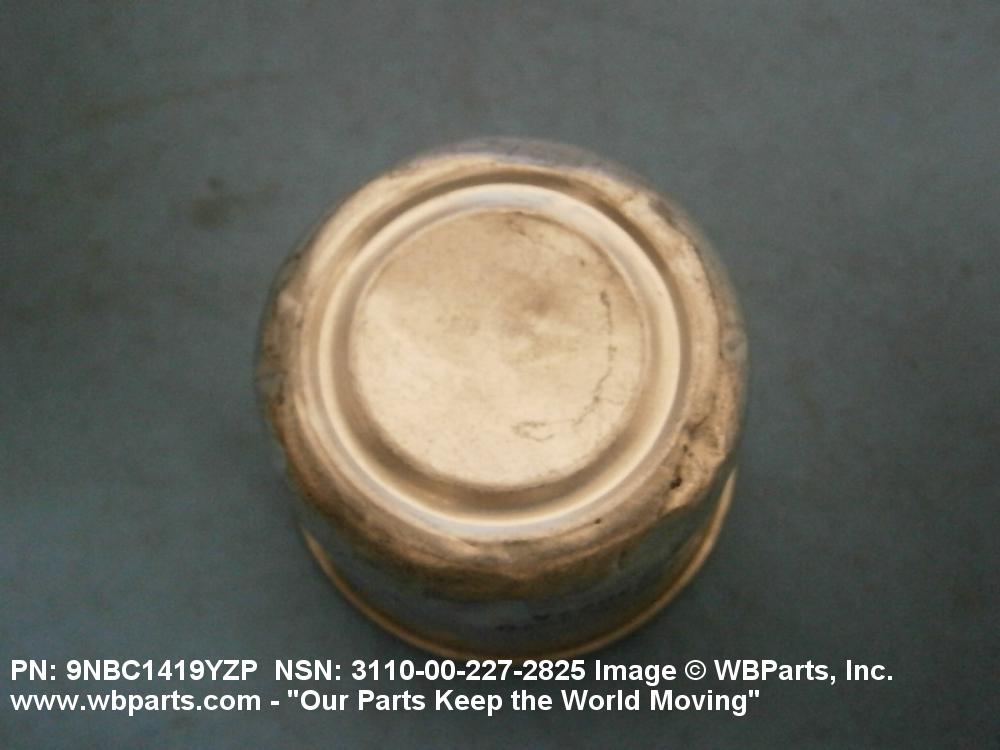

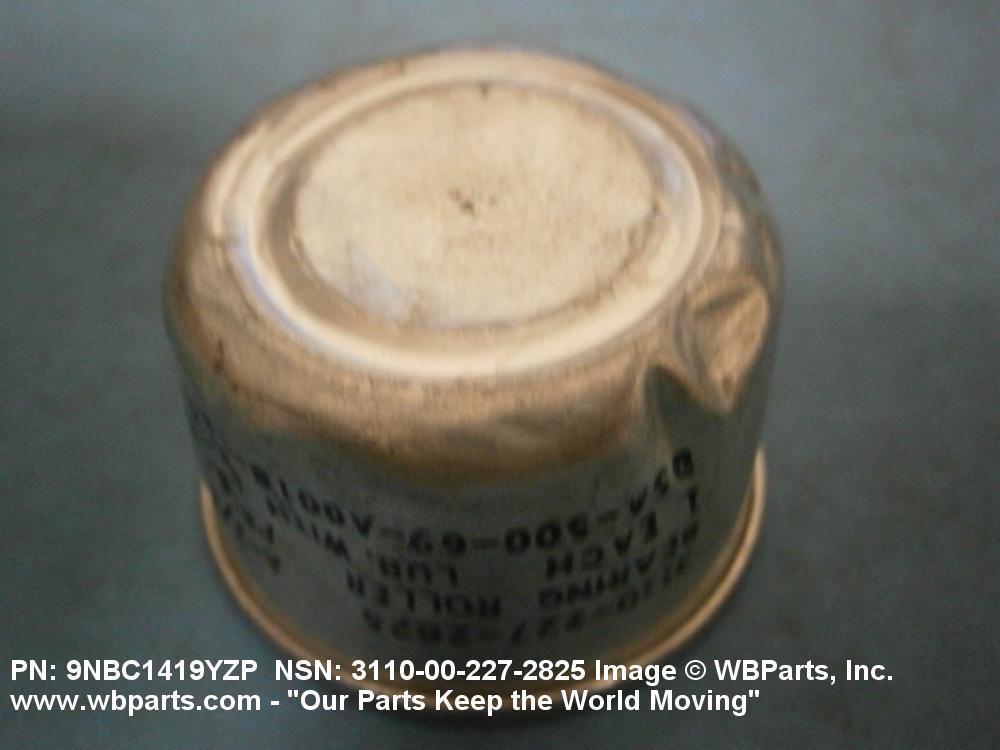

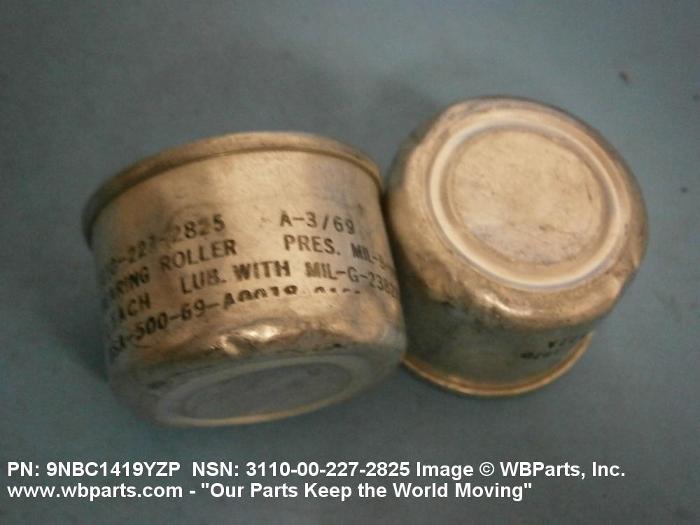

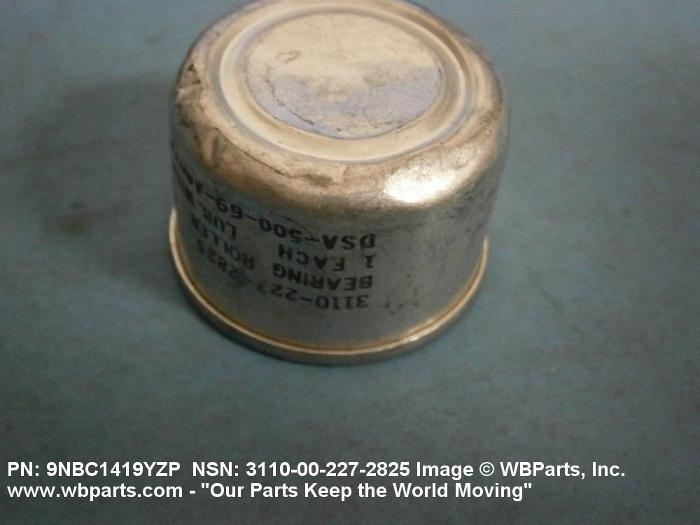

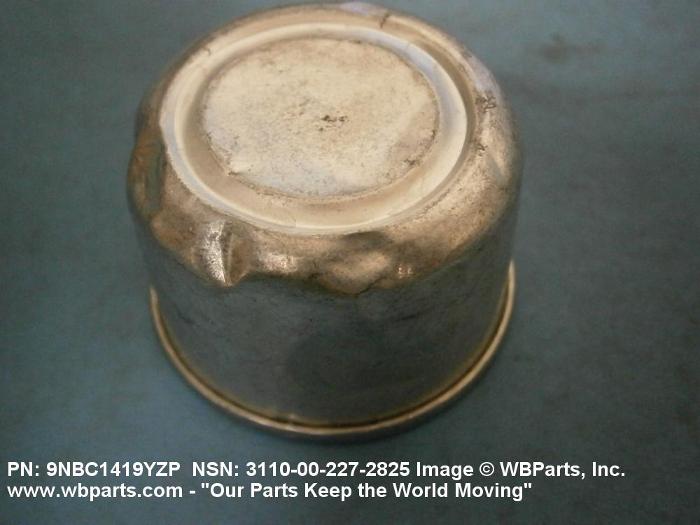

Drawings & Photos | NSN 3110-00-227-2825
Demand History | NSN 3110-00-227-2825
Cross Reference | NSN 3110-00-227-2825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24461-9 | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| 290-9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| 505-9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| 9NBC1419YZP | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9NBC1419YZP | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 9NBC1419YZP2C | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9NBC1419YZP2C | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 9NBC1419YZPANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 9NBC1419YZPMILG3278A | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9NBC1419YZPMILG3278A | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 9NBC141YSP | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9NBC141YSP | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 9NCB1419YZPANG25 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| AT9 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| AT9ANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| AT9PANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| MS24461-9 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS290-9ANG25 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS505-9MILG3278 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-227-2825
Related Products | NSN 3110-00-227-2825
3110-00-227-2826, 3110-00-227-2827, 3110-00-227-2840, 3110-00-227-2841, 3110-00-227-2844
Technical Data | NSN 3110-00-227-2825
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 430 CAM ROLLER, HARDENED AND GROUND, NON-SEPARABLE |
| BORE DIAMETER | 0.5625 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.1875 INCHES NOMINAL |
| OUTER RING WIDTH | 0.7813 INCHES NOMINAL |
| INNER RING WIDTH | 0.8750 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-3278 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN INNER AND OUTER RING |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24461-9 |
Restrictions/Controls & Freight Information | NSN 3110-00-227-2825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-227-2825
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
