NSN 3110-00-227-4220 M451AS, CYRB47, 1001044
Product Details | NEEDLE ROLLER BEARING
3110-00-227-4220 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: M451AS, CYRB47, 1001044, 100104-4, 3110-00-227-4220, 00-227-4220, 3110002274220, 002274220
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-4220 | 00051 ( BEARING, ROLLER, NEEDLE ) |

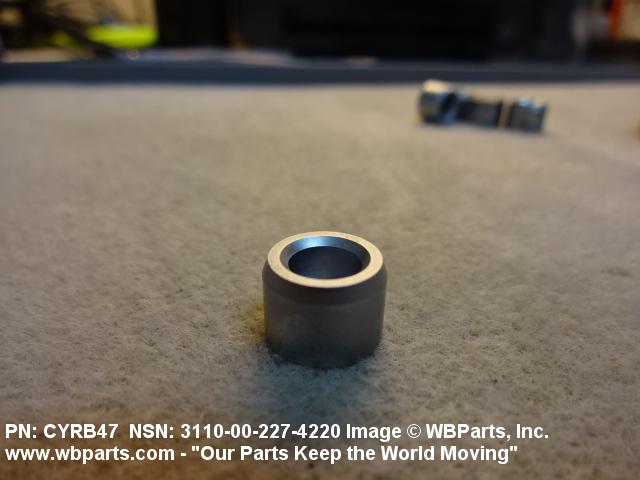

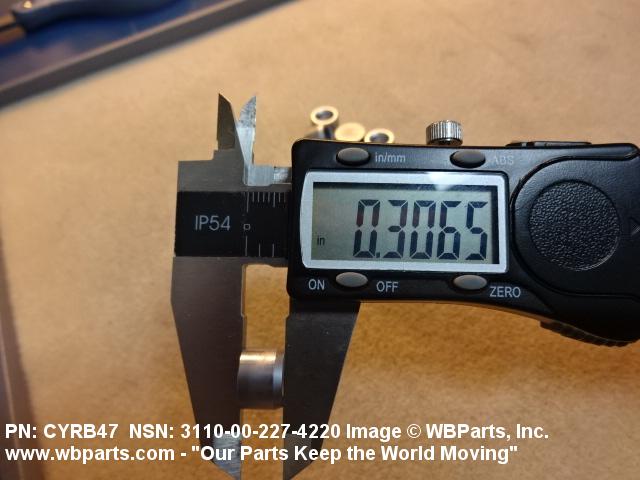

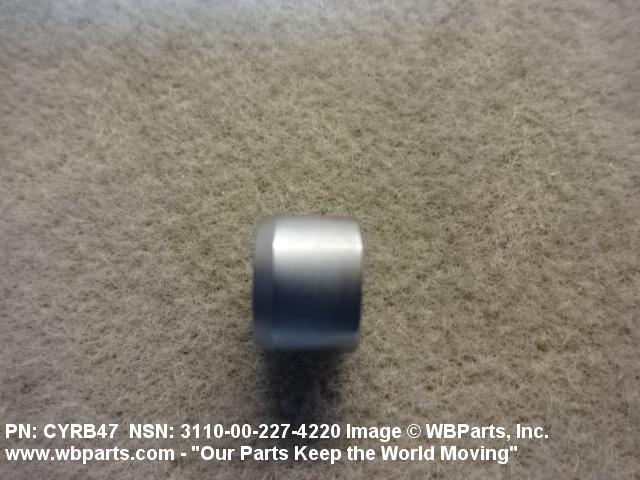

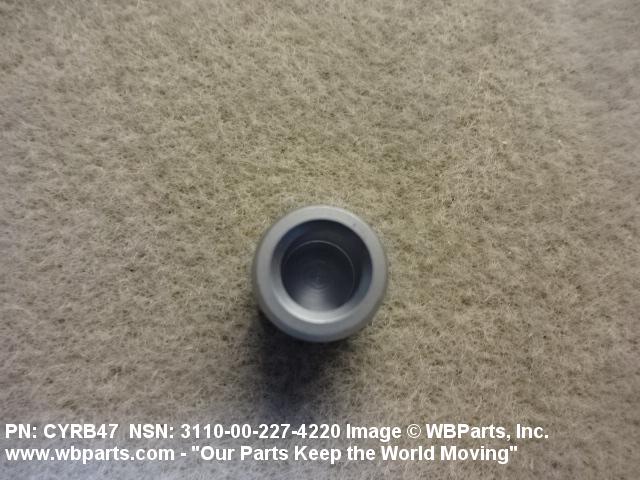

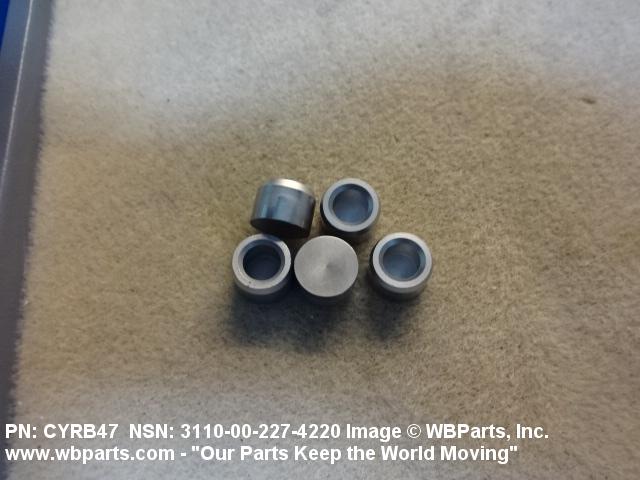

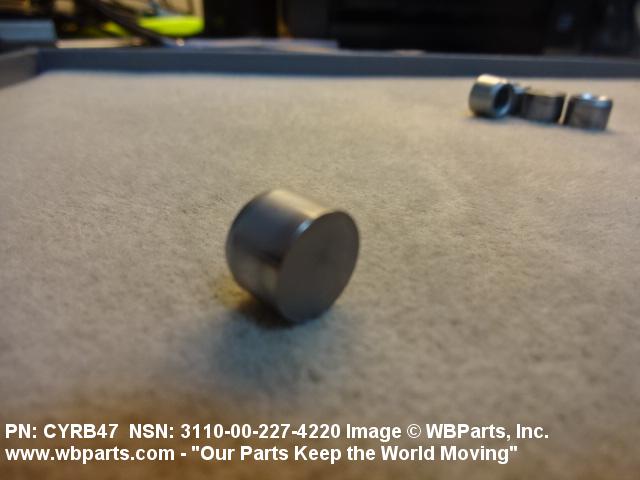

Drawings & Photos | NSN 3110-00-227-4220
Demand History | NSN 3110-00-227-4220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 100104-4 | 2023-12-353 | 6 | DIBBS |
| CYRB47 | 2023-12-353 | 6 | DIBBS |
| M451AS | 2023-12-353 | 6 | DIBBS |
| 100104-4 | 2023-12-344 | 6 | DIBBS |
| CYRB47 | 2023-12-344 | 6 | DIBBS |
| M451AS | 2023-12-344 | 6 | DIBBS |
| 100104-4 | 2022-11-312 | 16 | DIBBS |
| CYRB47 | 2022-11-312 | 16 | DIBBS |
| M451AS | 2022-11-312 | 16 | DIBBS |
| 100104-4 | 2019-02-44 | 7 | DIBBS |
| CYRB47 | 2019-02-44 | 7 | DIBBS |
| M451AS | 2019-02-44 | 7 | DIBBS |
| 100104-4 | 2019-02-36 | 7 | DIBBS |
| CYRB47 | 2019-02-36 | 7 | DIBBS |
| M451AS | 2019-02-36 | 7 | DIBBS |
| 100104-4 | 2019-01-25 | 2 | DIBBS |
| CYRB47 | 2019-01-25 | 2 | DIBBS |
| M451AS | 2019-01-25 | 2 | DIBBS |
| 100104-4 | 2019-01-17 | 2 | DIBBS |
| CYRB47 | 2019-01-17 | 2 | DIBBS |
| M451AS | 2019-01-17 | 2 | DIBBS |
| 3110-00-227-4220 | 2018-12-344 | 1 | DIBBS |
| 3110-00-227-4220 | 2018-07-183 | 5 | United States |
| 3110-00-227-4220 | 2018-06-172 | 20 | United States |
| 3110-00-227-4220 | 2018-03-87 | 1 | DIBBS |
| 3110-00-227-4220 | 2018-03-74 | 1 | DIBBS |
| 3110-00-227-4220 | 2017-10-299 | 6 | DIBBS |
| 3110-00-227-4220 | 2017-02-49 | 6 | DIBBS |
| 3110-00-227-4220 | 2017-02-40 | 6 | DIBBS |
| 3110-00-227-4220 | 2016-12-365 | 1 | DIBBS |
| 3110-00-227-4220 | 2016-12-357 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-227-4220
Technical Data | NSN 3110-00-227-4220
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING ROLLER |
| SURFACE TREATMENT | OXIDE OUTER RACE |

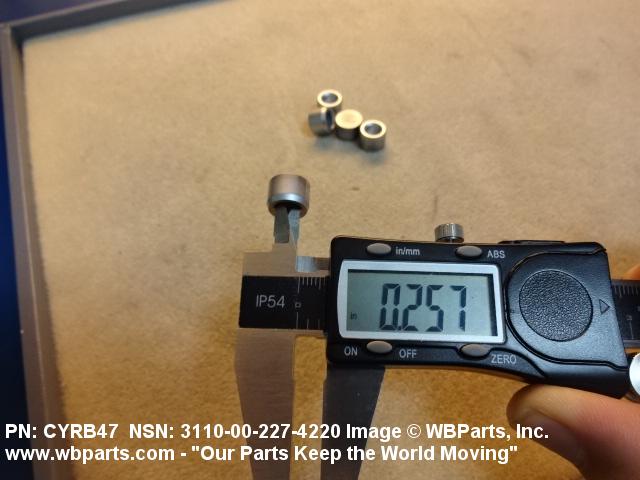

| BORE DIAMETER | 0.2500 INCHES NOMINAL |

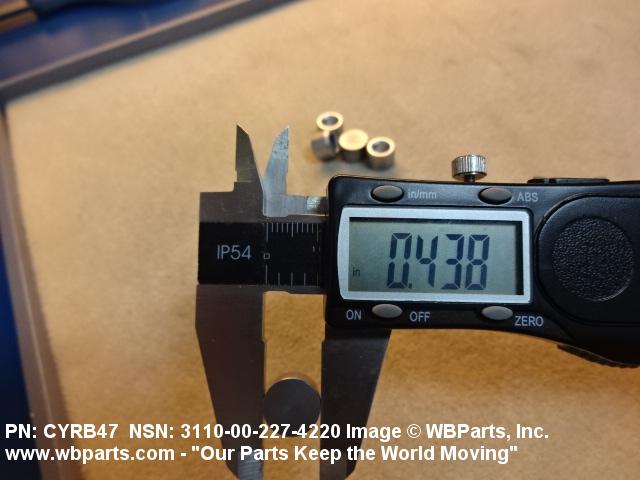

| OVERALL OUTSIDE DIAMETER | 0.4380 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| ALIGNMENT TYPE | RIGID |
Restrictions/Controls & Freight Information | NSN 3110-00-227-4220
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
