NSN 3110-00-277-0153 CR3A180, EL2713180, EL271-3-180
Product Details | SELF-ALIGNING ROLLER BEARING
3110-00-277-0153 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Part Alternates: CR3A180, EL2713180, EL271-3-180, EL2953157, EL295-3-157, EL2983168, EL298-3-168, XC210, 3110-00-277-0153, 00-277-0153, 3110002770153, 002770153
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-277-0153 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
Drawings & Photos | NSN 3110-00-277-0153
Cross Reference | NSN 3110-00-277-0153
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR3A180 | 30177 | IWC LLC DBA IDEAL WINDLASS COMPANY |
| EL271-3-180 | 30177 | IWC LLC DBA IDEAL WINDLASS COMPANY |
| EL295-3-157 | 30177 | IWC LLC DBA IDEAL WINDLASS COMPANY |
| EL298-3-168 | 30177 | IWC LLC DBA IDEAL WINDLASS COMPANY |
| XC210 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-277-0153
Technical Data | NSN 3110-00-277-0153
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CONE STEEL CUP STEEL LOCKING COLLAR STEEL OR COPPER ALLOY OR ALUMINUM RETAINER STEEL ROLLER |

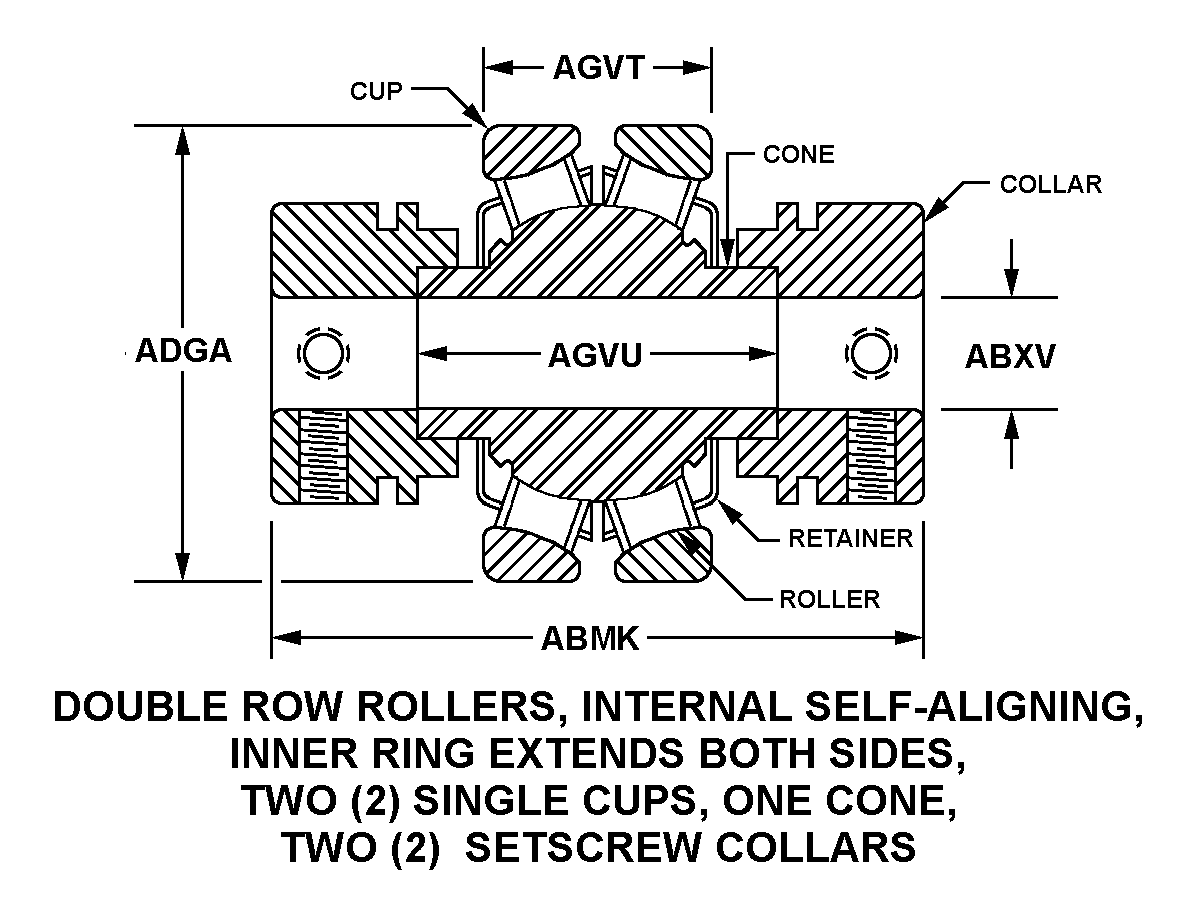

| STYLE DESIGNATOR | 294 DOUBLE ROW ROLLERS, INTERNAL SELF-ALIGNING, INNER RING EXTENDS BOTH SIDES, TWO (2) SINGLE CUPS, ONE CONE, TWO (2) SETSCREW COLLARS |
| OVERALL WIDTH | 3.4844 INCHES MINIMUM AND 3.5156 INCHES MAXIMUM |
| BORE DIAMETER | 2.6250 INCHES MINIMUM AND 2.6260 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 5.1172 INCHES MINIMUM AND 5.1182 INCHES MAXIMUM |
| OUTER RING WIDTH | 2.1250 INCHES NOMINAL |
| INNER RING WIDTH | ANY ACCEPTABLE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | EXPOSED SURFACES OF INNER RING CADMIUM PLATED |
Restrictions/Controls & Freight Information | NSN 3110-00-277-0153
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-277-0153
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
