NSN 3110-00-364-2889 147032, 00-364-2889, 003642889
Product Details | OUTER BEARING RING
3110-00-364-2889 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Part Alternates: 147032, 3110-00-364-2889, 00-364-2889, 3110003642889, 003642889
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 FEB 1974 | 00-364-2889 | 00029 ( RING, BEARING, OUTER ) |
Drawings & Photos | NSN 3110-00-364-2889
Demand History | NSN 3110-00-364-2889
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-364-2889 | 2016-05-139 | 70 | DIBBS |
| 3110-00-364-2889 | 2016-05-131 | 70 | DIBBS |
Cross Reference | NSN 3110-00-364-2889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 147032 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-364-2889
Related Products | NSN 3110-00-364-2889
Technical Data | NSN 3110-00-364-2889
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/11,T651 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

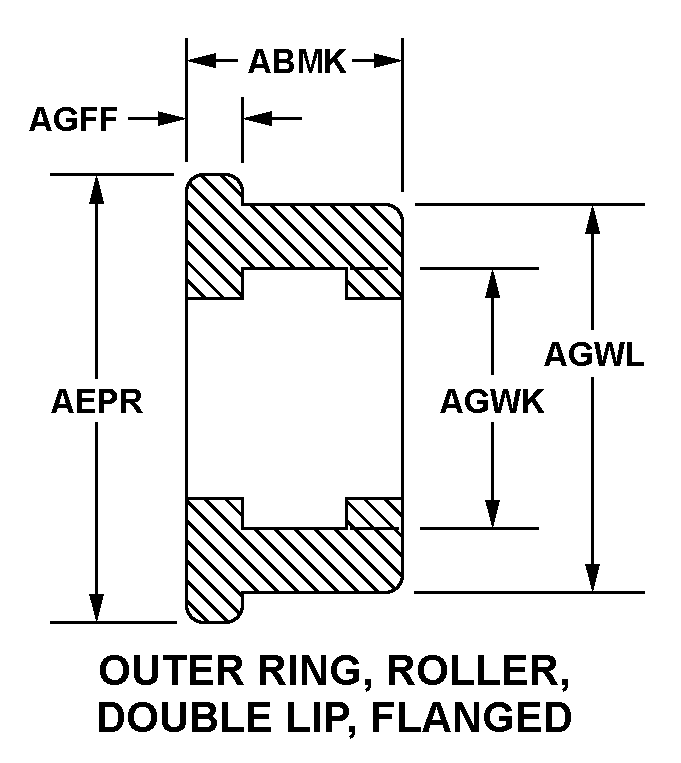

| STYLE DESIGNATOR | 516 OUTER RING, ROLLER, DOUBLE LIP, FLANGED |
| OVERALL WIDTH | 0.8750 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 7.5000 INCHES NOMINAL |
| FLANGE WIDTH | 0.1875 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 6.0400 INCHES MINIMUM AND 6.0420 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 6.2500 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
| MANUFACTURERS CODE | 21877 |
| DESIGN CONTROL REFERENCE | 147032 |
Restrictions/Controls & Freight Information | NSN 3110-00-364-2889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-364-2889
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
