NSN 3110-00-385-3504 LLM1203105, LLM1203-105, XJ15SB25

Product Details | CYLINDRICAL ROLLER BEARING

3110-00-385-3504 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.

Part Alternates: LLM1203105, LLM1203-105, XJ15SB25, 59637, 1228611, 122861-1 , 3110-00-385-3504, 00-385-3504, 3110003853504, 003853504

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	25 MAR 1974	00-385-3504	00015 ( BEARING, ROLLER, CYLINDRICAL )

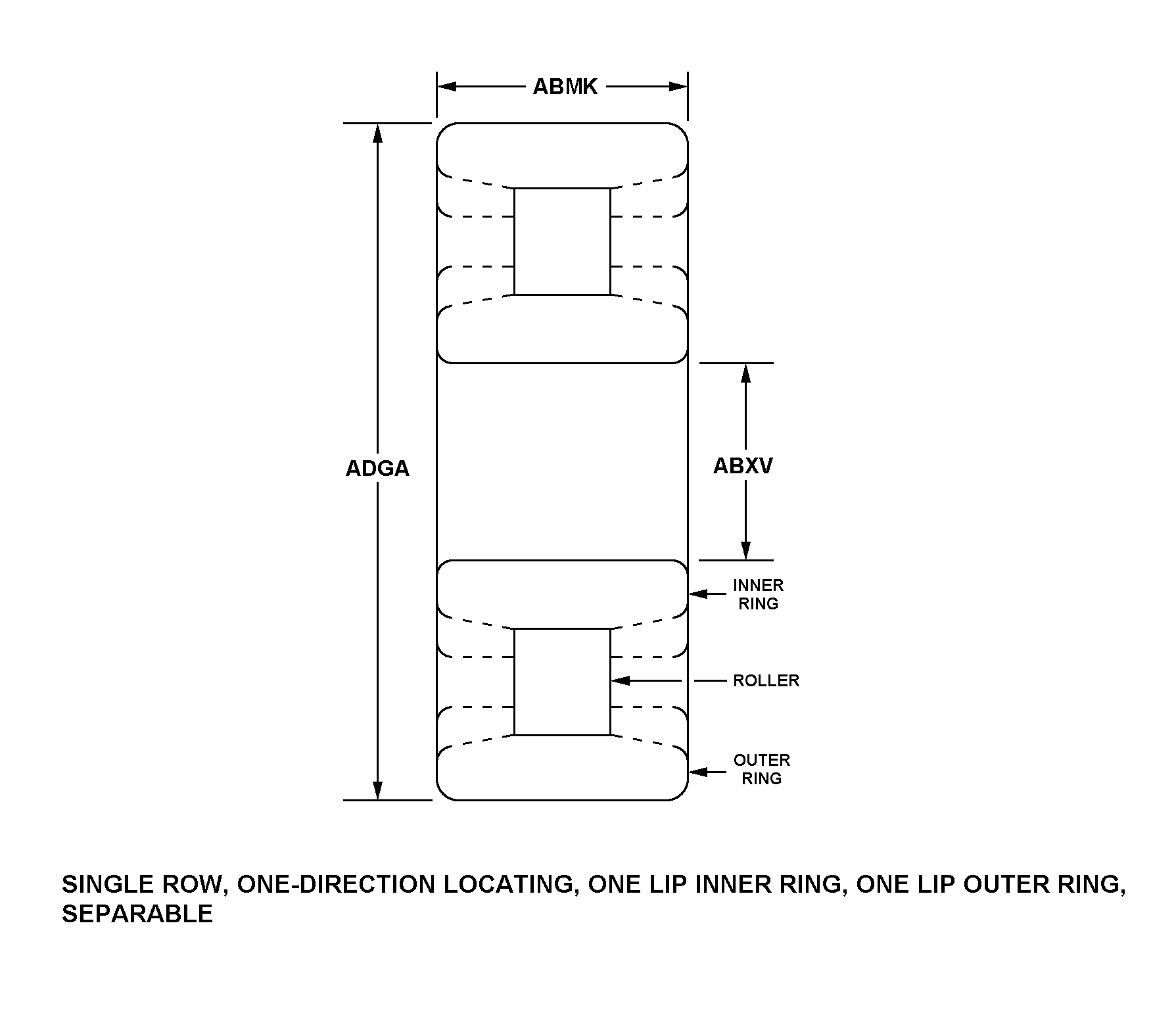

Drawings & Photos | NSN 3110-00-385-3504

Part Number	Request Date	QTY	Origin
59637	2024-04-93	50	DIBBS
59637	2024-02-58	19	DIBBS
3110-00-385-3504	2020-10-304	1	DIBBS-RFPs
59637	2020-08-217	49	DIBBS
59637	2020-02-54	82	DIBBS
3110-00-385-3504	2015-10-287	36	DIBBS
3110-00-385-3504	2015-10-279	36	DIBBS
3110-00-385-3504	2015-06-155	31	DIBBS
3110-00-385-3504	2015-05-139	51	DIBBS
3110-00-385-3504	2015-05-131	23	DIBBS
3110-00-385-3504	2015-05-126	28	DIBBS
3110-00-385-3504	2015-03-74	19	DIBBS

Cross Reference | NSN 3110-00-385-3504

Part Number	Cage Code	Manufacturer
59637	51600	EMERSON POWER TRANSMISSION CORPORATION
59637	59211	PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY
59637	93835	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION
LLM1203-105	51600	EMERSON POWER TRANSMISSION CORPORATION
XJ15SB25	43991	FAG BEARINGS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-385-3504

Compare

Related Products | NSN 3110-00-385-3504

3110-00-385-3510, 3110-00-385-4279, 3110-00-385-6989, 3110-00-385-8143, 3110-00-385-8145

Technical Data | NSN 3110-00-385-3504

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OR STEEL COMP 8620 INNER RING STEEL COMP 8620 OR STEEL COMP E52100 OUTER RING STEEL COMP 8620 ROLLER
STYLE DESIGNATOR	252G SINGLE ROW, ONE-DIRECTION LOCATING, ONE LIP INNER RING, ONE LIP OUTER RING, SEPARABLE
OVERALL WIDTH	0.4670 INCHES NOMINAL
BORE DIAMETER	0.6693 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.5748 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION	RBEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
LOCATING FEATURE	ONE DIRECTION
INTERNAL FIT-UP DESIGNATION	STANDARD
SPECIAL FEATURES	HEAT STABILIZED AT M 65 DEG F TO P 300 DEG F

Restrictions/Controls & Freight Information | NSN 3110-00-385-3504

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-385-3504

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
