NSN 3110-00-414-3962 MKP3ALFS464, KP3ALFS464, 121638523L

Product Details | AIRFRAME BALL BEARING

3110-00-414-3962 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MKP3ALFS464, KP3ALFS464, 121638523L, 121-63852-3L, 3110-00-414-3962, 00-414-3962, 3110004143962, 004143962

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 MAY 1974	00-414-3962	00041 ( BEARING, BALL, AIRFRAME )

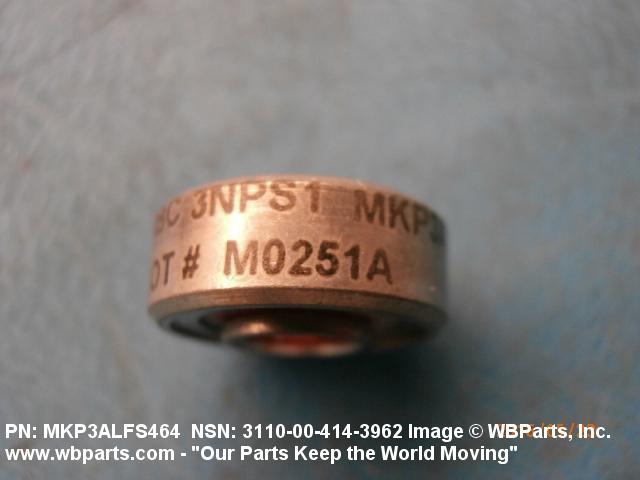

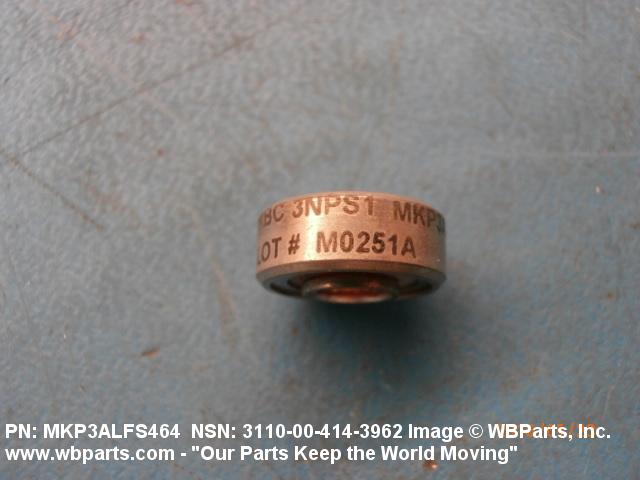

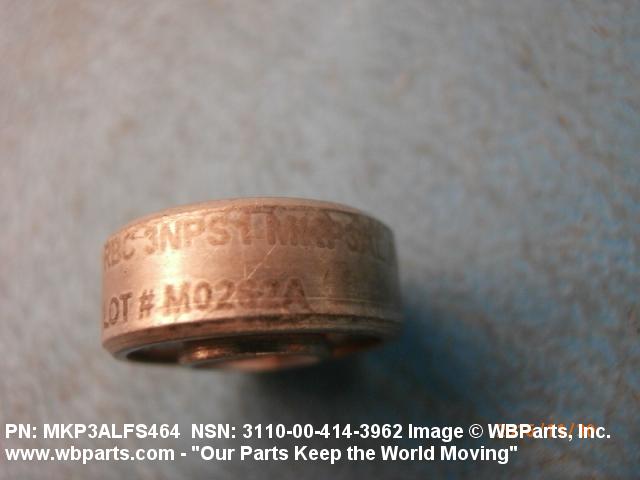

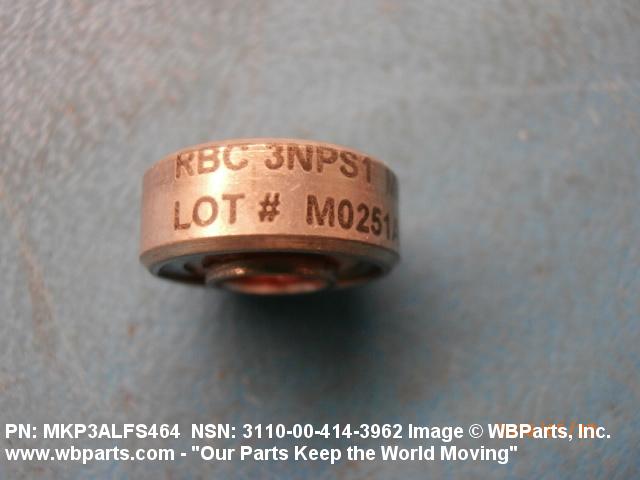

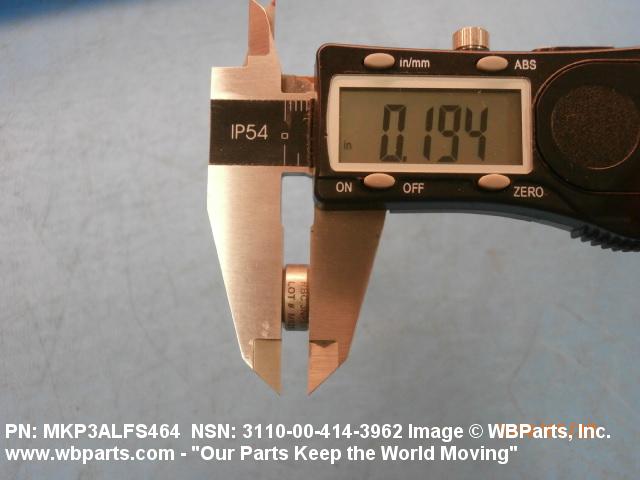

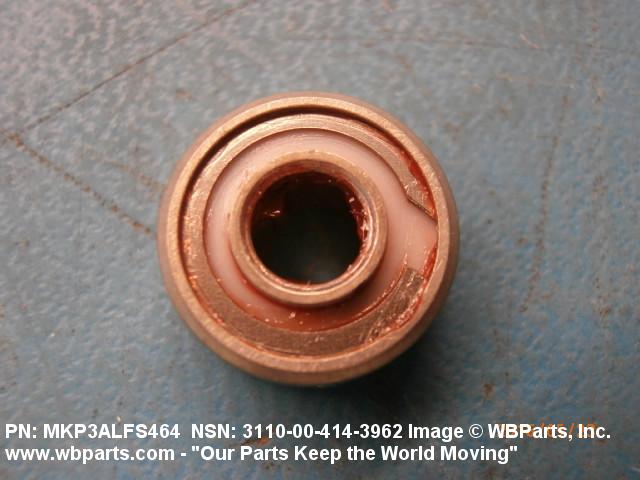

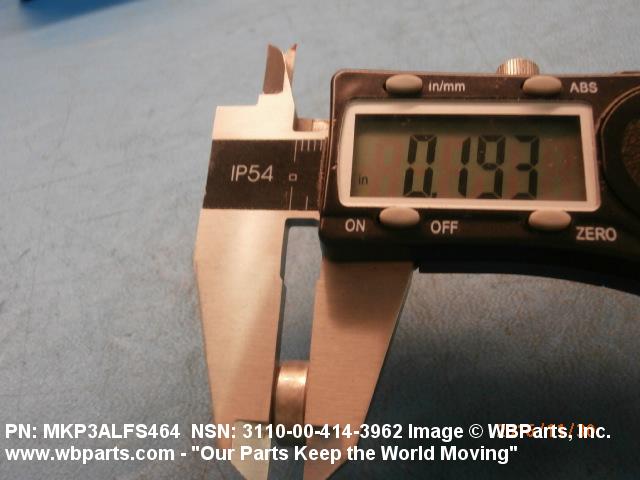

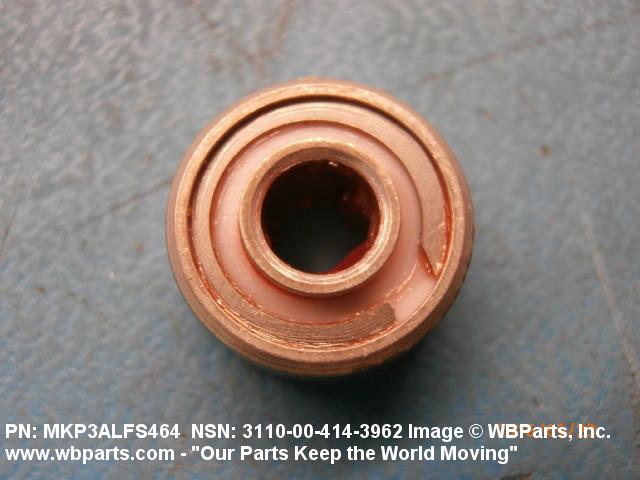

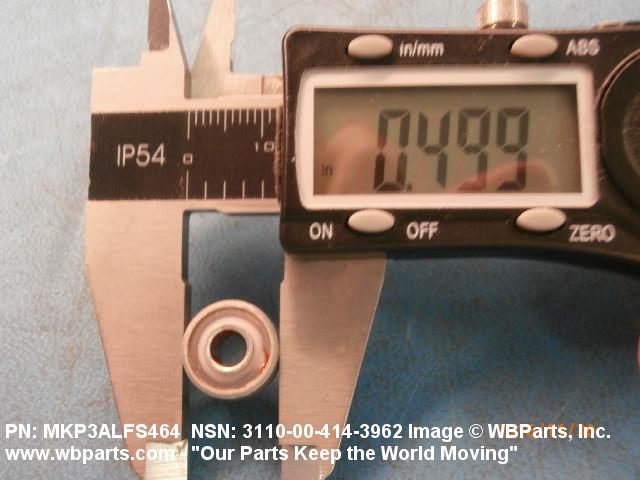

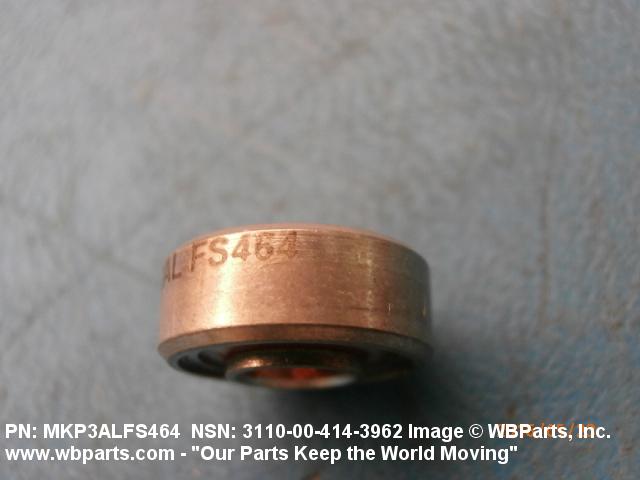

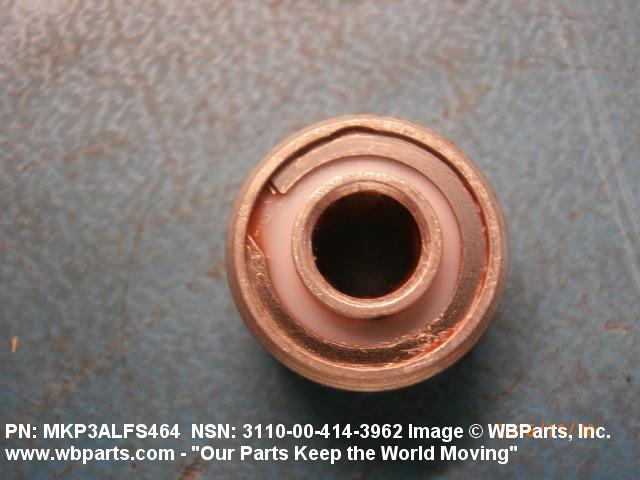

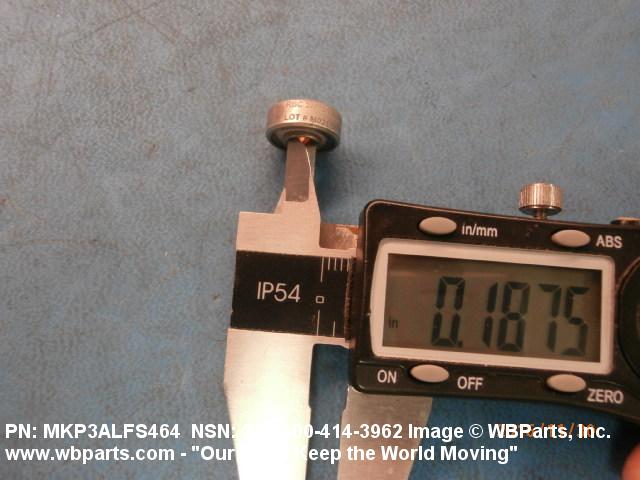

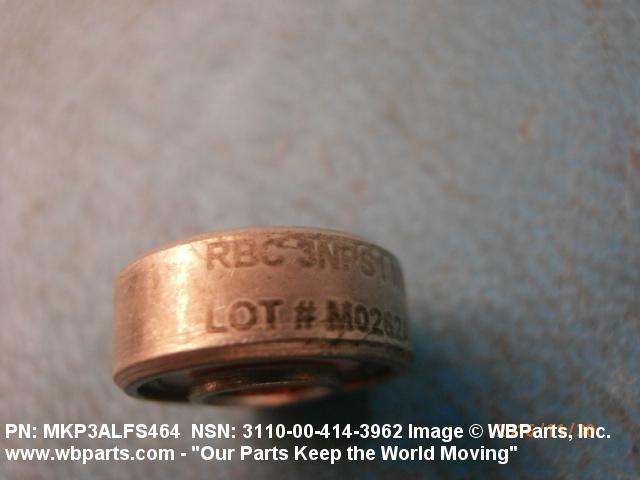

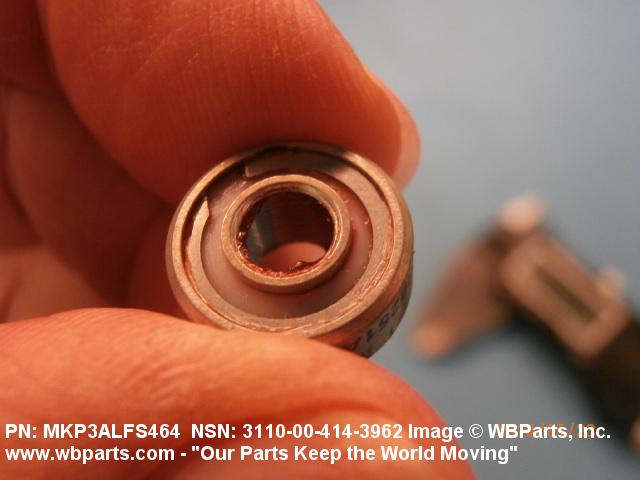

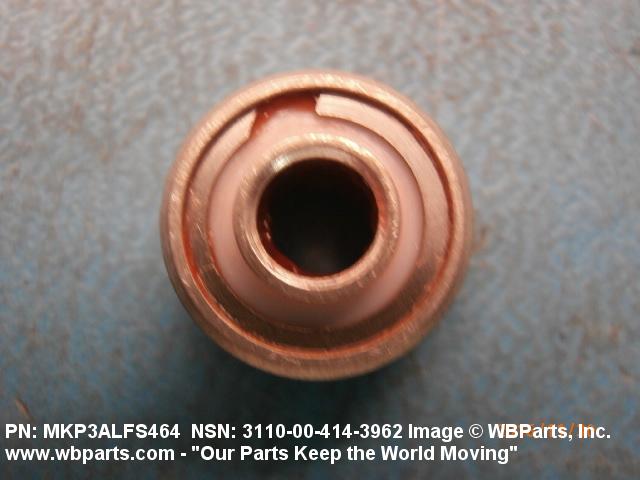

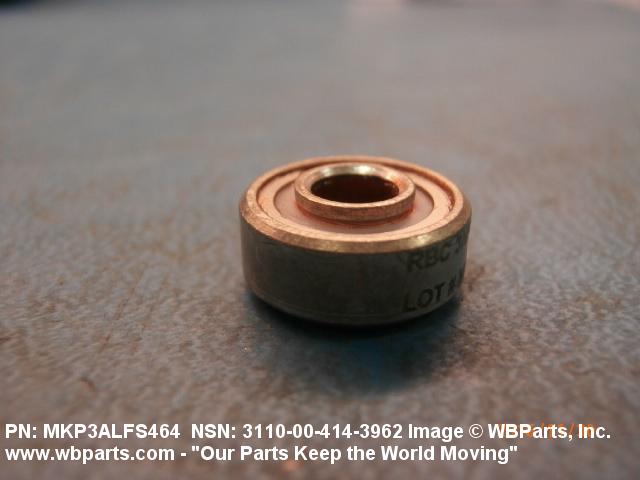

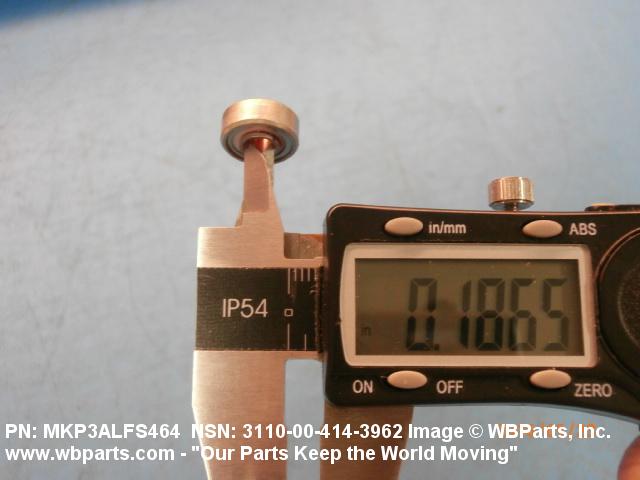

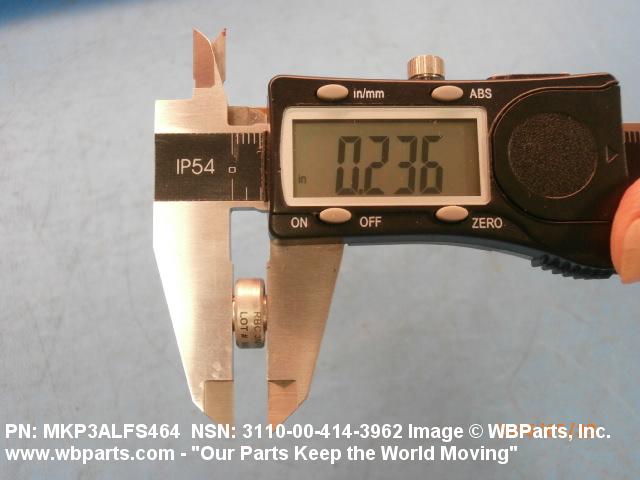

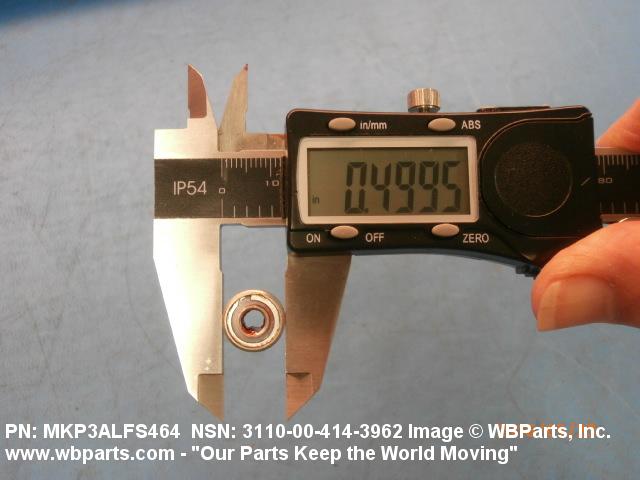

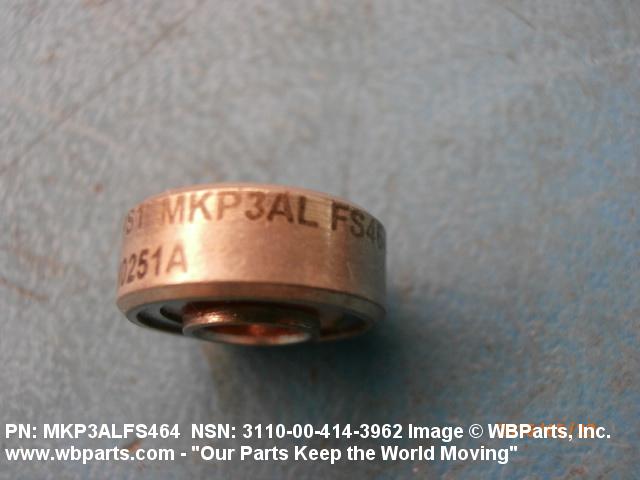

Drawings & Photos | NSN 3110-00-414-3962

Part Number	Request Date	QTY	Origin
MKP3ALFS464	2025-02-42	4	US
MKP3ALFS464	2024-08-240	890	US
KP3ALFS464	2024-07-200	120	US
121-63852-3L	2022-07-198	144	DIBBS
121-63852-3L	2022-03-79	110	DIBBS
121-63852-3L	2021-12-353	58	DIBBS
121-63852-3L	2021-09-269	23	DIBBS
121-63852-3L	2021-05-144	37	DIBBS
MKP3ALFS464	2020-06-177	100	US
3110-00-414-3962	2017-11-311	174	DIBBS
3110-00-414-3962	2017-06-177	1400	BR
MKP3ALFS464	2015-05-149	25	United States
MKP3ALFS464	2015-05-149	120	United States
3110-00-414-3962	2015-02-53	112	DIBBS
KP3ALFS464	2014-02-41	18	US
3110-00-414-3962	2012-06-164	114	DIBBS
3110-00-414-3962	2012-05-141	38	DIBBS
3110-00-414-3962	2011-02-35	55	DIBBS
KP3ALFS464	2010-12-343	100	United States
3110-00-414-3962	2009-05-126	110	DIBBS
3110-00-414-3962	2007-08-221	90	DIBBS
3110-00-414-3962	2007-02-46	128	DIBBS

Cross Reference | NSN 3110-00-414-3962

Part Number	Cage Code	Manufacturer
121-63852-3L	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
121-63852-3L	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
121-63852-3L	94697	MOOG, INC.
KP3ALFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP3ALFS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MKP3ALFS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
MKP3ALFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-414-3962

Compare

Related Products | NSN 3110-00-414-3962

3110-00-414-7797, 3110-00-414-7872, 3110-00-414-7874, 3110-00-414-7907, 3110-00-414-7917

Technical Data | NSN 3110-00-414-3962

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE OR PLASTIC SEAL STEEL COMP 301 SHIELD
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 3652 ASSN STD 1ST MATERIAL RESPONSE OR AMS 3666 ASSN STD 2ND MATERIAL RESPONSE SEAL MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE SHIELD
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	0.1900 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	0.5000 INCHES NOMINAL
OUTER RING WIDTH	0.1960 INCHES NOMINAL
INNER RING WIDTH	0.2370 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.3
SHIELD QUANTITY	2
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	HEAT STABILIZED FOR OPERATION AT 250 DEG F

Restrictions/Controls & Freight Information | NSN 3110-00-414-3962

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-414-3962

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
