NSN 3110-00-450-1618 2629179, 00-450-1618, 004501618
Product Details | BEARING RETAINING PLATE
3110-00-450-1618 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 2629179, 3110-00-450-1618, 00-450-1618, 3110004501618, 004501618
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 MAY 1971 | 00-450-1618 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-00-450-1618
Demand History | NSN 3110-00-450-1618
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-450-1618 | 2018-04-96 | 1 | TH |
| 3110-00-450-1618 | 2012-02-44 | 4 | NATO |
| 2629179 | 2012-01-27 | 4 |
Cross Reference | NSN 3110-00-450-1618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2629179 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-450-1618
Technical Data | NSN 3110-00-450-1618
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| OUTSIDE DIAMETER | 9.500 INCHES NOMINAL |
| LENGTH | 0.812 INCHES NOMINAL |

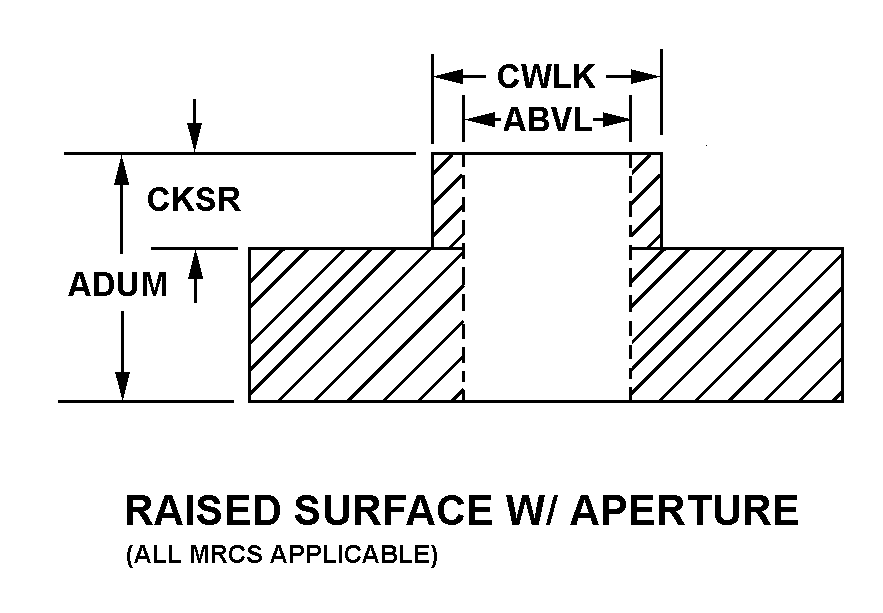

| CROSS-SECTIONAL SHAPE STYLE | C4A RAISED SURFACE WITH APERTURE |
| APERTURE DIAMETER | 4.375 INCHES MINIMUM AND 4.377 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.531 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| MOUNTING BOLT CIRCLE DIAMETER | 8.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 44114 |
| DESIGN CONTROL REFERENCE | 2629179 |
Restrictions/Controls & Freight Information | NSN 3110-00-450-1618
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
