NSN 3110-00-616-5476 MS2764816, MS27648-16, AS27648

Product Details | AIRFRAME BALL BEARING

3110-00-616-5476 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764816, MS27648-16, AS27648, GB520CU16, KP16 BS16, KP16BS, KP16BS FS464, KP16BS16, KP16BSA1488, KP16BSFS464, KP16BSNFC, 3110-00-616-5476, 00-616-5476, 3110006165476, 006165476

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	15 FEB 1975	00-616-5476	00041 ( BEARING, BALL, AIRFRAME )

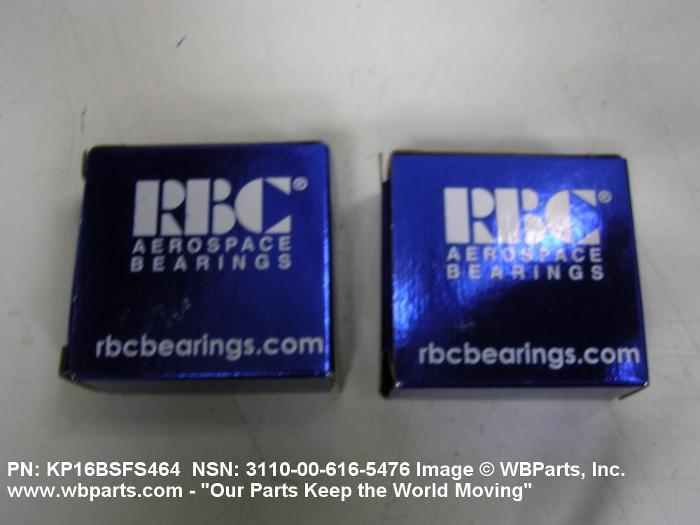

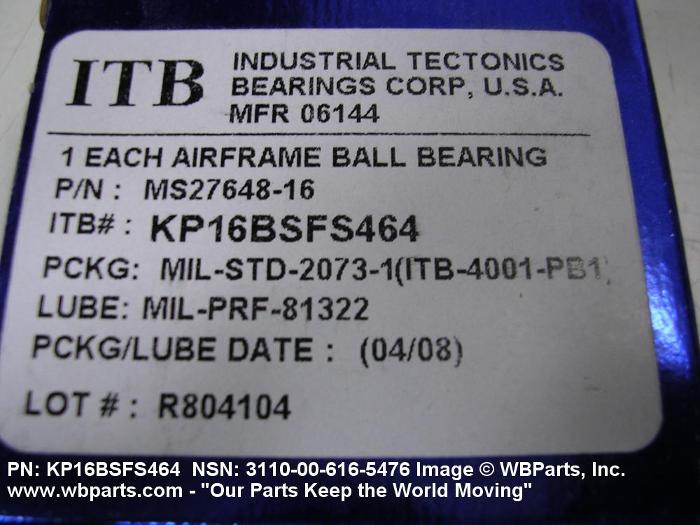

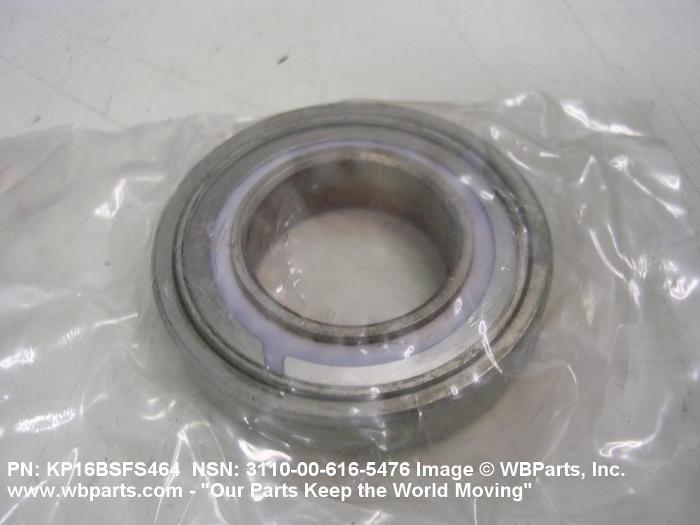

Drawings & Photos | NSN 3110-00-616-5476

Part Number	Request Date	QTY	Origin
MS2764816	2025-07-183	25	United States
MS2764816	2024-10-298	24	United States
3110-00-616-5476	2023-05-121	96	US
MS2764816	2023-03-60	176	CN
3110-00-616-5476	2023-01-25	200	IT
3110-00-616-5476	2023-01-24	4	Czech Republic
MS2764816	2021-04-104	5	United States
MS2764816	2021-04-102	2	US
AS27648	2020-11-323	2	UK
MS2764816	2020-10-289	2	South Africa
MS2764816	2020-10-289	4	South Africa
3110-00-616-5476	2020-05-142	1	US
3110-00-616-5476	2018-01-25	1	DIBBS-RFPs
MS2764816	2014-03-90	1	Thailand
MS27648-16	2012-11-310	6
3110-00-616-5476	2012-06-158	321	DIBBS
3110-00-616-5476	2011-12-340	50	US
3110-00-616-5476	2011-12-340	50	US
3110-00-616-5476	2011-12-340	50	US
MS2764816	2011-12-340	50	US
MS2764816	2011-12-340	50	US
3110-00-616-5476	2011-07-188	1	Spain
3110-00-616-5476	2010-11-307	1	Brazil
3110-00-616-5476	2010-11-305	1	US
AS27648	2010-10-279	10	CN
3110-00-616-5476	2010-05-139	31	DIBBS
KP16BS	2010-03-83	2	United States
KP16BS	2008-07-207	2	Argentina
MS2764816	2008-04-112	4	US
MS2764816	2007-12-344	3	US

Cross Reference | NSN 3110-00-616-5476

Part Number	Cage Code	Manufacturer
AS27648	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
GB520CU16	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
KP16 BS16	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP16BS	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KP16BS FS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP16BS FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP16BSA1488	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP16BSNFC	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
MS27648-16	14153	DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
MS27648-16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27648-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-616-5476

Compare

Related Products | NSN 3110-00-616-5476

3110-00-616-7554, 3110-00-616-7645, 3110-00-617-1515, 3110-00-617-3652, 3110-00-617-3663

Technical Data | NSN 3110-00-616-5476

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OR STEEL COMP 1335H BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	200 SINGLE ROW, EXTERNAL SELF ALIGNING, WITH ALIGNING RING
BORE DIAMETER	0.9990 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	1.9365 INCHES MINIMUM AND 1.9375 INCHES MAXIMUM
OUTER RING WIDTH	0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM
INNER RING WIDTH	0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	EXTERNAL
LOAD DIRECTION	RADIAL
FEATURES PROVIDED	ALIGNING RING
SPECIAL FEATURES	80 PCT FULL OF SPECIFIED LUBRICANT,7 DEGREE 25 MINUTE SELF ALIGNMENT IN EITHER DIRECTION

Restrictions/Controls & Freight Information | NSN 3110-00-616-5476

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-616-5476

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
