NSN 3110-00-763-1527 11251069, 1125-1-069, 22226CJKW33SNW26
Product Details | SELF-ALIGNING ROLLER BEARING
3110-00-763-1527 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Part Alternates: 11251069, 1125-1-069, 22226CJKW33SNW26, 22226CJKW33-SNW26, 22226CKJW33SNW26, 22226CKJW33-SNW26, 3110-00-763-1527, 00-763-1527, 3110007631527, 007631527
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 APR 1972 | 00-763-1527 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
Drawings & Photos | NSN 3110-00-763-1527
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-763-1527
Technical Data | NSN 3110-00-763-1527
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

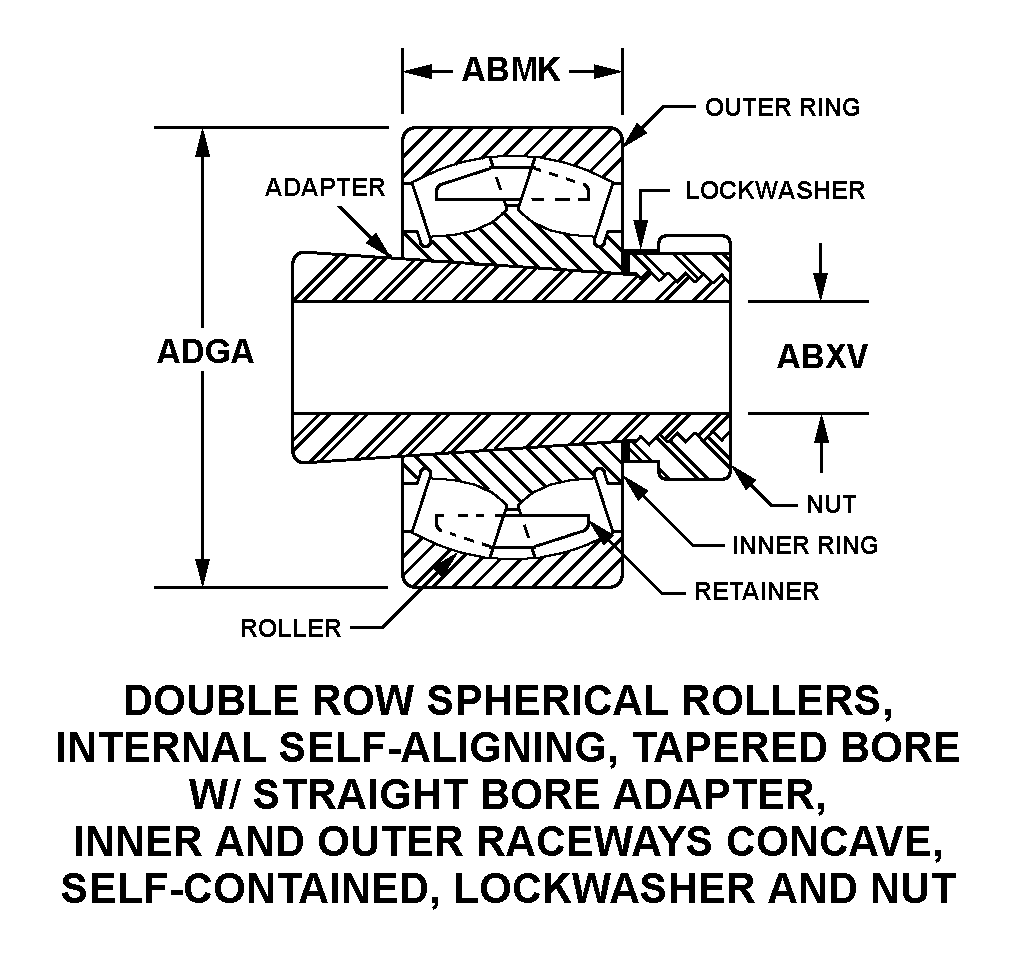

| STYLE DESIGNATOR | 298 DOUBLE ROW SPHERICAL ROLLERS, INTERNAL SELF-ALIGNING, TAPERED BORE WITH STRAIGHT BORE ADAPTER, INNER AND OUTER RACEWAYS CONCAVE, SELF-CONTAINED, LOCKWASHER AND NUT |
| OVERALL WIDTH | 64.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 4.4375 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 230.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN OD OF OUTER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-763-1527
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-763-1527
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
