NSN 3110-00-772-1057 7721057, 00-772-1057, 007721057
Product Details | BEARING RETAINING PLATE
3110-00-772-1057 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 7721057, 3110-00-772-1057, 00-772-1057, 3110007721057, 007721057
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-772-1057 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-00-772-1057
Cross Reference | NSN 3110-00-772-1057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7721057 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-772-1057
Technical Data | NSN 3110-00-772-1057
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 9.813 INCHES NOMINAL |
| CORNER RADIUS | 0.125 INCHES NOMINAL |

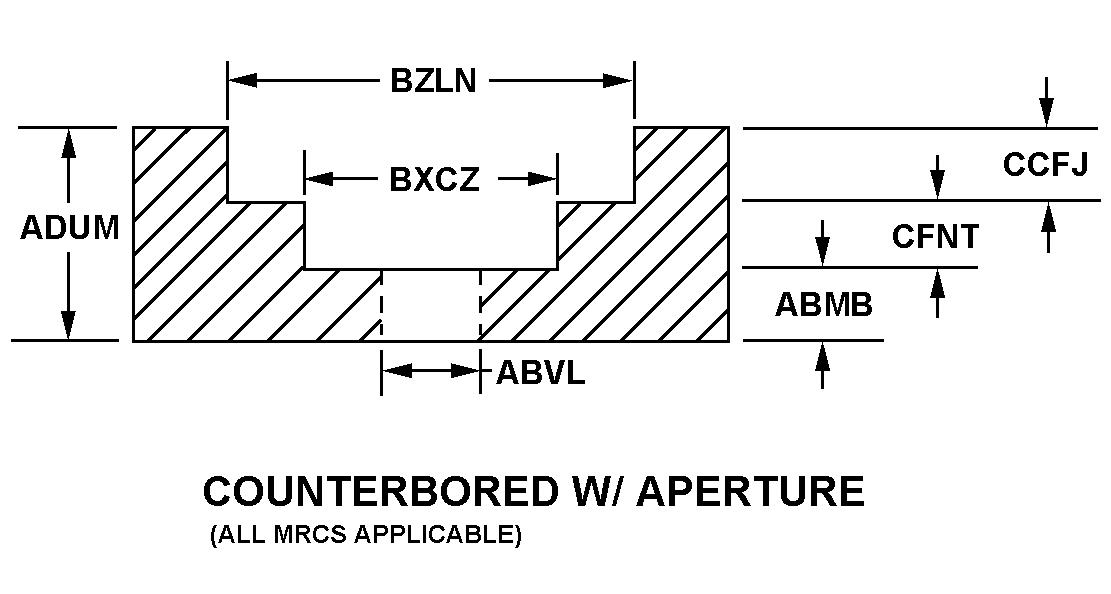

| CROSS-SECTIONAL SHAPE STYLE | C10A COUNTERBORED WITH APERTURE |
| MINOR THICKNESS | 0.625 INCHES NOMINAL |
| APERTURE DIAMETER | 4.501 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 7.250 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.125 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 7.874 INCHES NOMINAL |
| RAISED SURFACE HEIGHT | 0.301 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.531 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 8 |
| MOUNTING BOLT CIRCLE DIAMETER | 8.813 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 7721057 |
Restrictions/Controls & Freight Information | NSN 3110-00-772-1057
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
