NSN 3110-00-816-5910 Q0L00DTL1A, Q0L00DTL1E, Q0L00DTLIE
Product Details | DUPLEX BALL BEARING
3110-00-816-5910 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Part Alternates: Q0L00DTL1A, Q0L00DTL1E, Q0L00DTLIE, 41318002B1A, 4131800-2B1A, 100KRDTBAKE41318002B1A, 100KRDTBAKE4131800-2B1A, 3110-00-816-5910, 00-816-5910, 3110008165910, 008165910
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-816-5910 | 30213 ( BEARING, BALL, DUPLEX ) |

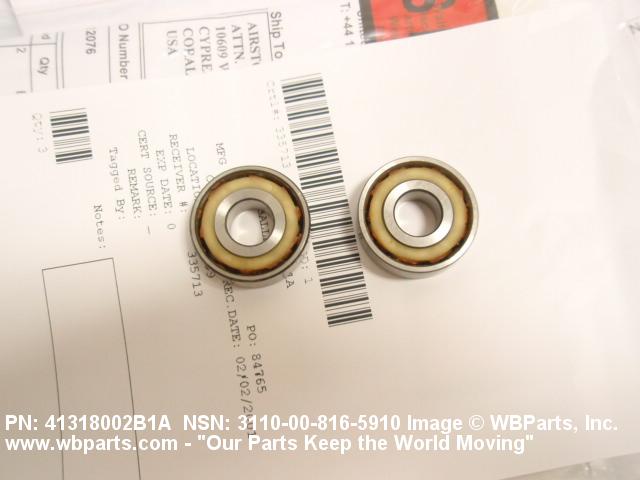

Drawings & Photos | NSN 3110-00-816-5910
Demand History | NSN 3110-00-816-5910
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-816-5910 | 2009-07-194 | 20 | US |
| 3110-00-816-5910 | 2009-06-173 | 2 | Malaysia |
Cross Reference | NSN 3110-00-816-5910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100KRDTBAKE4131800-2B1A | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 4131800-2B1A | 81039 | WHIPPANY ACTUATION SYSTEMS LLC |
| Q0L00DTL1A | 24617 | GENERAL MOTORS CORP |
| Q0L00DTL1A | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Q0L00DTL1A | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| Q0L00DTL1E | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Q0L00DTLIE | 24617 | GENERAL MOTORS CORP |
| Q0L00DTLIE | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Q0L00DTLIE | 5S670 | BAKER & ASSOCIATES, INC. |
| Q0L00DTLIE | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-816-5910
Related Products | NSN 3110-00-816-5910
Technical Data | NSN 3110-00-816-5910
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC PHENOLIC RETAINER |
| STYLE DESIGNATOR | 90A UNIVERSAL GROUND FACES, COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 8.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 10.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 26.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| BEARING PRELOAD DESIGNATION | LIGHT |
| SPECIAL FEATURES | PAIR OF BEARING |
Restrictions/Controls & Freight Information | NSN 3110-00-816-5910
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-816-5910
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PR : Pair |
