NSN 3110-00-821-0583 134808, 00-821-0583, 008210583
Product Details | ROD END BALL BEARING
3110-00-821-0583 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: 134808, 3110-00-821-0583, 00-821-0583, 3110008210583, 008210583
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-821-0583 | 00049 ( BEARING, BALL, ROD END ) |

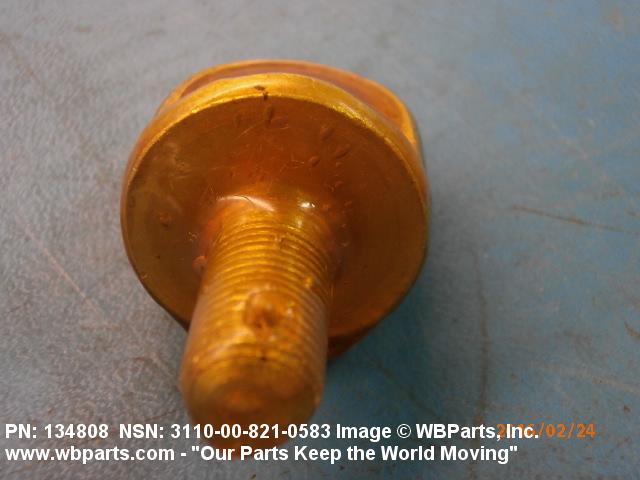

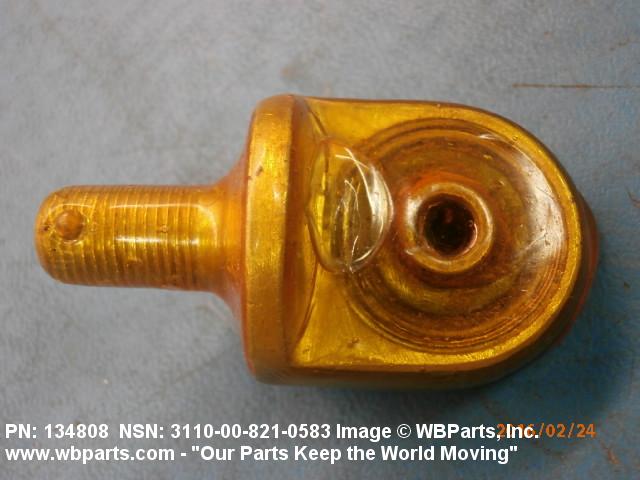

Drawings & Photos | NSN 3110-00-821-0583
Demand History | NSN 3110-00-821-0583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-821-0583 | 2022-08-221 | 5 | US |
| 134808 | 2016-06-182 | 4 | Thailand |
| 134808 | 2016-06-182 | 60 | Thailand |
| 134808 | 2016-06-181 | 2 | Thailand |
| 134808 | 2016-06-181 | 4 | Thailand |
| 3110-00-821-0583 | 2016-06-181 | 4 | MANUAL |
| 134808 | 2016-02-41 | 6 | Australia |
| 3110-00-821-0583 | 2016-01-31 | 6 | Australia |
| 3110-00-821-0583 | 2015-12-349 | 6 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-821-0583
Related Products | NSN 3110-00-821-0583
Technical Data | NSN 3110-00-821-0583
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

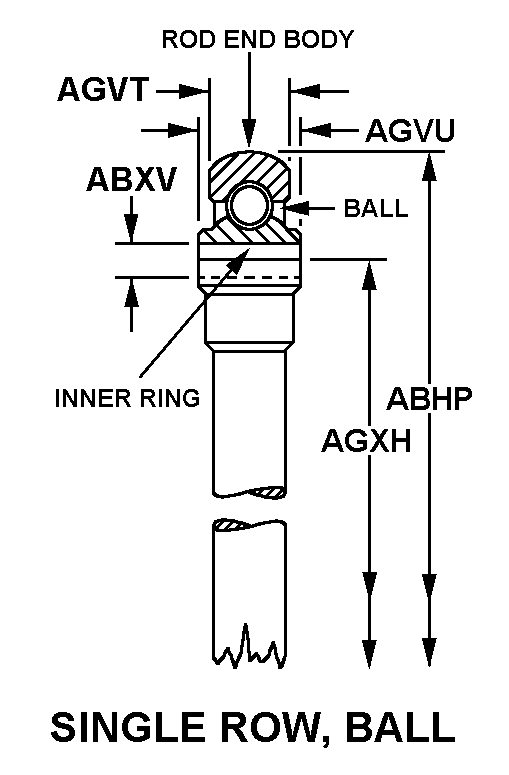

| STYLE DESIGNATOR | 460 SINGLE ROW, BALL |
| OVERALL LENGTH | 2.1250 INCHES NOMINAL |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3350 INCHES NOMINAL |
| INNER RING WIDTH | 0.4840 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.5625 INCHES NOMINAL |

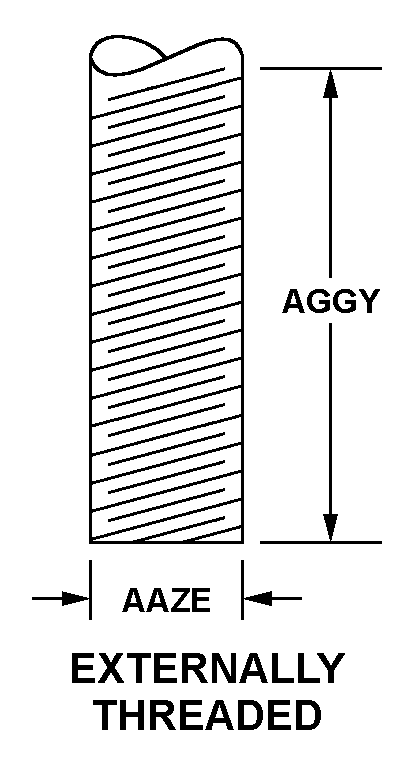

| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.6250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 134808 |
Restrictions/Controls & Freight Information | NSN 3110-00-821-0583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-821-0583
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
