Product Details | BEARING RETAINING PLATE
3110-00-868-1796 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 521934, 3110-00-868-1796, 00-868-1796, 3110008681796, 008681796
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1960 | 00-868-1796 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-00-868-1796
Cross Reference | NSN 3110-00-868-1796
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-868-1796
Technical Data | NSN 3110-00-868-1796
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 ROUND |

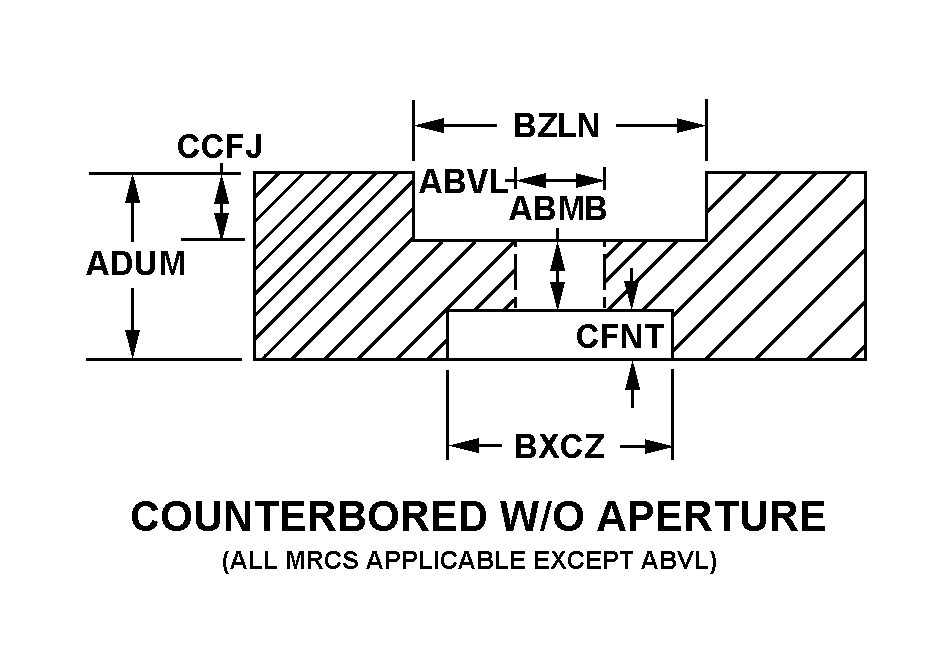

| CROSS-SECTIONAL SHAPE STYLE | C18B COUNTERBORED WITHOUT APERTURE |
