NSN 3110-00-876-4392 FFB185, Z5667LWR, Z5667-LWR
Product Details | SELF-ALIGNING ROLLER BEARING
3110-00-876-4392 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Part Alternates: FFB185, Z5667LWR, Z5667-LWR, 230/670YMBW33W45, 230670C2W33, 230-670-C2-W33, 230670YMBW33W45, 670SD30W45F1, 3110-00-876-4392, 00-876-4392, 3110008764392, 008764392
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-876-4392 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
Drawings & Photos | NSN 3110-00-876-4392
Cross Reference | NSN 3110-00-876-4392
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-876-4392
Technical Data | NSN 3110-00-876-4392
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL LOADING GROOVE SIDE COPPER ALLOY OR ALUMINUM ALLOY RETAINER STEEL ROLLER |

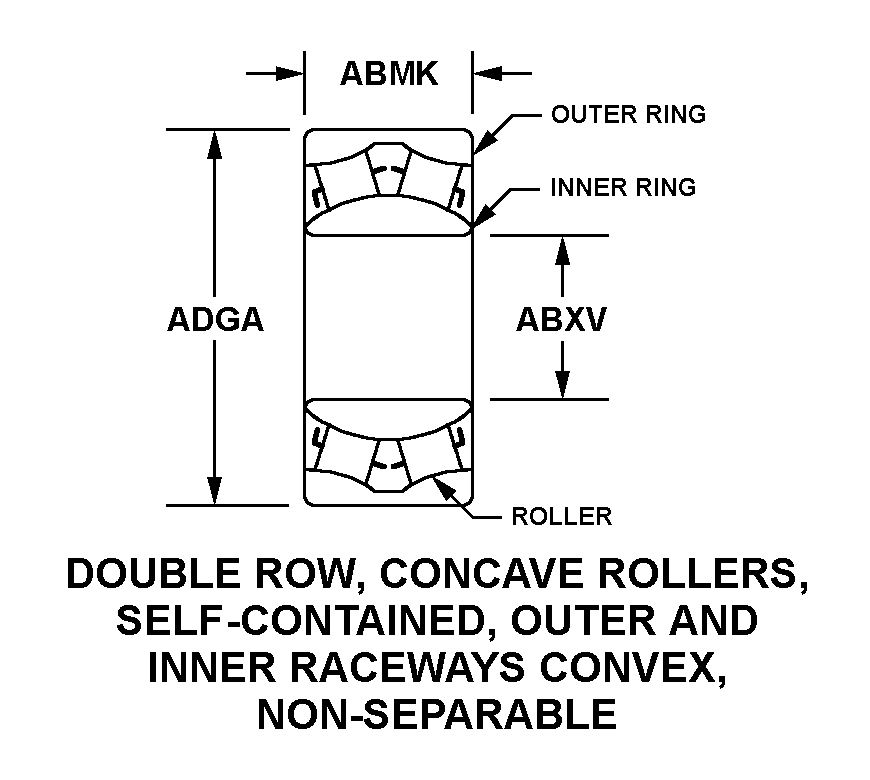

| STYLE DESIGNATOR | 328 DOUBLE ROW, CONCAVE ROLLERS, ROLLER SELF-CONTAINED, OUTER AND INNER RACEWAYS CONVEX, NON-SEPARABLE |
| OVERALL WIDTH | 230.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 670.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 980.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| INTERNAL CLEARANCE | 0.0079 INCHES MINIMUM RADIAL AND 0.0110 INCHES MAXIMUM RADIAL |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | TWO 3/4-10X1 1/4 IN. DEEP TAPPED HOLES EQUALLY SPACED ON A 37 1/4 IN. BOLT CIRCLE ON OUTER RING FACE,THREE 1/2-13X1 1/8 IN. DEEP TAPPED HOLES EQUALLY SPACED ON A 36 5/8 IN. BOLT CIRCLE ON SAME OUTER RING FACE |
| NONDEFINITIVE SPEC/STD DATA | 6 CLASS AND 264 TYPE AND 00 GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFB185 |
Restrictions/Controls & Freight Information | NSN 3110-00-876-4392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-876-4392
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
